48 Chapter 5: Using the Web-based Utility for Configuration
Logs Tab - Event Log
16- or 24-Port 10/100/1000 Gigabit Switch with WebView
Log Time. Displayed here are the date and time at which the log was generated.
Severity. This is the severity level of the log.
Description. Displayed here is the log message text.
Click the Clear Logs button to clear the logs on this screen.
Logs Tab - Event Log
The Event Log screen shows information about all system logs that are saved in RAM. These logs are listed in
chronological order.
(log number). This is the number of the log entry in the Event Log.
Log Index. This is the log number.
Log Time. Displayed here are the date and time at which the log was generated.
Severity. This is the severity level of the log.
Description. Displayed here is the log message text.
Click the Clear Logs button to clear the logs on this screen.
Logs Tab - Global Parameters
The Global Parameters screen lets you define which events are recorded by which logs. You can enable logs for
the Switch and define specific logs.
Logging. If you want the Switch to keep logs, select Enable. Otherwise, select Disable.
Attribute. Displayed here is Max RAM Log Entries (20-400). This stands for the maximum number of log entries
held in RAM. The minimum number is 20, and the maximum number is 400.
Current. Displayed here is the current maximum number of log entries.
After Reset. Enter the maximum number of log entries you want to allow. After you save this change, you will
need to reset the Switch so the change will take effect.
Severity. This is a list of severity levels, in order of severity from highest (Emergency) to lowest (Debug).

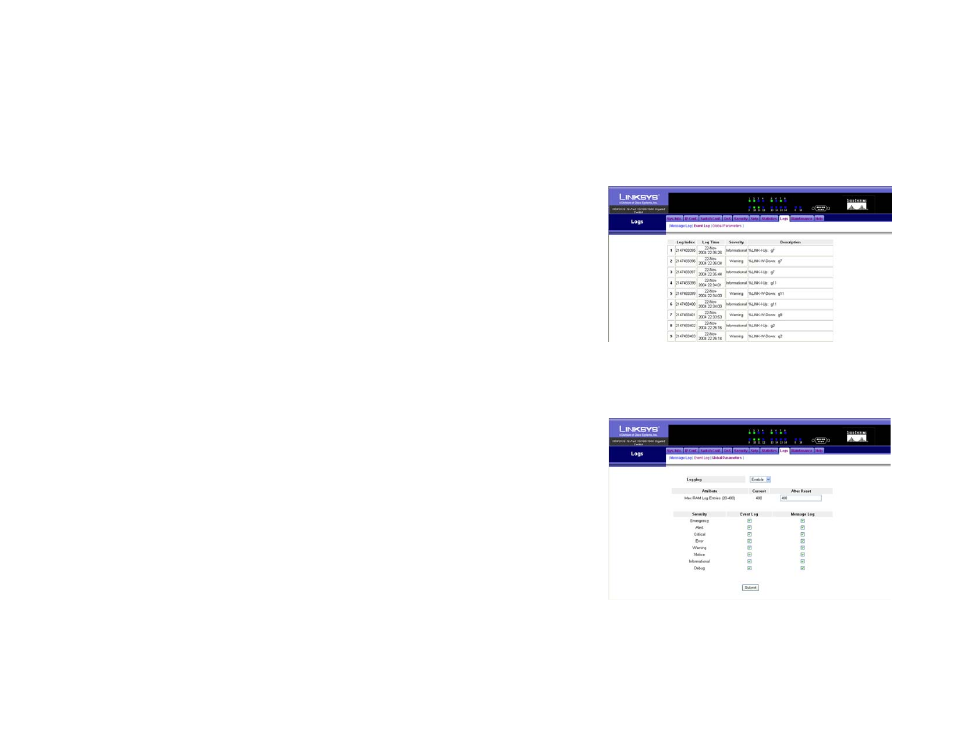

Figure 5-55: Logs - Event Log
Figure 5-56: Logs - Global Parameters
