Linksys SRW2016 User Manual
Page 23
14
Chapter 4: Using the Console Interface for Configuration
Configuring the Switch through the Console Interface
16- or 24-Port 10/100/1000 Gigabit Switch with WebView
HTTP
The HTTP screen displays the status and port number of the HTTP Server.
Select Edit to make changes. When your changes are complete, press the Esc key to return to the Action menu,
and select Save to save your changes.
Network Configuration
The Network Configuration screen offers a choice of two tests, Ping and TraceRoute.

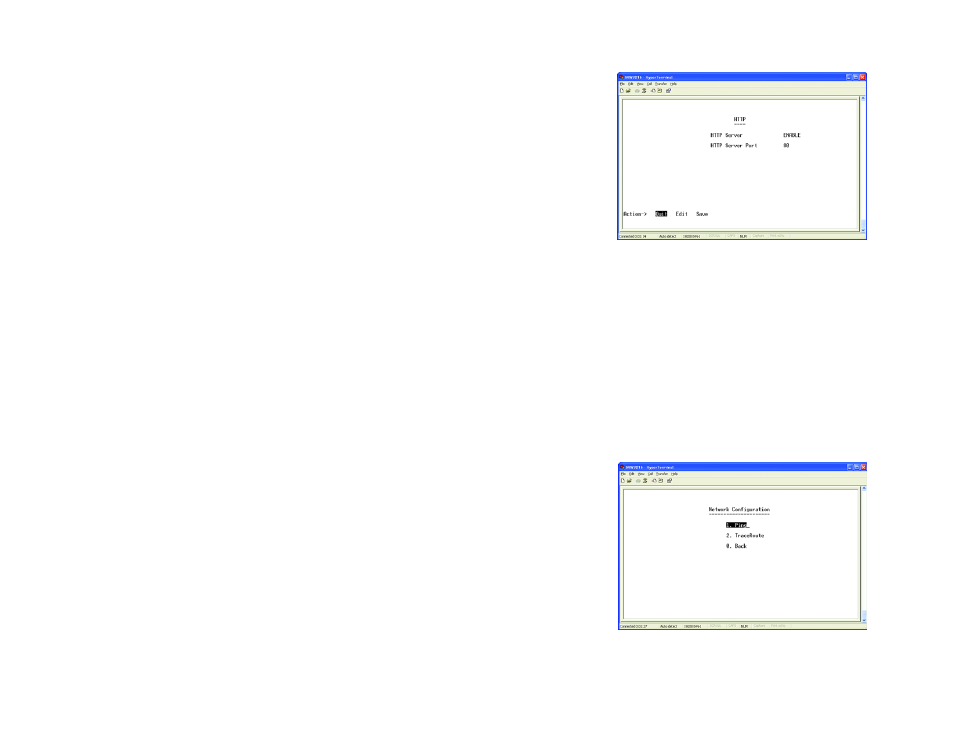

Figure 4-15: HTTP
Figure 4-16: Network Configuration
