Life Fitness G4 User Manual
Page 22
S
TEP
19:
• Screw the threaded end of the GUIDE CABLE (AO) into the end of the FLOATING PULLEY
BRACKET (Z). Secure the CABLE GUIDE (23) in place with the JAM NUT on the GUIDE CABLE.
See FIGURE 19.
• Route the GUIDE CABLE (AO) around one 3-1/2” PULLEY (35) and assemble the PULLEY to the
FLOATING PULLEY PLATES (AB) using one 3/8 X 1-3/4” BOLT (11) and one 3/8” SILVER LOCK
NUT (19). See FIGURE 19. (Note: Make sure the cable runs in the grooves of the pulleys.)
• Route the hook end of the GUIDE CABLE (AO) thru the CABLE GUIDE (23) then the GUIDE
CABLE (AO) to the BASE using one 3/8 X 3-3/4” BOLT (6), one 3/8” WASHER (18) and one 3/8”
SILVER LOCK NUT (19) as shown in FIGURE 19.
21

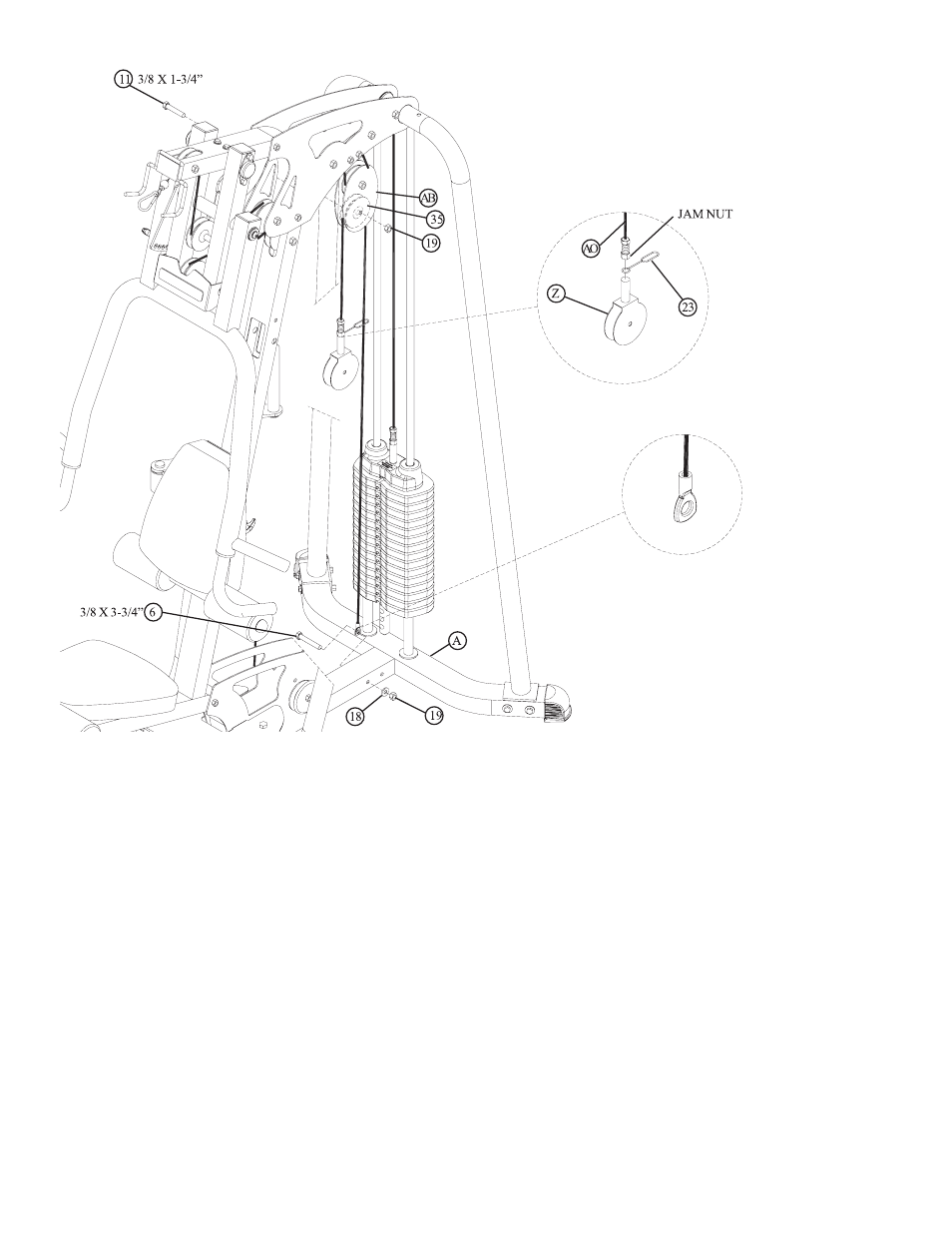

F
IGURE
19
