13
S
TEP
10:

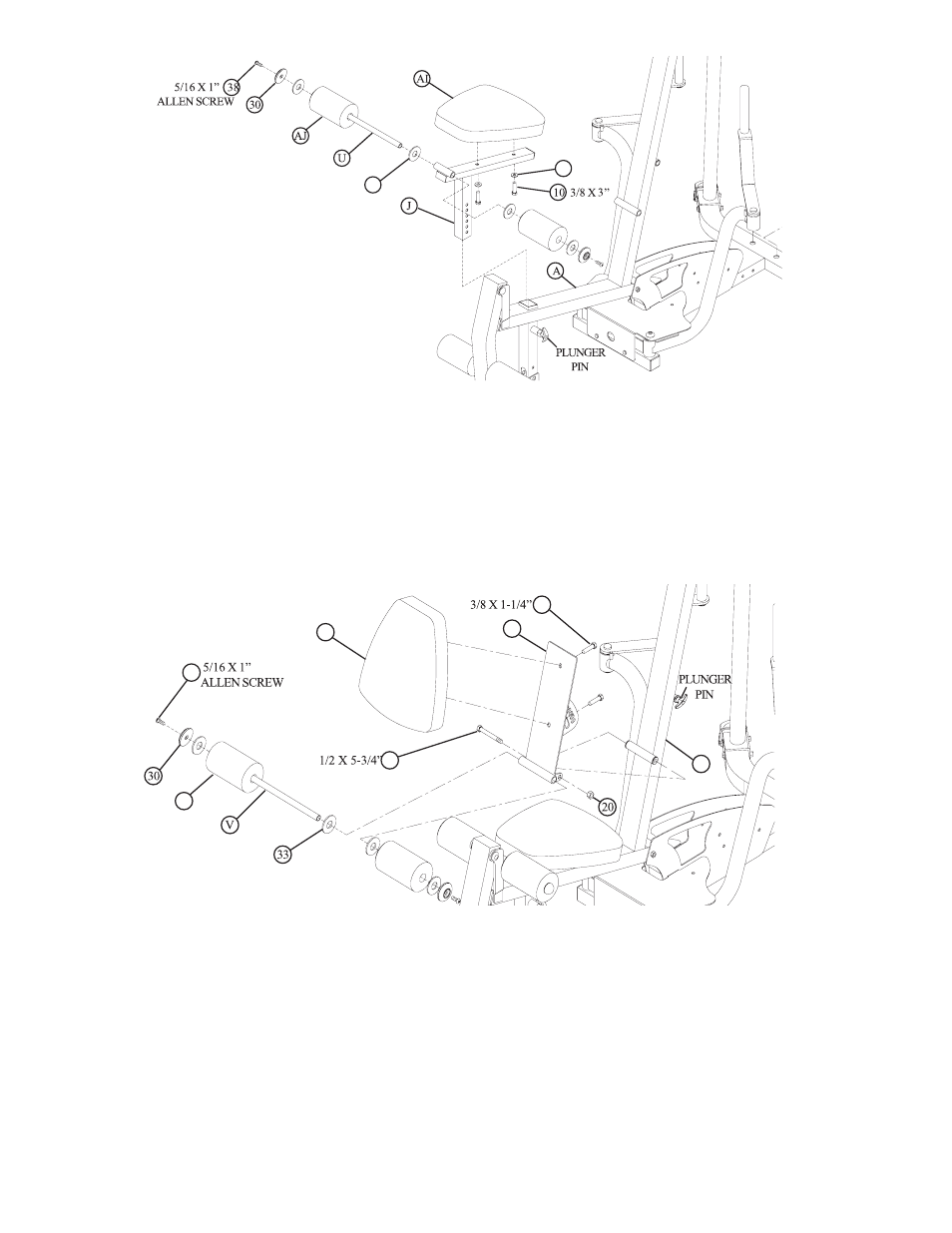

• SECURELY assemble the SEAT PAD (AI) to the SEAT ADJUST (J) using two 3/8 X 3” SILVER BOLTS (10) and two
3/8” WASHERS (18).
• Assemble two ROLLER PADS (AJ) to the SEAT ADJUST (J) using one 3/4 X 18-3/8” TUBE (U), four PLASTIC
WASHERS (33), two ROLLER PAD CAPS (30), and two 5/16 X 1” ALLEN SCREWS (38) as shown in FIGURE 10.
• CAREFULLY insert the SEAT ADJUST ASSEMBLY into the FRAME (A) as shown. The SEAT height can be adjusted
using the PLUNGER PIN.
S
TEP
11:
• SECURELY assemble the BACK PAD (AR) to the BACK INCLINE ADJUST (W) using two 3/8 X 1-1/4” BOLTS (12).
• SECURELY assemble the BACK INCLINE ADJUST (W) to the FRAME (A) using one 1/2 X 5-3/4” BOLT (1) and one
1/2” LOCK NUT (20). The BACK PAD angle can be adjusted using the PLUNGER. (Note: Tighten this connection
enough to remove excess play yet allow the BACK INCLINE ADJUST to rotate freely.)
• Assemble two ROLLER PADS (AJ) to the BACK INCLINE ADJUST (W) using one 3/4 X 21” TUBE (V), four PLAS-
TIC WASHERS (33), two ROLLER PAD CAPS (30), and two 5/16 X 1” ALLEN SCREWS (38) as shown in FIGURE
11.
18
33
F
IGURE
10
A
12
W
1
AR
38
AJ
F IGURE 11
