14
S
TEP
12:
• Disassemble one of the BEARING BLOCKS from the PRESS ARM SUPPORT FRAME (X) and
remove the PRESS ARM SUPPORT PIVOT as shown in FIGURE 12.
• Insert the PRESS ARM SUPPORT PIVOT thru the PRESS ARM SUPPORT FRAME (X) and the
FRAME (A). Assemble the BEARING BLOCKS to the PRESS ARM SUPPORT FRAME (X) as
shown in FIGURE 12.
• SECURELY tighten the two 5/16 X 1/4” SET SCREWS (PRE-INSTALLED) on the FRAME (A) as
shown in FIGURE 12.
• SECURELY assemble the PRESS ARM ADJUSTMENT PLATE (Y) to the PRESS ARM SUP-
PORT FRAME (X) using two 3/8 X 1” FLAT HEAD ALLEN BOLTS (16) as shown in FIGURE 12.

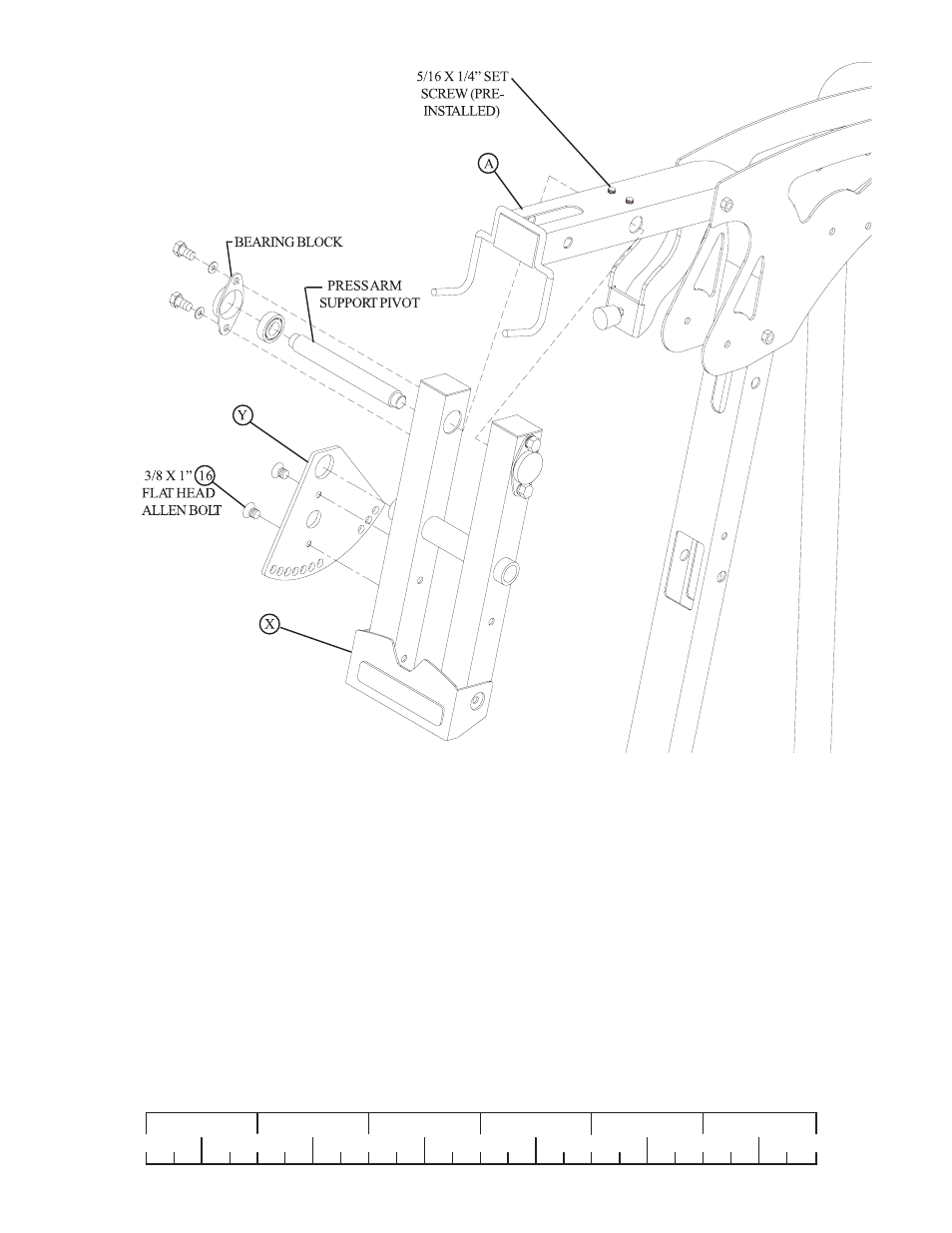

F
IGURE
12
0 1 2 3 4 5 6
1/2 1/2 1/2 1/2 1/2 1/2
