Life Fitness G4 User Manual
Page 21
S
TEP
18:
•

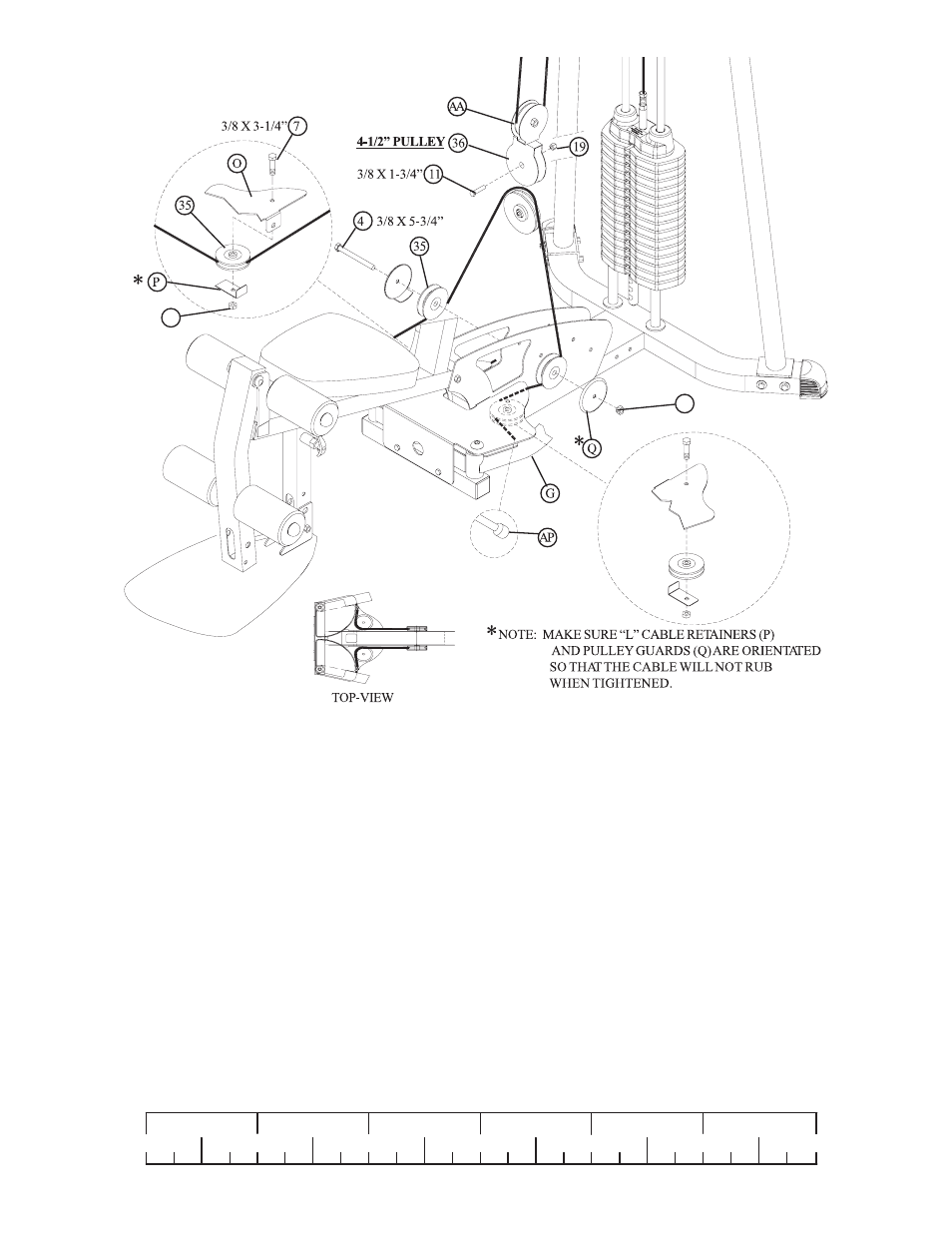

Securely assemble the PEC FLY CABLE (AP) to the LEFT PEC ARM (F) as shown in FIGURE 18.
•
Assemble one 3-1/2” PULLEY (35) to the PEC PLATE (O) using one 3/8 X 3-1/4” BOLT (7), one “L” CABLE RETAIN-
ER (P) and one 3/8” SILVER LOCK NUT (19). See FIGURE 18. (Note: Loop the PEC FLY CABLE (AP) around the
PULLEY prior to assembling the PULLEY to the PEC PLATE.)
•
Assemble two 3-1/2” PULLEYS (35) to the BASE PLATES (C) using one 3/8 X 5-3/4” BOLT (4), two PULLEY
GUARDS (Q) and one 3/8” SILVER LOCK NUT (19). See FIGURE 18. (Note: Loop the PEC FLY CABLE (AP)
around the PULLEY prior to assembling the PULLEY to the PEC PLATE.)
•
Route the PEC FLY CABLE (AP) around one 4-1/2” PULLEY (36) and assemble the 4-1/2” PULLEY (36) to the DOU-
BLE FLOATING PULLEY BRACKET ASSEMBLY (AA) using one 3/8” X 1-3/4” BOLT (11) and one 3/8” SILVER LOCK
NUT (19). See FIGURE 18.
•
Assemble one 3-1/2” PULLEY (35) to the PEC PLATE (O) using one 3/8 X 3-1/4” BOLT (7), one “L” CABLE RETAIN-
ER (P) and one 3/8” SILVER LOCK NUT (19). See FIGURE 18. (Note: Loop the PEC FLY CABLE (AP) around the
PULLEY prior to assembling the PULLEY to the PEC PLATE.)
•
Securely assemble the PEC FLY CABLE (AP) to the RIGHT PEC ARM (G) as shown in FIGURE 18.
20
19
19
F
IGURE
18
0
1
2
3
4
5
6
1/2
1/2
1/2
1/2
1/2
1/2
