Fig 8-3: connection of epo push button – Liebert 130 kVA User Manual
Page 86
User Manual
Hipulse - Single Phase ‘1+N’ UPS System
130 kVA - 110V
66
8.2.5
Battery Control
The system is designed to operate with separate battery configuration. Installation
procedure is same as for single module.
8.2.6
Emergency Stop
The external emergency stop facility is identical to that described for the single
modules installation – that an individual Emergency Stop button is provided for each
module.
5
6
X4
5
6
X4
Module 1
Module 2
Auxiliary
Terminal
Block
Auxiliary
Terminal
Block
EPO Push Button

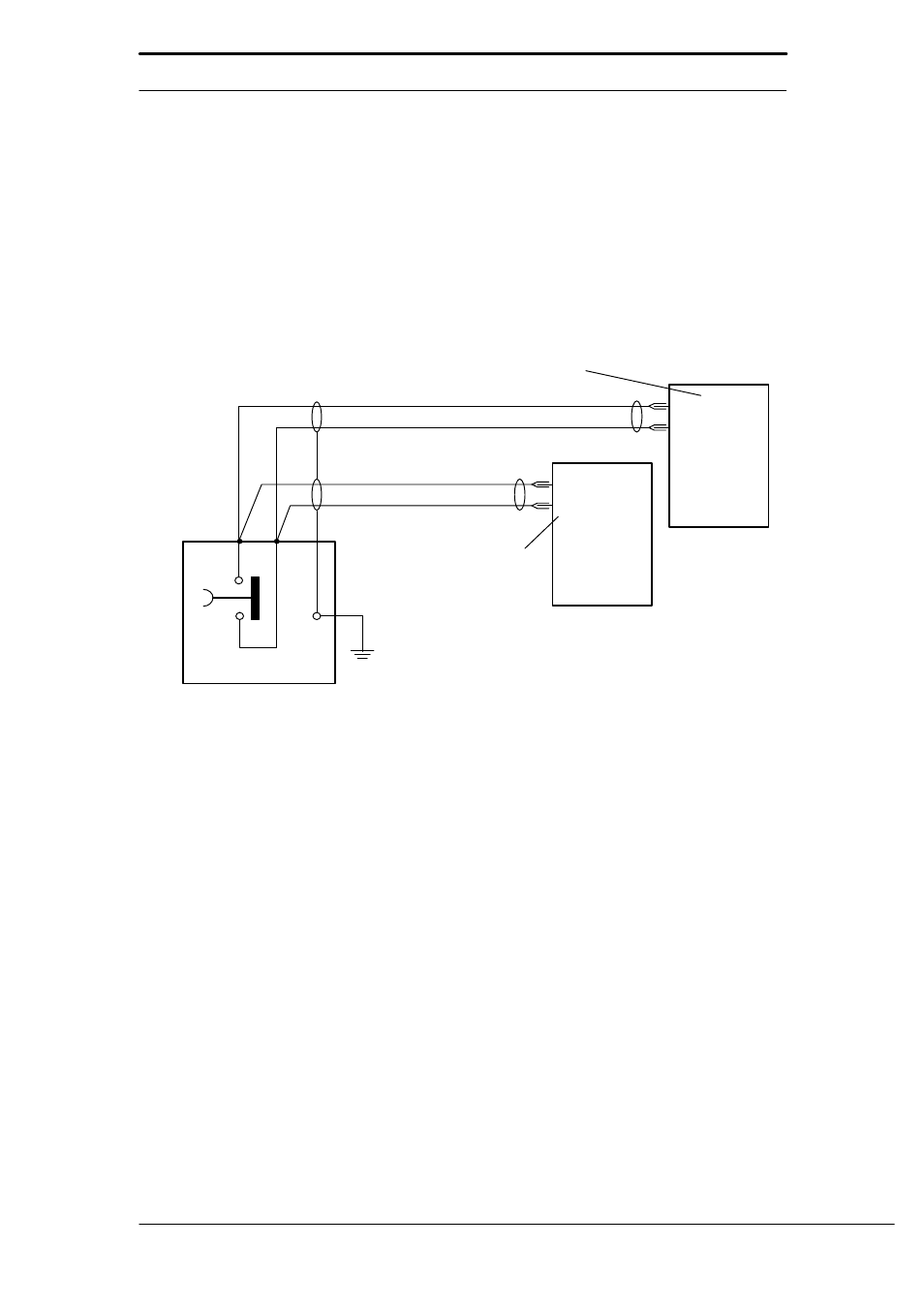

Fig 8-3: Connection of EPO Push Button
