Figure 18
4. If the kitchen cabinet is 24 in. (609.6 mm)
wide (American Style Cabinet):
a) If the kitchen cabinet is 24 in. (609.6 mm)
wide, one or two cabinet spacers, (Fig. 7, 5)
and (Fig. 7, 6), are required. These cabinet
spacers are supplied with the appliance.
b) If the upper cabinet spacer (Fig. 7, 5) does
not interfere with the top kitchen cabinet door
hinge, install it in the location shown in
Figure 7 using the screws provided
(Fig. 17, 33). Make sure the front edge of
the spacer is recessed 1/8 in. (3 mm) from
the edge of the kitchen cabinet wall.The
plastic hinge of the cabinet spacer should
face the rear wall of the cabinet.
c) All 24 in. (609.6 mm) wide cabinets
require the lower cabinet spacer
(Fig. 7, 6). Install it in the location shown in
Figure 7 using the screws provided
(Fig. 17, 33). Make sure the front edge of
the spacer is recessed 1/8 in. (3 mm) from
the edge of the kitchen cabinet wall.The
plastic hinge of the cabinet spacer should
face the rear wall of the cabinet.
d) Close the cap(s).

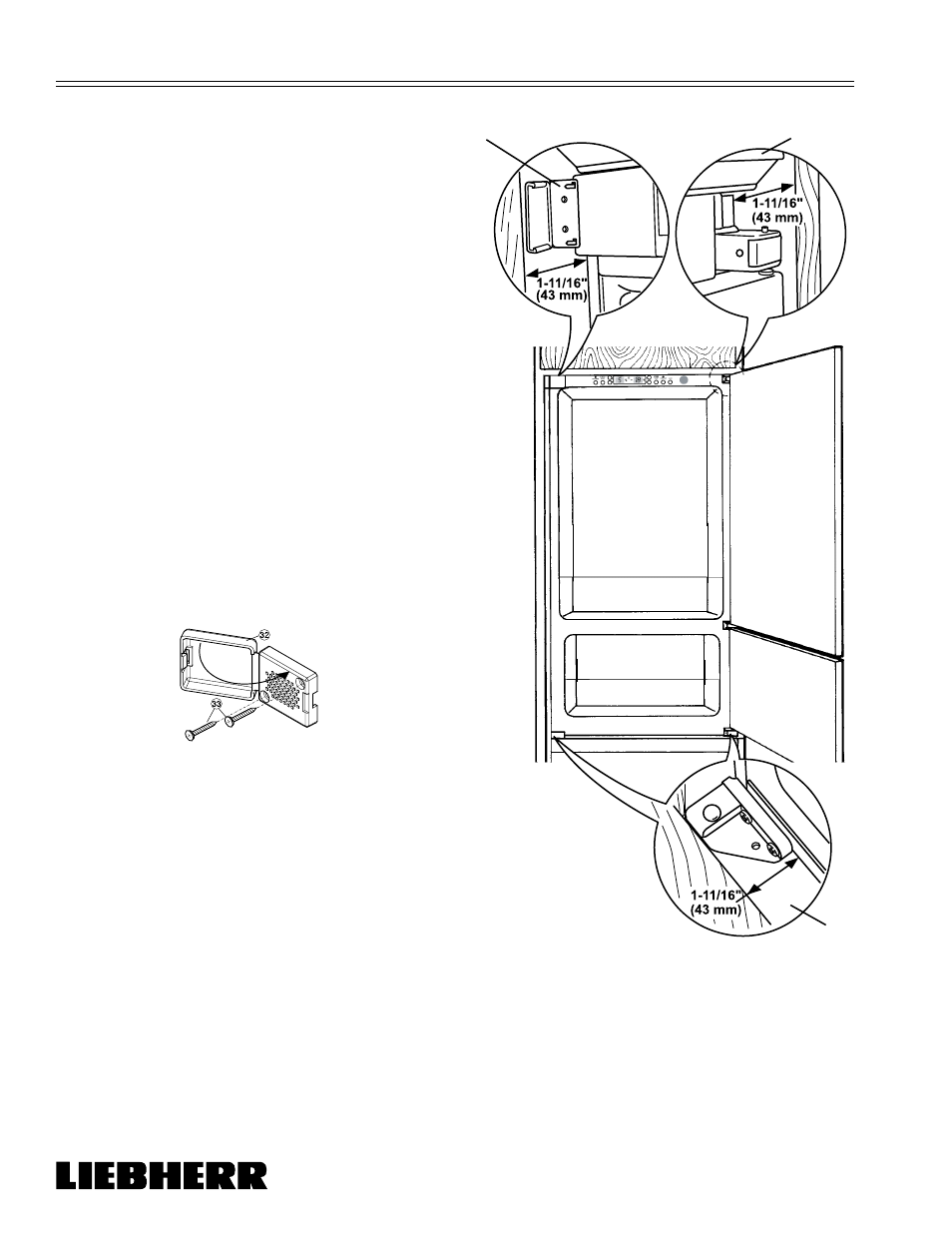

Figure 17
5. Slide the appliance into the kitchen cabinet
(Figure 18):
• Make sure the handle side of the appliance
is against the kitchen cabinet.
• Make sure the front of the bottom
bracket and front of the bottom hinge
(Fig. 18, 1) are flush with the front edge of
the kitchen cabinet.
• Align the front edge of the open top bracket
(Fig. 18, 2) so it is flush with the front edge
of the kitchen cabinet. With the top bracket
open, the distance between the front edge
of the kitchen cabinet and the appliance
housing must be 1-11/16 in. (43 mm).
• Verify the distance between the front edge of
the kitchen cabinet and the appliance on the
hinge side (Fig. 18, 3) is 1-11/16 in. (43 mm).
