S
TEP
1:
• LOOSELY assemble two BASE PLATES (3) to the FRAME (1) and BASE (2) using four
3/8 X 3-3/4” BOLTS (30) and four 3/8” LOCK NUTS (34). See FIGURE 1.
• LOOSELY assemble the FOOTPLATE (62) to the lower holes in the FRAME (1) using one
3/8 x 3” BOLT (29) and one 3/8 LOCKNUT (34)
• LOOSELY assemble the TOP of FRAME BRACE (64) to the FRAME (1) using two 3/8 x 4” BOLT
(63), two 3/8 WASHERS (36) and two 3/8 LOCKNUTS (34). Assemble BOTTOM of FRAME
BRACE (64) to FRAME (2) using one 3/8 x 3” BOLT (29), one 3/8 x 2-1/2” BOLT (28)
three 3/8 WASHERS (36) and one 3/8 LOCKNUT (34)
6
1
34
30
2
62
29
34
3
34
63
36
36
29
28
64

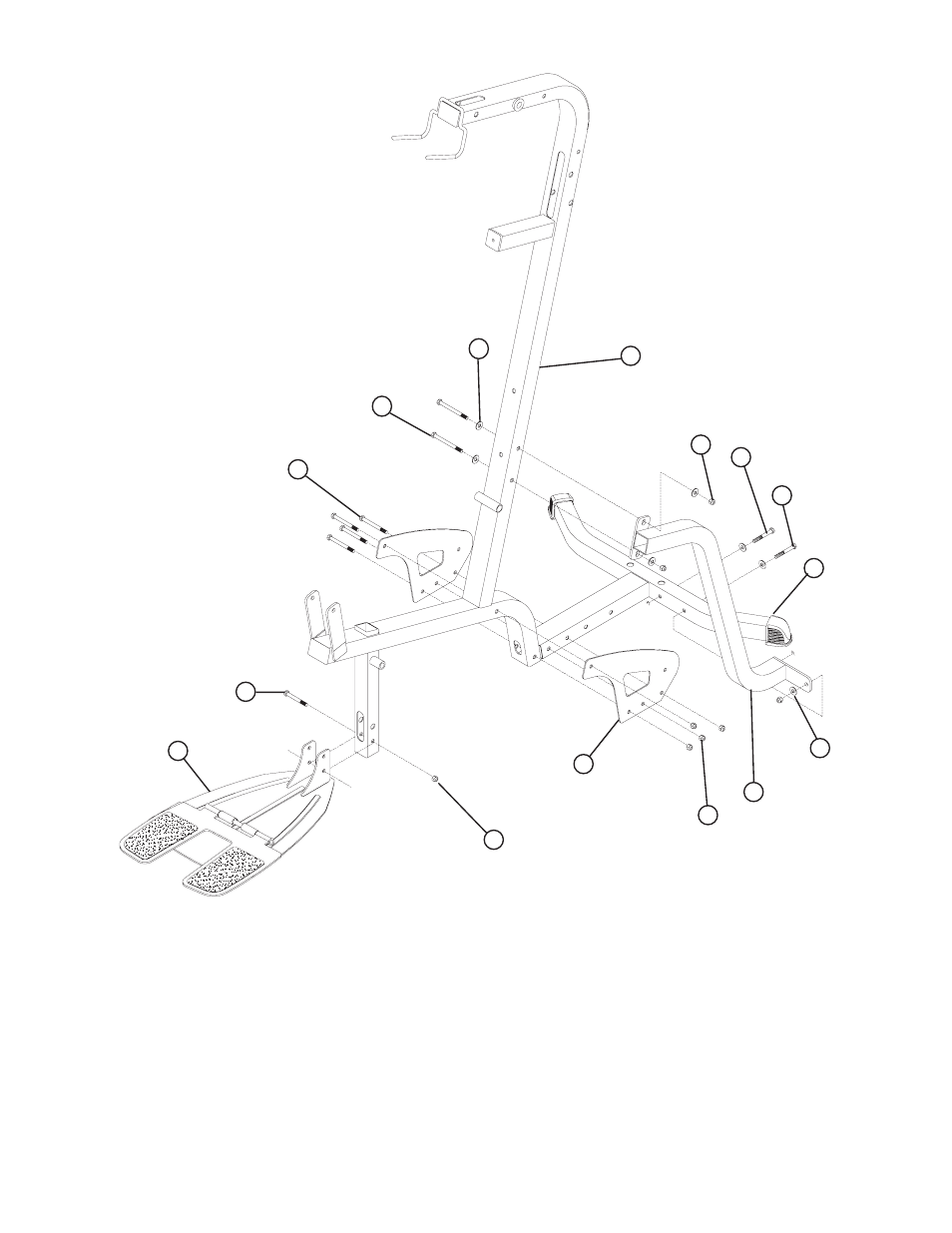

F
IGURE
1
3/8 x 4”
3/8 x 3-3/4”
3/8 x 3”
3/8 x 2-1/2”
3/8 x 3”
