S
TEP
10:

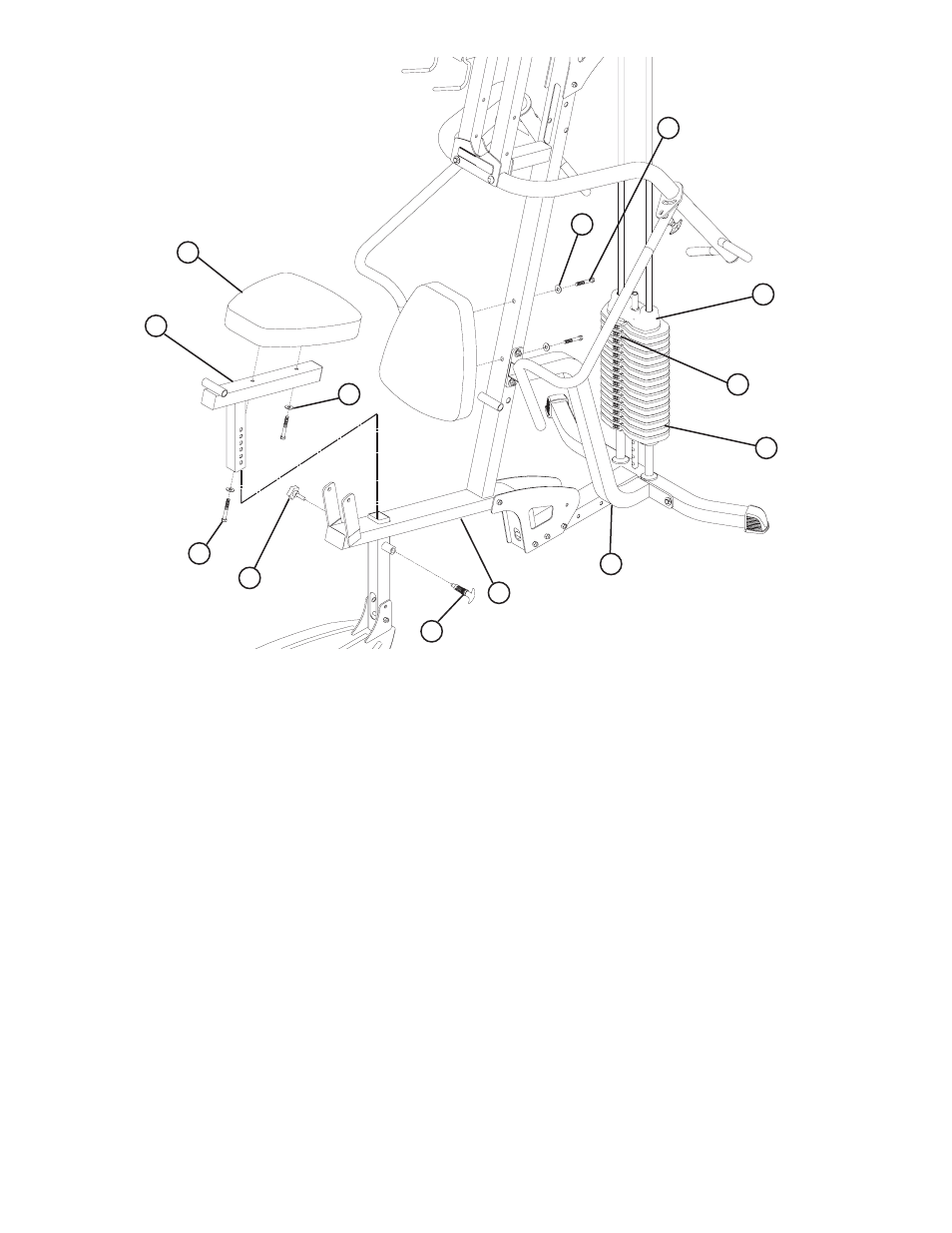

• Apply WEIGHT STACK LABELS (61) to WEIGHTS (22) and HEAD PLATE (19) as shown in
FIGURE 10. Begin with number one at the HEAD PLATE (19) with larger numbers in consecutive
order towards bottom of weight stack.
• Securely assemble one SEAT PAD (13) to the SEAT ADJUSTMENT (10) using two 3/8 X 3”
BOLTS (29) and two 3/8” WASHERS (36) as shown.
• Securely assemble one SEAT PAD (13) to the FRAME (1) using two 3/8 X 3” BOLTS (29) and two
3/8” WASHERS (36) as shown. The top connection of the FRAME BRACE (64) may have to be
loosened and then re-tightened after SEAT PAD (13) is tighten
• Gently insert SEAT ADJUSTMENT (10) into tube located on FRAME (1)
• Securely tighten the SPRING PIN (50) to the FRAME (1) and hand tighten the STAR KNOB (52).
12
1
29
36
13
52
50
10
61
19
22
64
29
36
F
IGURE
10
3/8 x 3”
3/8 x 3”
