Life Fitness GS2 - Manual (Page 18)

S
TEP
16:
• Refer to cable ILLUSTRATION “A” on page 14 for cable routing while installing pulleys.
• CABLE MUST BE POSITIONED BETWEEN PULLEY AND LOWER BOLT ASSEMBLY ON LEG
PEDESTAL (11) AND FRAME (1)
• Securely assemble the ball end of the LOW CABLE (21) and one 3-1/2” PULLEY (24) to the LEG
PEDESTAL (11) using two 3/8 X 3-3/4” BOLTS (30), two 3/8” X 1-1/16” FLANGE SPACERS (42),
two 3/8” WASHERS (36), and two 3/8” LOCKNUTS (34).
Note: The LEG CABLE (21) should be routed over the retaining bolt as shown in FIGURE 16.
• Securely assemble one 3-1/2” PULLEY (24) and two 3/8 X 3/4 FLANGE SPACERS (41) to the
FRAME (1) using one 3/8 X 3” BOLTS (29), and one 3/8” LOCKNUT (34).
Note: The LEG CABLE (21) should be routed over the retaining bolt as shown in FIGURE 16.
18
30
34
34
24
36
11
1
29
42
21
41
3/8 x 3”
3/8 x 3-3/4”

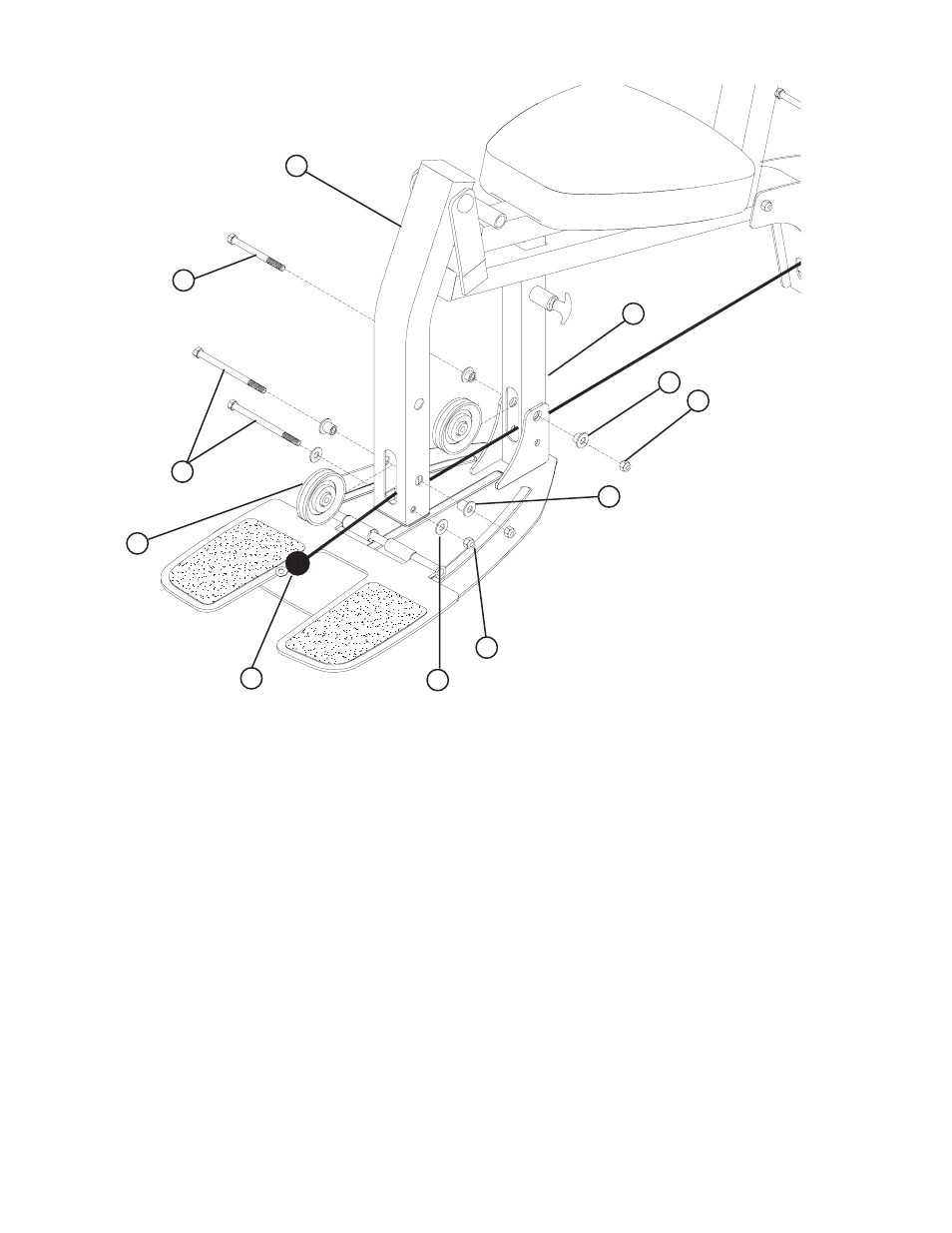

F
IGURE
16
