SDT/SET Installation & Operation Manual
11
PRESSURE
REDUCING VALVE
PRESSURE
GAUGE
BACKFLOW
PREVENTER
MAKE UP
WATER
AIR SEPARATOR
SYSTEM
SUPPLY SENSOR
TO
SYSTEM
BALL VALVE
(TYPICAL)
SYSTEM
CIRCULATOR
SYSTEN
CIRCULATOR
EXPANSION
TANK
DRAIN POINT
(TYPICAL)
UNION
(TYPICAL)
TEMPERATURE/
PRESSURE GAUGE
DRAIN
PRESSURE
RELIEF VALVE
KNIGHT
BOILER
SQUIRE
SQUIRE
SOLAR
HEAT
EXCHANGER
(TYPICAL)
DRAIN
(FILED SUPPLIED)
CHECK VALVE
(TYPICAL)
RECIRCULATION
PUMP
TO
SOLAR
FROM
SOLAR
TEMPERATURE/
PRESSURE GAUGE
(TYPICAL)
SOLAR SENSOR
CHECK VALVE
BOILER
TANK SENSOR/
AQUASTAT
TEMPERATURE/
PRESSURE
RELIEF VALVE
COLD WATER IN
ANTI-SCALD
MIXING VALVE
HOT
WATER
OUT
DOMESTIC
HOT WATER
CIRCULATOR
BOILER
CIRCULATOR
Y-STRAINER
(RECOMMENDED)
NOT TO EXCEED 4 PIPE DIA. OR
A MAXIMUM OF 12” APART
FROM SYSTEM

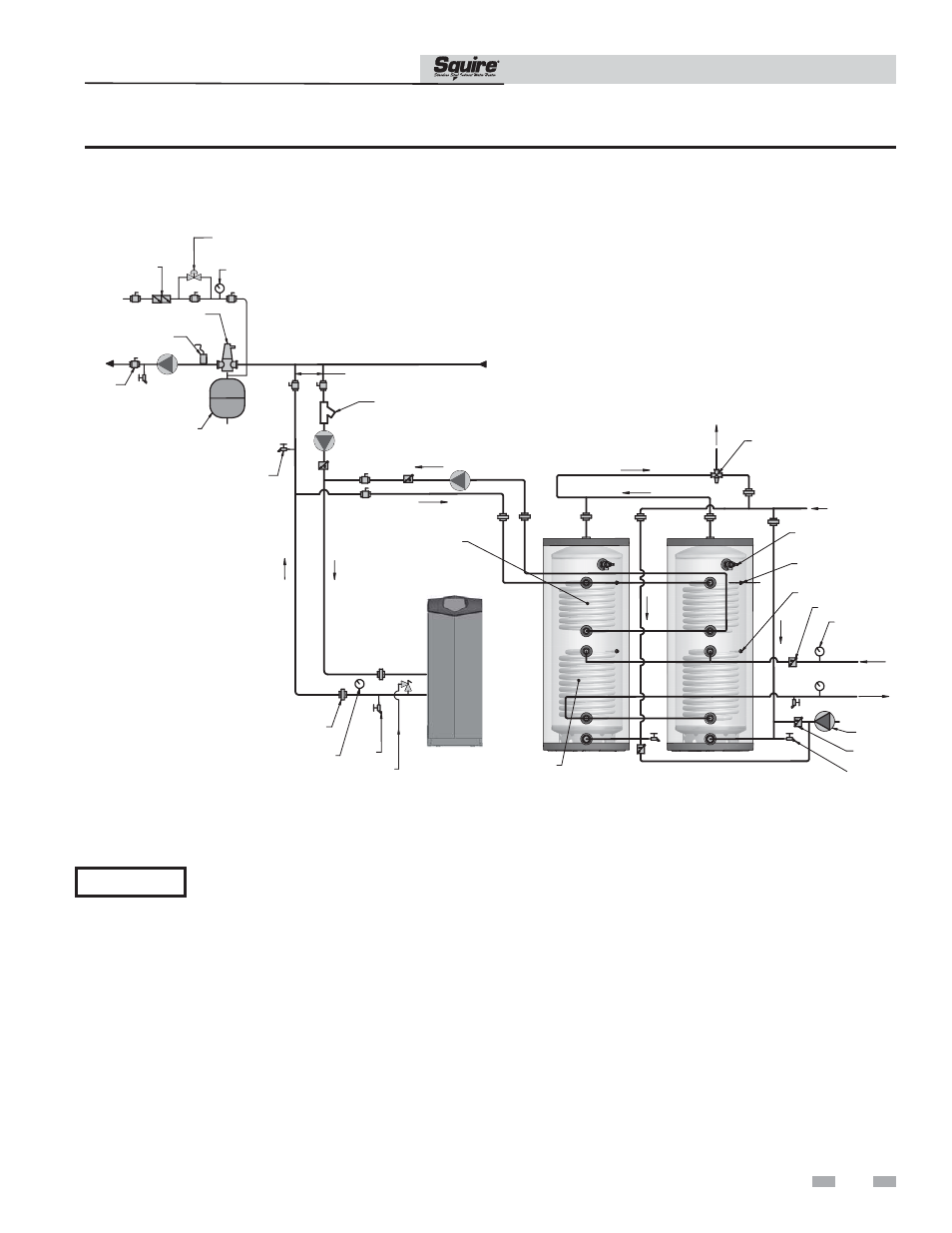

Figure 3-4 Multiple Tank Connections
Please note that these illustrations are meant to show system piping concept only, the installer is responsible
for all equipment and detailing required by local codes.
NOTICE
3
Boiler Side Piping (SDT models)
(continued)
