8
STEP 8:

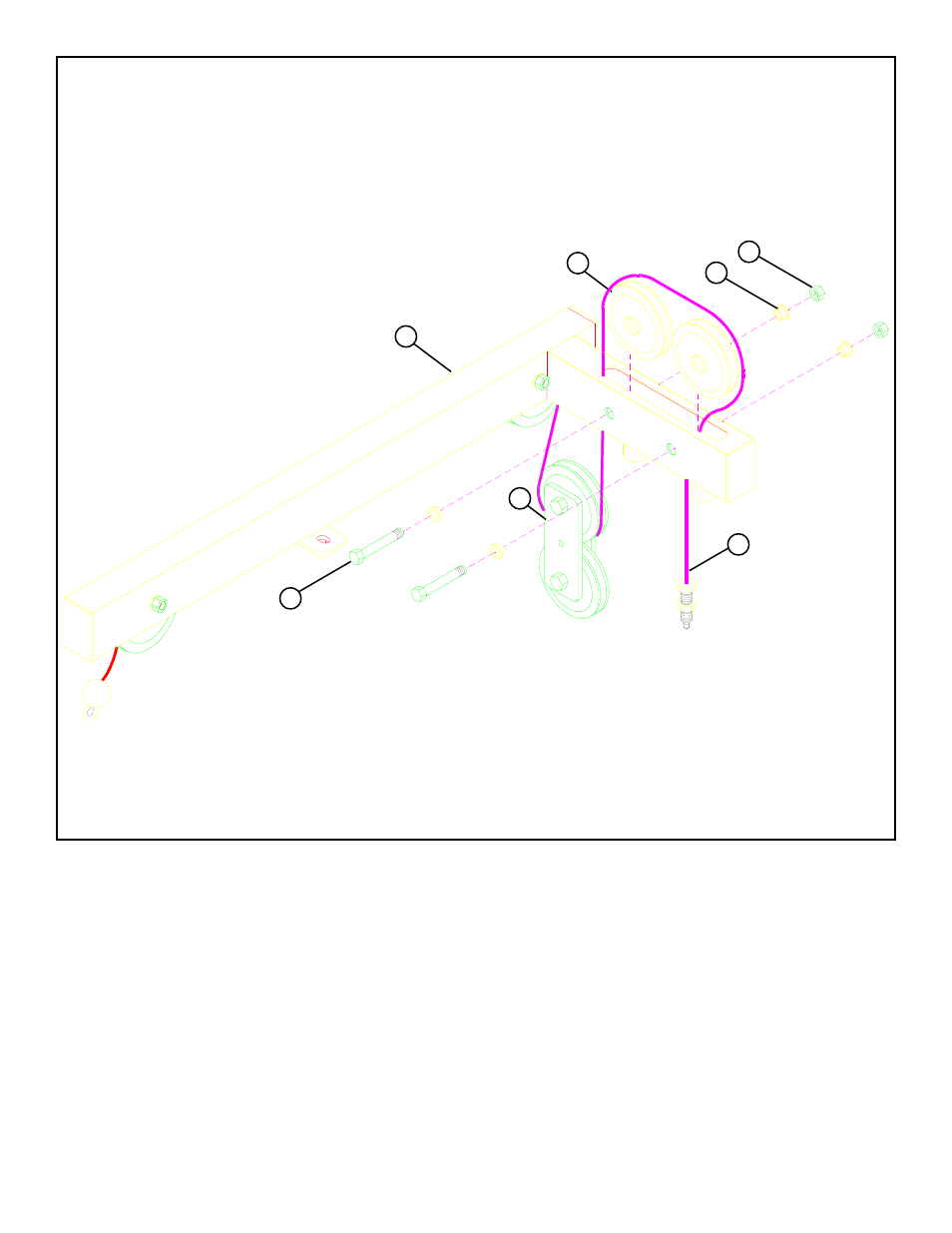

FIGURE 8
• SECURELY assemble two 3-1/2” PULLEYS (12) to the TOP BOOM (2) using two 3/8 X 2-3/4” BOLTS (25), four 3/8”
FLANGE SPACERS (33), and two 3/8” LOCK NUTS (32). See FIGURE 8. (NOTE: BEFORE TIGHTENING, MAKE SURE
CABLE (15) IS IN THE GROOVES OF THE PULLEYS.)
• Route threaded end of the LAT CABLE (15) around the one of the PULLEYS in PLATE & PULLEY ASSEMBLY (17) and
through the holes in the TOP BOOM (2) as shown in FIGURE 8.
2
17
12
15
32
33
25 3/8 X 2-3/4”
