6
• Insert four CAP PLUGS (21) into the bottom end & top end of the two GUIDE RODS (9) as shown in FIGURE 5.
STEP 5:

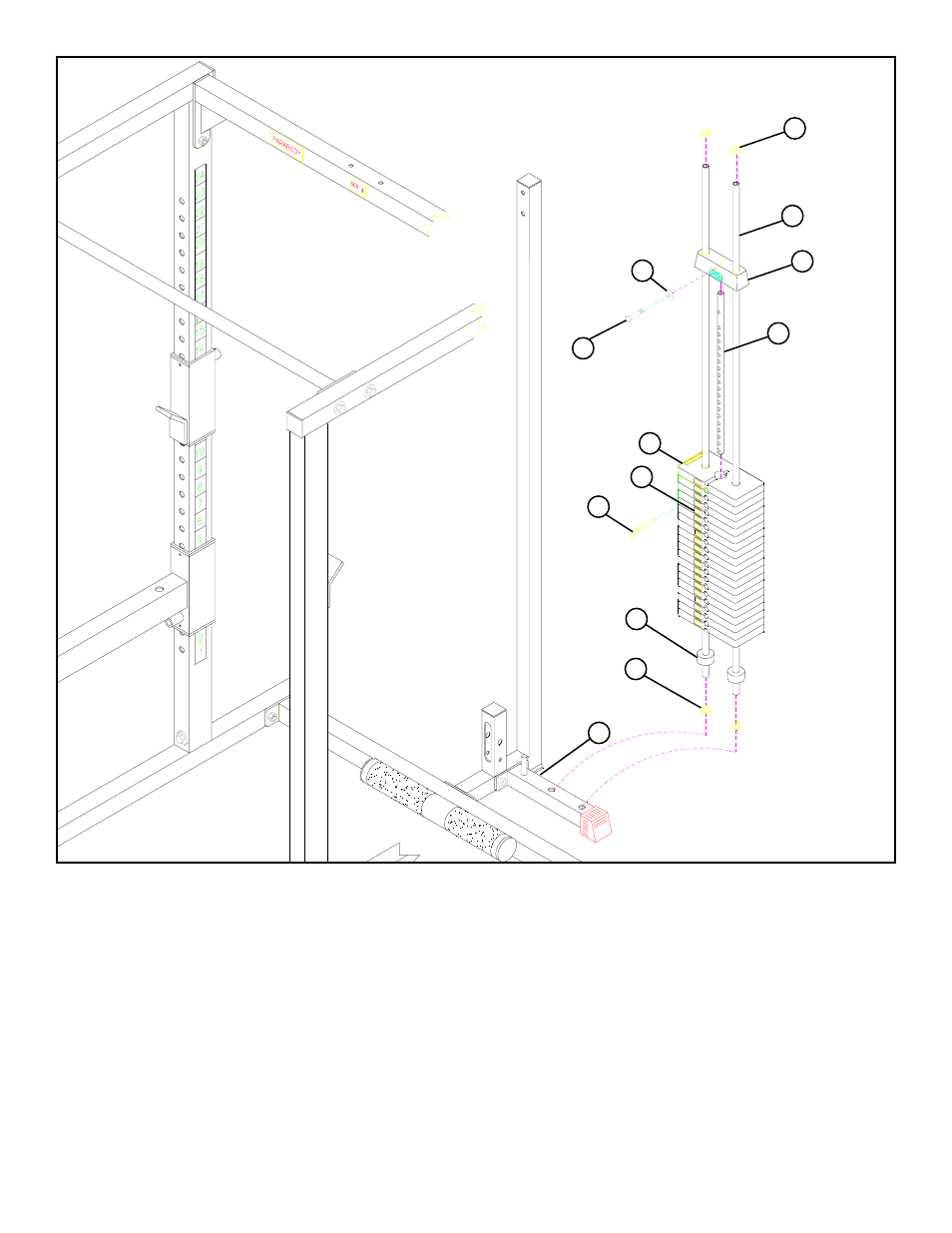

FIGURE 5
9
31
23 3/8 X 1-1/4”
13
43
10
21
7
19
14
21
• Insert two GUIDE RODS (9) into the WEIGHT STACK BASE (7) as shown on FIGURE 5. (NOTE: Lubricate GUIDE RODS
(9) with silicon or teflon spray available at most hardware stores.)
• Slide two WEIGHT STACK CUSHIONS (19) down over the GUIDE RODS (9).
• Securely assemble the WEIGHT STACK SHAFT (13) to the HEAD PLATE (14) using one 3/8 X 1-1/4” BOLT (23) and one 3/8”
WASHER (31).
• Using EXTREME CARE slide all twenty WEIGHT PLATES (43) down over the GUIDE RODS (9) on to the WEIGHT STACK
CUSHIONS (19). Make sure that the keyholes of the WEIGHT PLATES (43) are all facing the right way.
• Attach the WEIGHT STACK LABELS (10) to the WEIGHT STACK. Also insert the WEIGHT STACK SELECTOR PIN (39) into
the first WEIGHT PLATE (43) of the WEIGHT STACK.
• CAREFULLY slide the HEAD PLATE ASSEMBLY down over the GUIDE RODS (9) onto the WEIGHT STACK.
39
