4

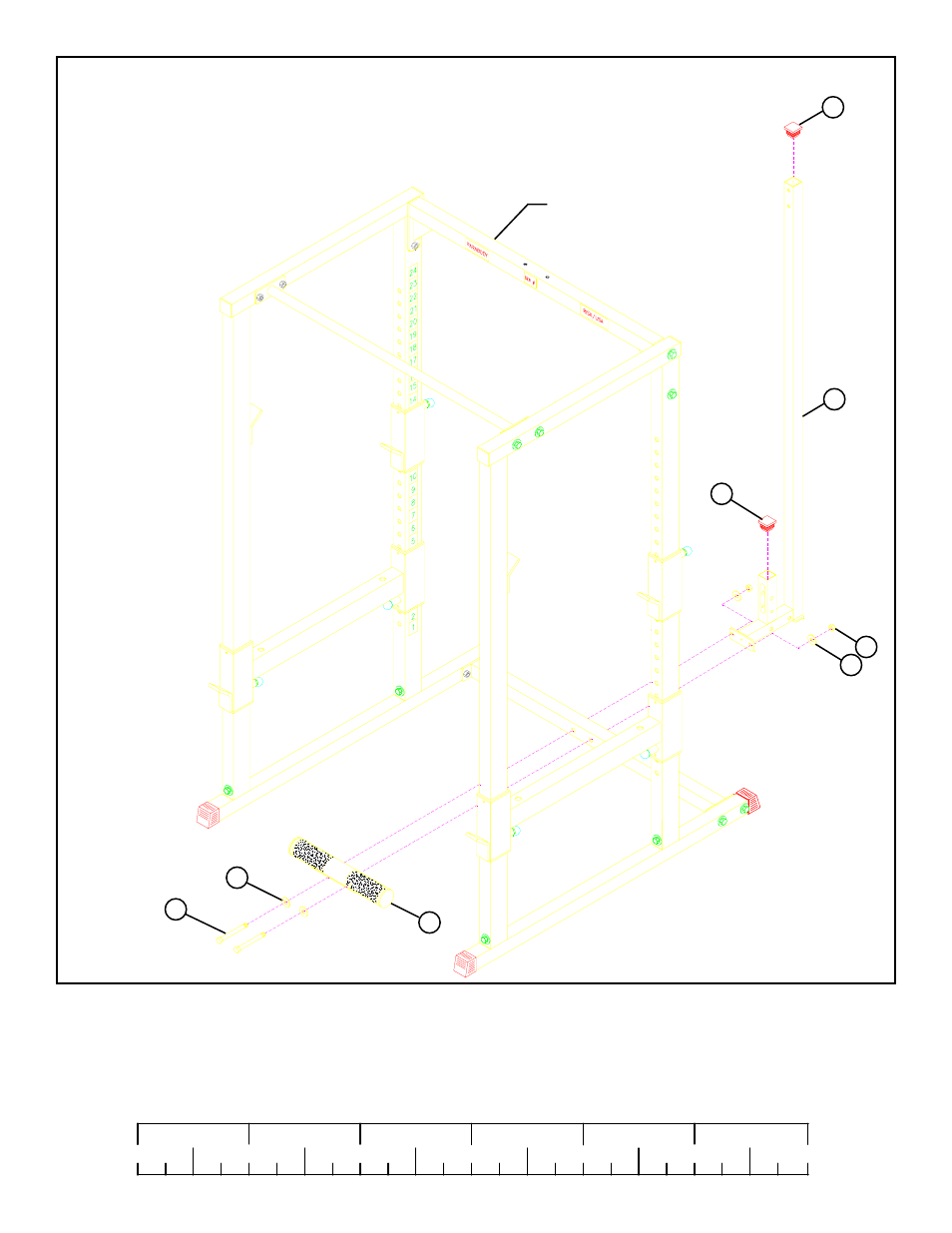

FIGURE 2
STEP 2:
• SECURELY assemble the LOW ROW ATTACHMENT (5) and the UPRIGHT (1) to the POWER RACK using two 3/8 X 3-1/4”
BOLTS (27), four 3/8” WASHERS (31), and two 3/8” LOCK NUTS (32). See FIGURE 2.
0 1 2 3 4 5 6
1/2 1/2 1/2 1/2 1/2 1/2
1
36
5
31
32
POWER RACK
• Insert two 2” SQ ENDCAPS (36) into the ends of the UPRIGHT (1) as shown in FIGURE 2.
3/8 X 3-1/4” 27
31
36
