STEP 13:

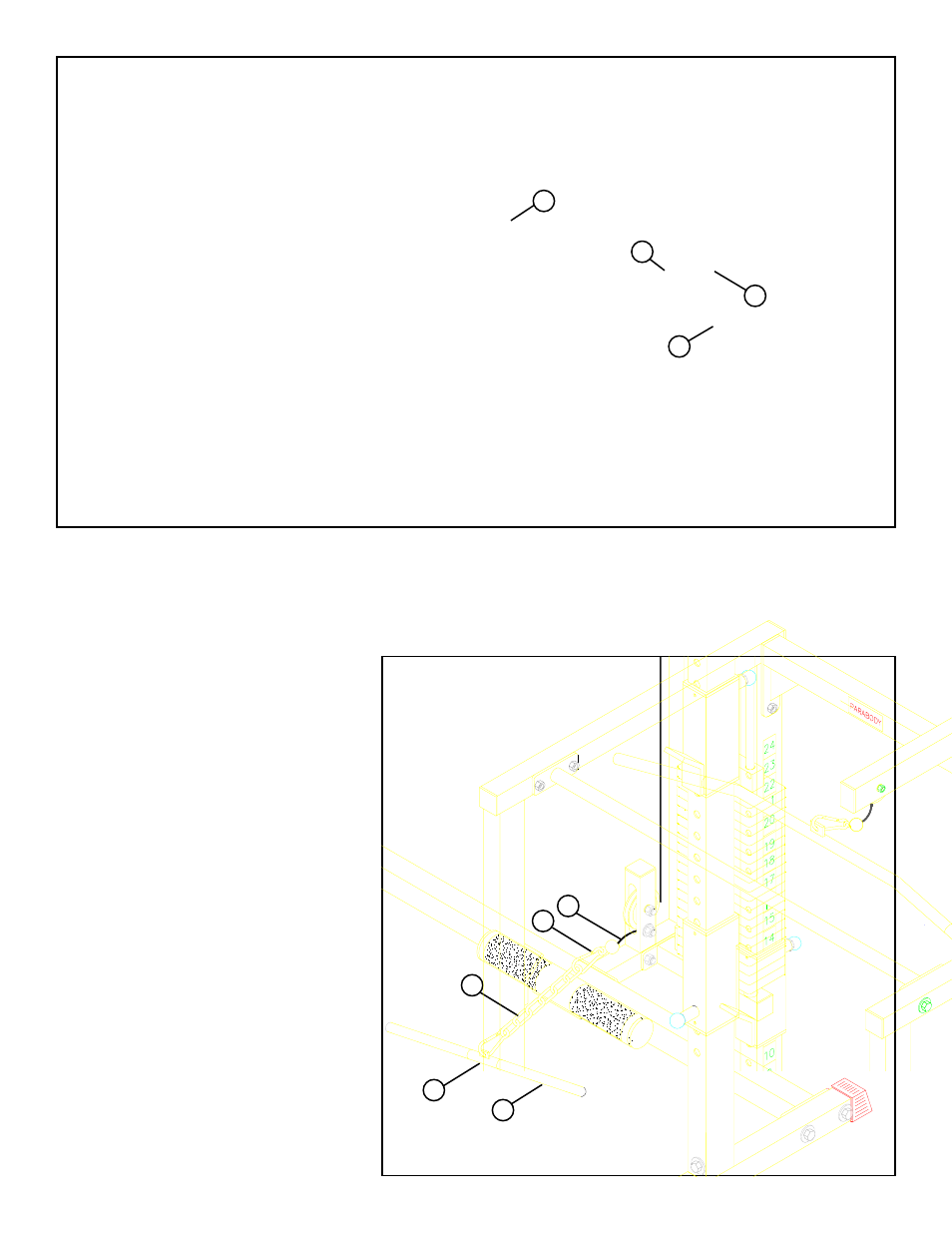

FIGURE 13
• Attach the LAT BAR (4) to the ball end of the LAT CABLE (15) using one 5/16” SNAP LINK (40) as shown in FIGURE 13..
• Attach the LOW ROW BAR (3) to the ball end
of the LOW ROW CABLE (16) using two
SNAP LINKS (40) and one 12 LINK CHAIN
(41) as shown in FIGURE 14.
4
15
40
STEP 14:
FIGURE 14
• Slide two 1 X 8” GRIPS (18) over the ends of the LAT BAR (4) as shown in FIGURE 13.
18
3
41
18
16
• Slide two 1 X 8” GRIPS (18) over the ends of the
LOW ROW BAR (3) as shown in FIGURE 13.
40
