10

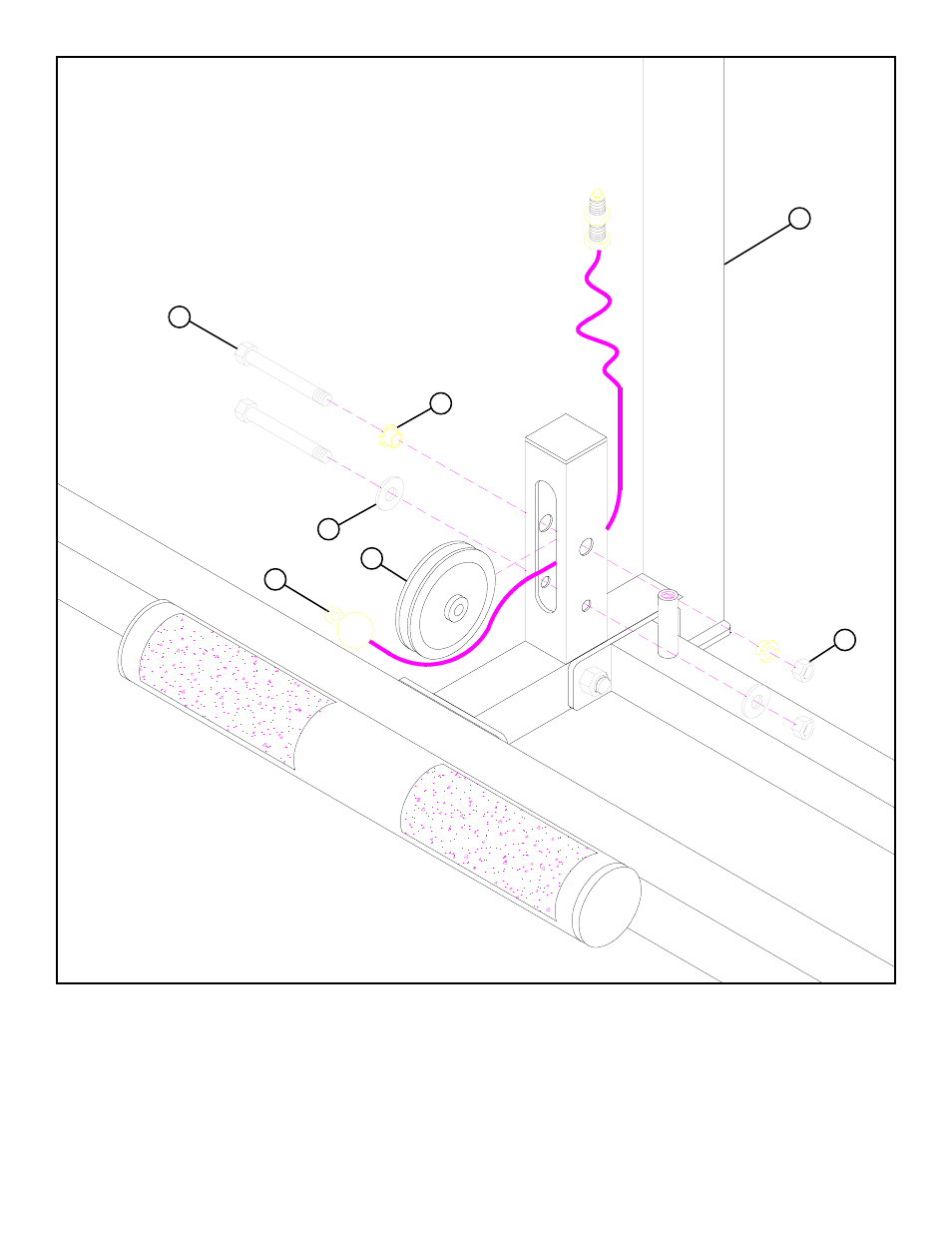

FIGURE 10

STEP 10:

3/8 X 2-3/4” 25

• Loop the ball end of the LOW ROW CABLE (16) around one 4-1/2” PULLEY (11) and SECURELY assemble the 4-1/2” PUL-

LEY (11) to the UPRIGHT (1) using two 3/8 X 2-3/4” BOLTS (25), two 3/8” FLANGE SPACERS (33), two 3/8” WASHERS
(31), and two 3/8” LOCKNUTS (32). (NOTE: Make sure CABLE is routed between the PULLEY and the retaining bolt as
shown in FIGURE 10.)

16

31

33

32

1

11
