Page 35
F-1

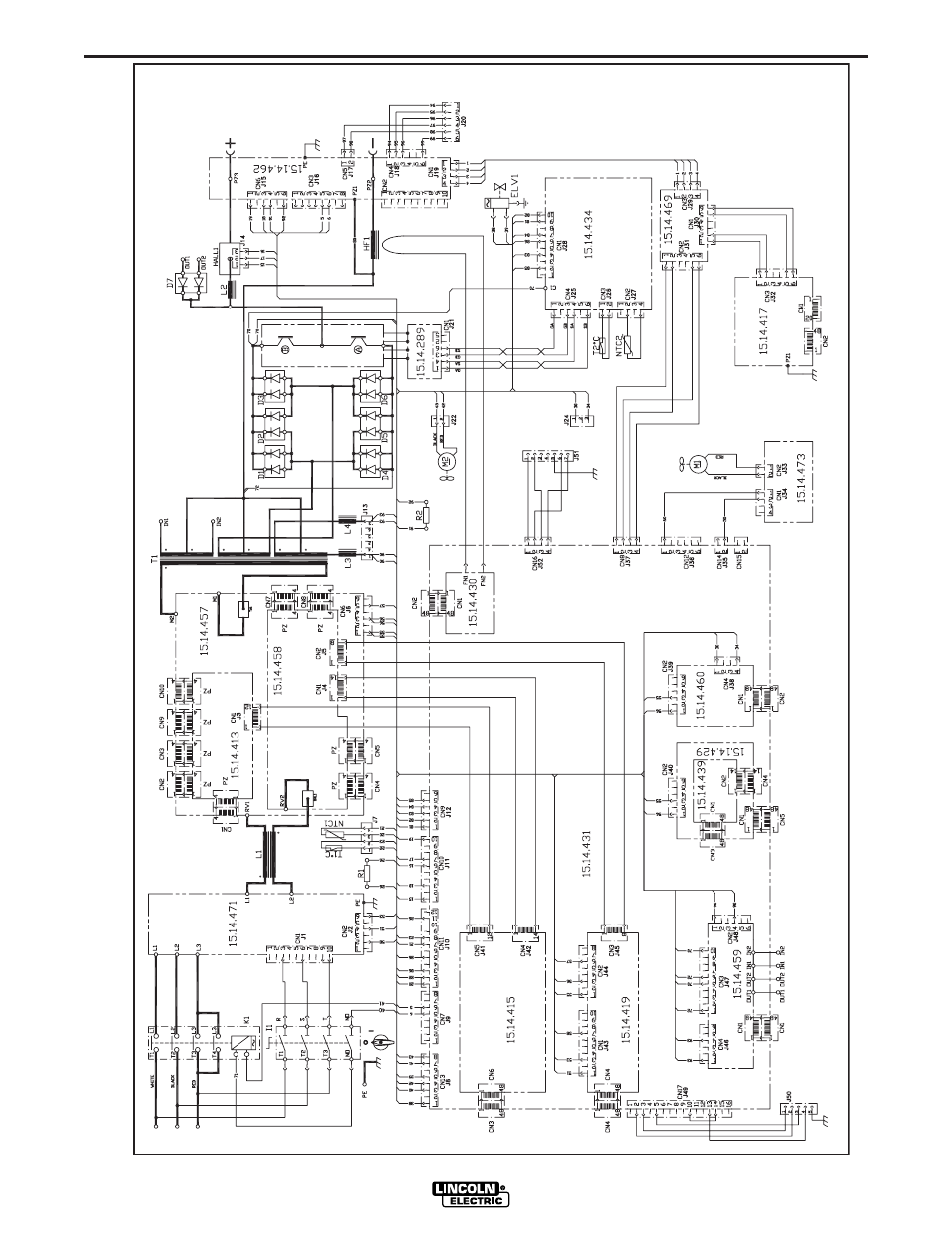

WIRING DIAGRAMS
F-1
NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diag
ram for a particular code is pasted inside
the machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. G
ive the equipment code number.
V310-T AC/DC TIG
W
IR
IN
G
D
IA
G
R
A
M
1
2
/1
3
/0
7
