1/4” MIINIMUM CLEARANCE
AROUND HOT WATER PIPING
1” MINIMUM CLEARANCE
AROUND VENT PIPE
OPEN
FRONT

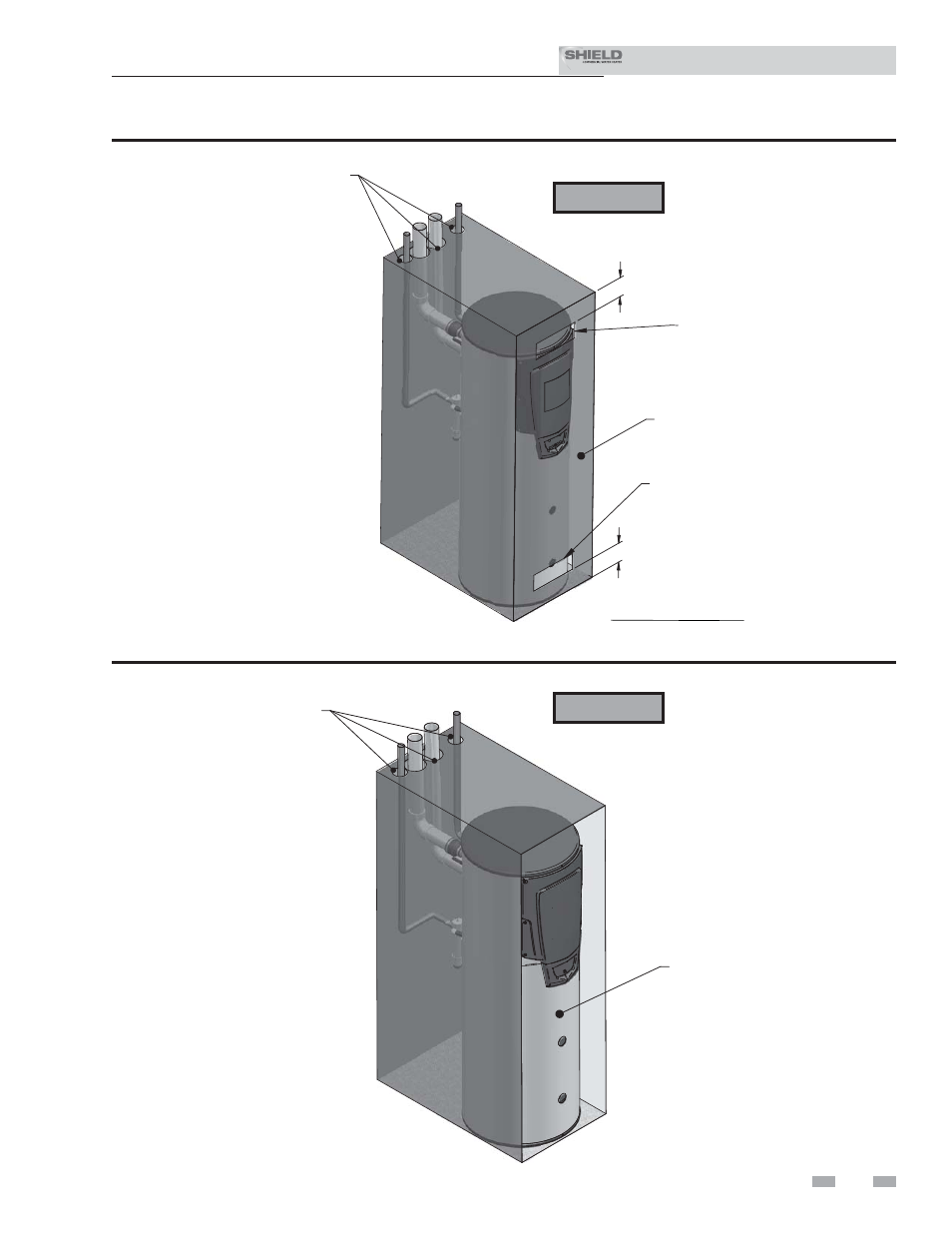

Figure 1-2 Alcove Installation - Minimum Required Clearances
6"
6"
1/4” (6.35 MM)
MINIMUM CLEARANCE
AROUND HOT WATER PIPES
1” (25.4 MM)
MINIMUM CLEARANCE
AROUND VENT PIPE
VENTILATING
AIR OPENING
CLOSED DOOR
VENTILATING
AIR OPENING
AREA OF EACH OPENING:
1 SQ. INCH PER 1000 BTU PER HOUR INPUT
WITH ALUMINUM OF 100 SQ. INCHES
Figure 1-1 Closet Installation - Minimum Required Clearances
ƽ WARNING
For closet installations, CPVC or
stainless material MUST BE used
in a closet structure due to elevated
temperatures. Failure to follow
this warning could result in fire,
personal injury, or death.
9
1
Determine water heater location
(continued)
RECOMMENDED SERVICE
CLEARANCES:
Top - 18" (457 mm)
Left/Right Side - 24" (610 mm)
Front -
24" (610 mm)
RECOMMENDED SERVICE
CLEARANCES:
Top - 18" (457 mm)
Left/Right Side - 24" (610 mm)
Front -
24" (610 mm)
Installation & Service Manual TM
ƽ WARNING
For alcove installations, CPVC or
stainless material MUST BE used in
an alcove structure due to elevated
temperatures. Failure to follow
this warning could result in fire,
personal injury, or death.
