Chapter 5: Setting Up and Configuring the Router
VPN Tab - Summary

10/100/1000 4-Port VPN Router

Tunnel Test: Click the Connect button to verify the tunnel status. The test result will be updated in Status. If
the tunnel is connected, a Disconnect button will be available so you can disconnect the VPN connection.

Config.: This includes options for editing the tunnel, by clicking Edit, or deleting the tunnel, by clicking the
Trash Can.

Tunnel(s) Enable and Tunnel(s) Defined: This will show the amount of tunnels enabled and tunnels defined.

GroupVPN Status:

This section displays the status of VPN tunnels created with the Linksys VPN Client Software. These tunnels will
then be displayed here, with the following information about each tunnel:

Group Name: This will show the name you entered when creating the Client to Gateway tunnel.

Connected Tunnels: This will show the number of users logged in to the Group VPN.

Phase2 Enc/Auth/Grp: This will show the Encryption (DES/3DES), Authentication (MD5/SHA1) and Group
(1/2/5) selected from the IPSec Setup sections of the Gateway to Gateway and Client to Gateway screens.

Local Group: This will show the IP address and Subnet Mask of the Local Group set up.

Remote Client: This column will show the remote client authentication type that is used for this specific
GroupVPN.

Remote Clients Status: Clicking Detail List will display the Group Name, IP address and Connection Time of
this Group VPN.

Config.: This includes options for editing the tunnel, by clicking Edit, or deleting the tunnel, by clicking the
Trash Can.

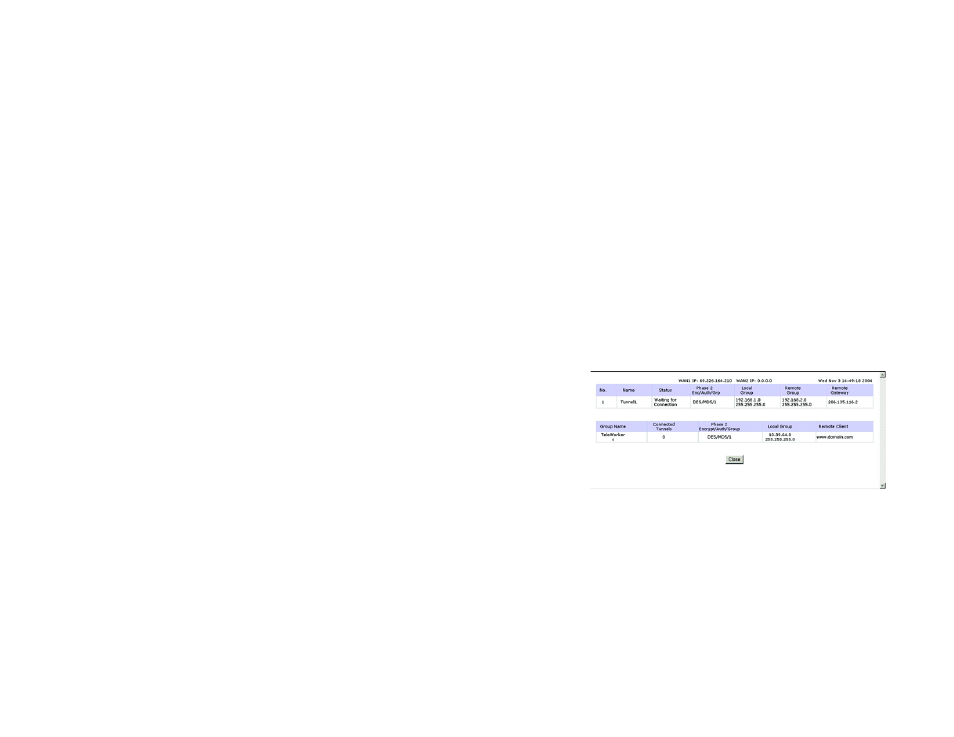

Figure 5-37: VPN Tab - Summary Detail
