8 Chapter 3: Getting to Know the Router
The Front Panel
10/100/1000 4-Port VPN Router
Chapter 3: Getting to Know the Router
The Front Panel
The Router’s LEDs, ports, and Reset button are located on the front panel of the Router.
Ports
1-4 (Gigabit) These four Gigabit (10/100/1000) ports connect to network devices, such as PCs,
print servers, or additional switches.
10/100 (WAN) The 10/100 port connects to a cable or DSL modem.
SFP The SFP (Small Fiber Pluggable) port can be used to connect a 10/100 network,
through either a hub or switch.
LEDs
Diag Orange. The Diag LED lights up when the system is not ready. The LED goes off when
the system is ready.
System Green. The System LED lights up when the Router is powered on. If the LED is flashing,
the Router is running a diagnostic test.

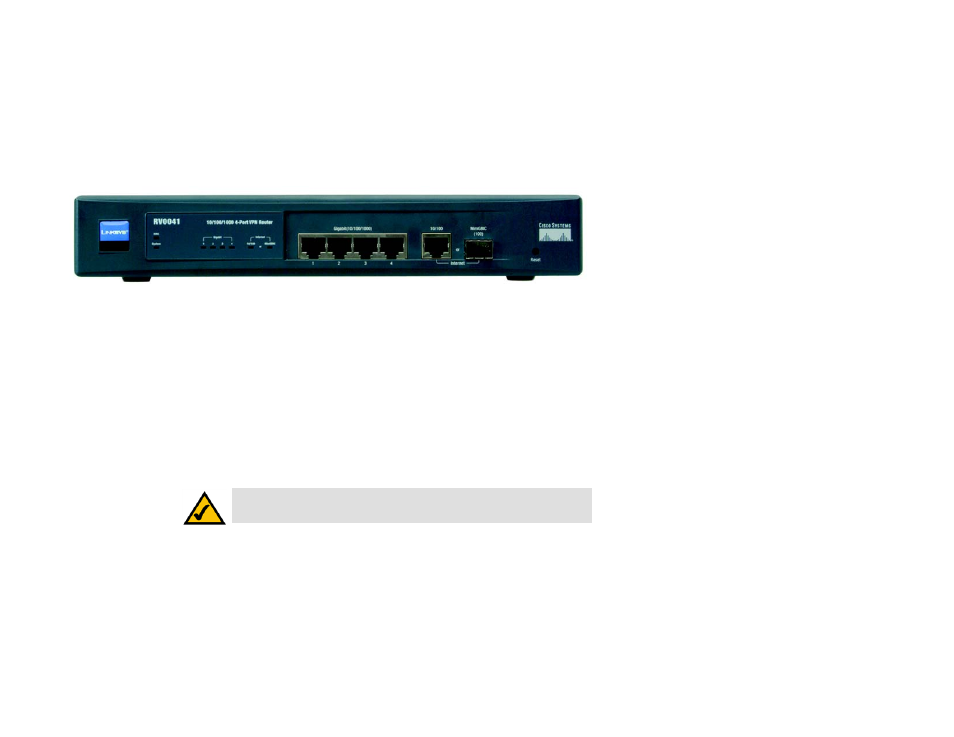

Figure 3-1: Front Panel
WAN LAN SFP
NOTE: The WAN and SFP ports cannot be used at the same time. One one of
these port may be used at a time.
