Locating
components

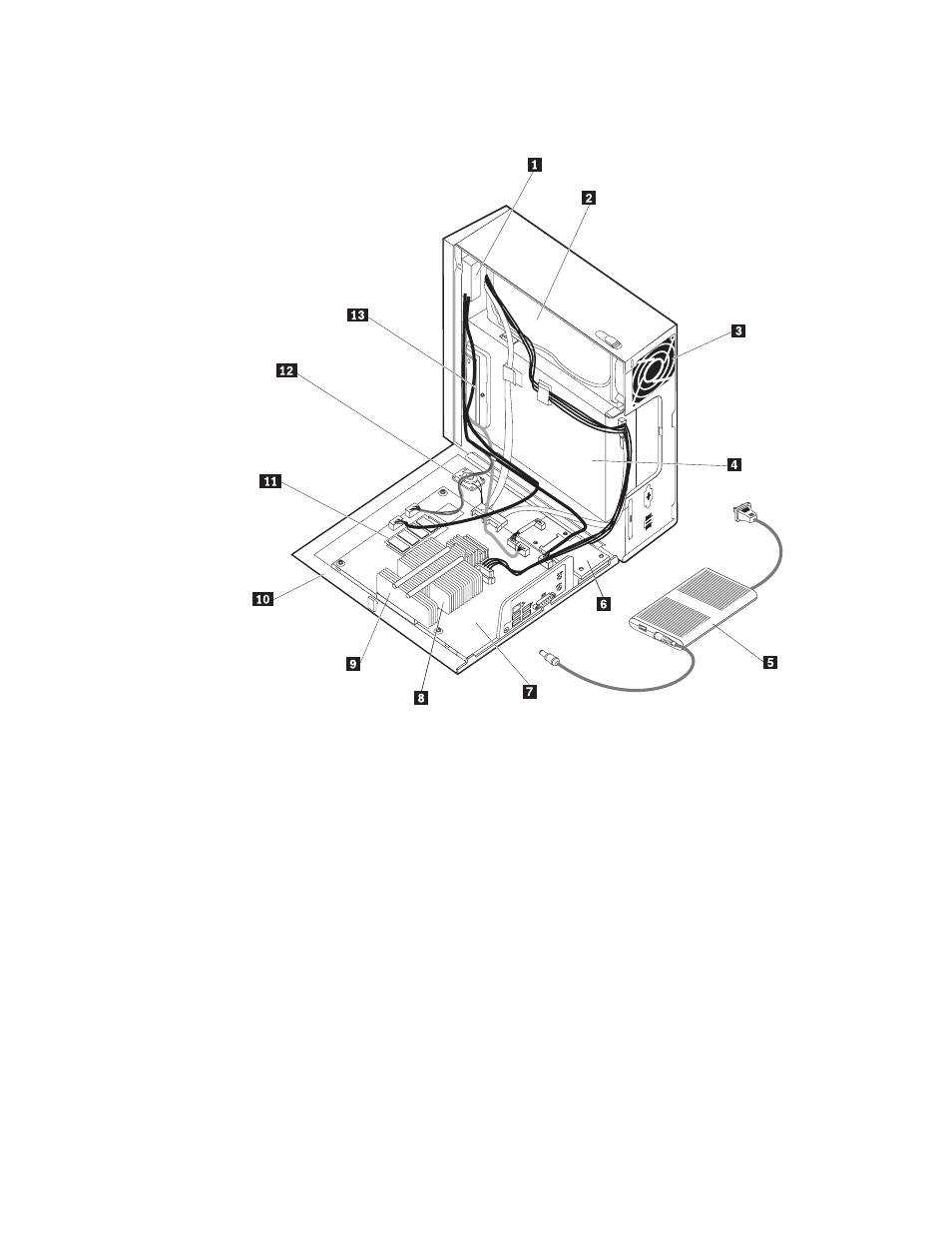

This
section
shows
the
location
of
the
various
components
in
the
computer.
1
Front
Audio/USB
assembly
8
Microprocessor
2
Hard
disk
drive
9
Heat
sink
3
System
fan
assembly
10
Side
cover
4
Optical
drive
11
Memory
modules
5
AC/DC
Power
Adapter
12
Internal
speaker
6 Express
Card
assembly
13
Media
Card
Reader
7
System
board
82
Hardware
Maintenance
Manual
