2. Setup & Use
860

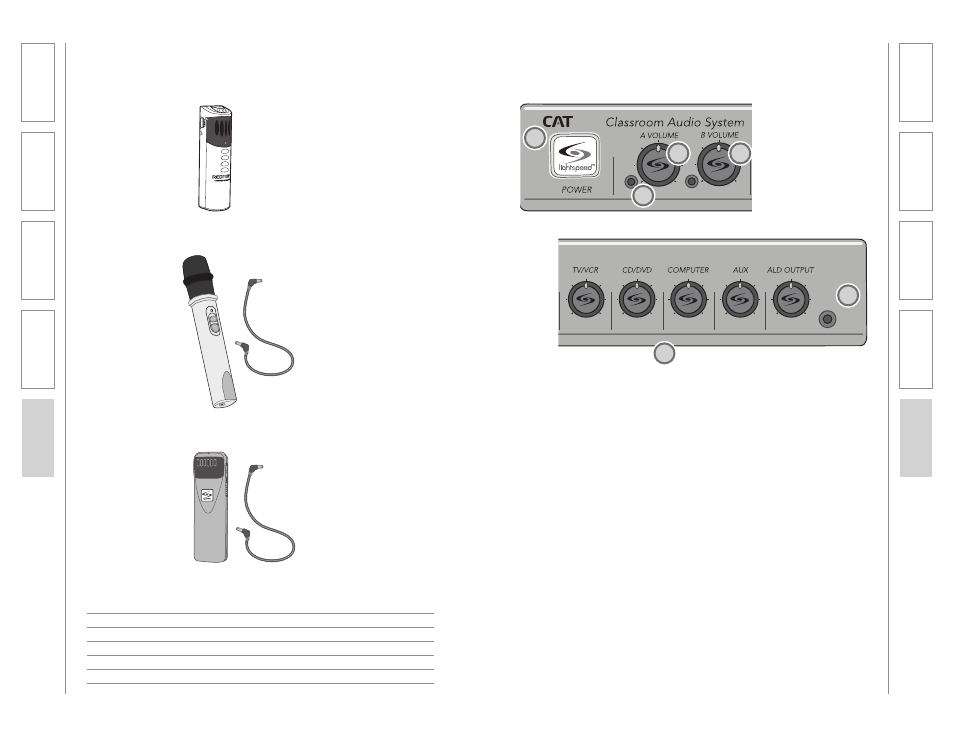

FRONT PANEL CONTROLS
1. POWER SWITCH/INDICATOR:
Press this button to turn the CAT
860 ON (pushed in) or OFF. When
the POWER is switched on, the
blue LED indicator will light.
2. AUDIO INDICATORS: These
lights flash red when audio (voice)
from the microphone is detected.
3. A VOLUME: Controls the volume
of the teacher microphone (set to
channel A).
4. B VOLUME: Controls the volume
of the student or second teacher
microphone (set to channel B).
5. AUDIO INPUT VOLUMES:
Control the volume of the audio
coming from the media source
(computer, TV/VCR, CD/DVD, etc.)
connected to the corresponding
input on the rear panel.
6. ALD OUTPUT AND VOLUME:
This jack sends mixed audio to
external equipment such as an
assistive listening device (Personal
FM System) or recording device.
Use the volume control to set
the optimum signal level for the
device.
2 2
1
3 4
5
6
OPTIONAL COMPONENTS
Optional equipment which may be part of your CAT 860 system:
REDMIKE® VC
Volume Control
Microphone
REDMIKE Share
Handheld Mic &
Charger Cable
LT-71
LT-71 LightMic
and Charger
Cable
Optional Components
RMV
REDMIKE VC microphone with battery
RMS REDMIKE Share handheld microphone with battery pack
LT71 LightMic microphone with batteries
BA-NH2A27 AA NiMH rechargeable sensing battery for REDMIKE
BA-NH2APK NiMH rechargeable battery pack for REDMIKE Share
BA-NH1 AA NiMH rechargeable battery for LT71 (2 per microphone)
