Ratings
Notes:
1. As an Energy Star Partner, Lochinvar has determined that
Knight boilers meet the Energy Star guidelines for energy
efficiency.
2. The ratings are based on standard test procedures prescribed
by the United States Department of Energy.
3. Net I=B=R ratings are based on net installed radiation of
sufficient quantity for the requirements of the building
and nothing need be added for normal piping and pickup.
Ratings are based on a piping and pickup allowance of 1.15.
4. Knight boilers require special gas venting. Use only
the vent materials and methods specified in the Knight
Installation and Operation Manual.
5. Standard Knight boilers are equipped to operate from sea
level to 4,500 feet only with no adjustments. The boiler
will de-rate by 4% for each 1,000 feet above sea level up to
4,500 feet.
6. High altitude Knight boilers are equipped to operate
from 3,000 to 12,000 feet only with no field adjustments.
The boiler will de-rate by 2% for each 1,000 feet above
3,000 feet. High altitude models are manufactured with
a different control module for altitude operation, but the
operation given in this manual remains the same as the
standard boilers. A high altitude label (as shown in FIG. A)
is also affixed to the unit.
7. Ratings have been confirmed by the Hydronics Institute,
Section of AHRI.
Maximum allowed working pressure is located on the rating plate.
NOTICE
Knight Boiler
I=B=R Rating
Model Number
Note: Change “N” to
“L” for L.P. gas models.
Input
MBH
(Note 5)
Min Max
Gross
Output
MBH
(Note 2,7)
Net
I=B=R
Ratings
Water,
MBH
(Note 3,7)
KBN081 16 80 72 63
KBN106 21 105 94 82
KBN151 30 150 135 117
KBN211 42 210 190 165
KBN286 57 285 260 226
Other Specifications
Boiler
Water
Content
Gallons
Water
Connections
Gas
Connections
Air
Size
Vent
Size
(Note 4)
0.6 1" 1/2" 3" 3"
0.7 1" 1/2" 3" 3"
1.3 1" 1/2" 3" 3"
1.7 1" 1/2" 3" 3"
2.4 1-1/4" 3/4" 4" 4"

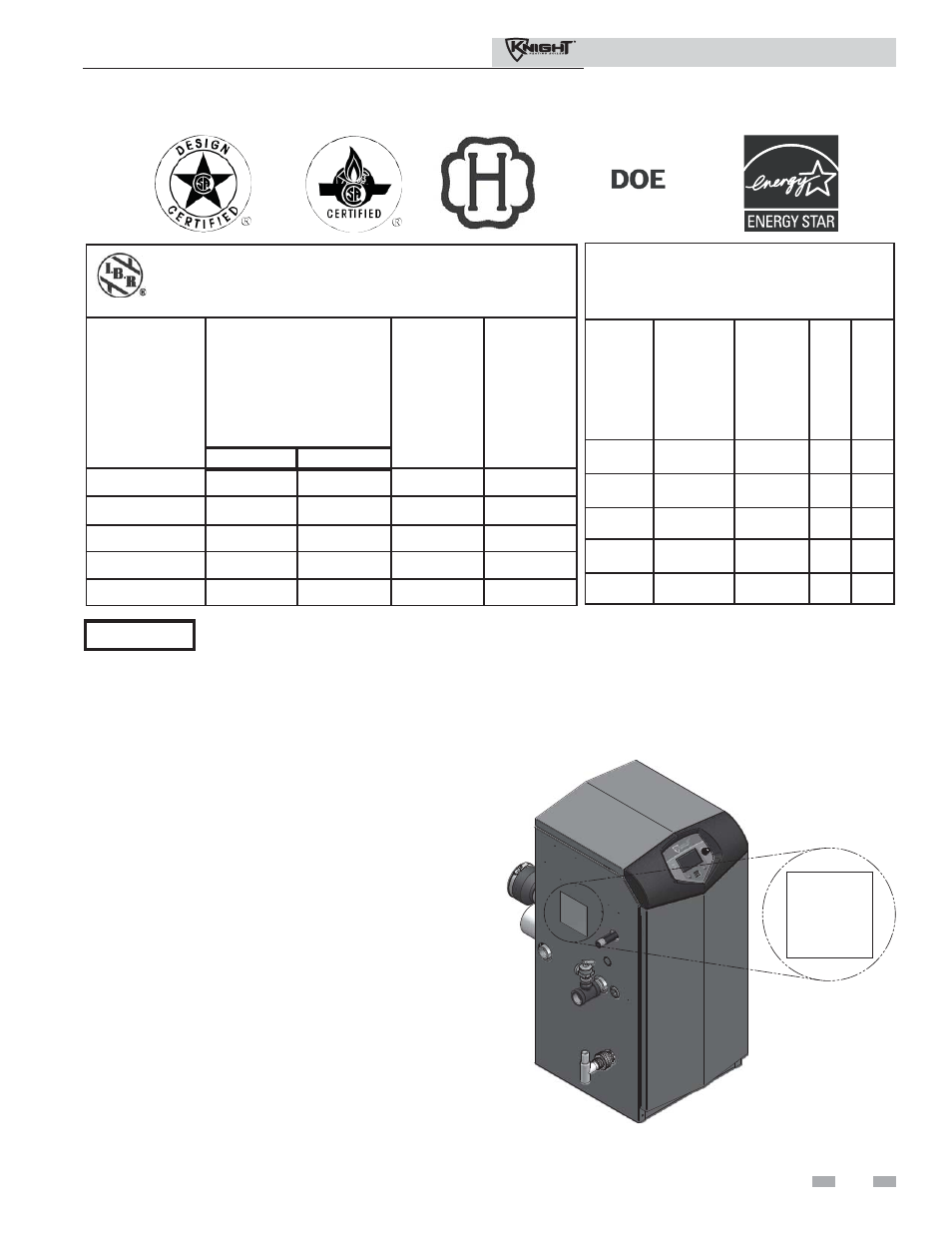

Figure A High Altitude Label Location
3,000 FT. TO 12,000 FT.
HIGH ALTITUDE
UNIT EQUIPPED FOR
8. Knight boilers comply with the requirements of CSD-1
Section CW-400 requirements as a temperature operation
control. The manual reset high limit provided with the
Knight is listed to UL353.
Installation & Operation Manual
