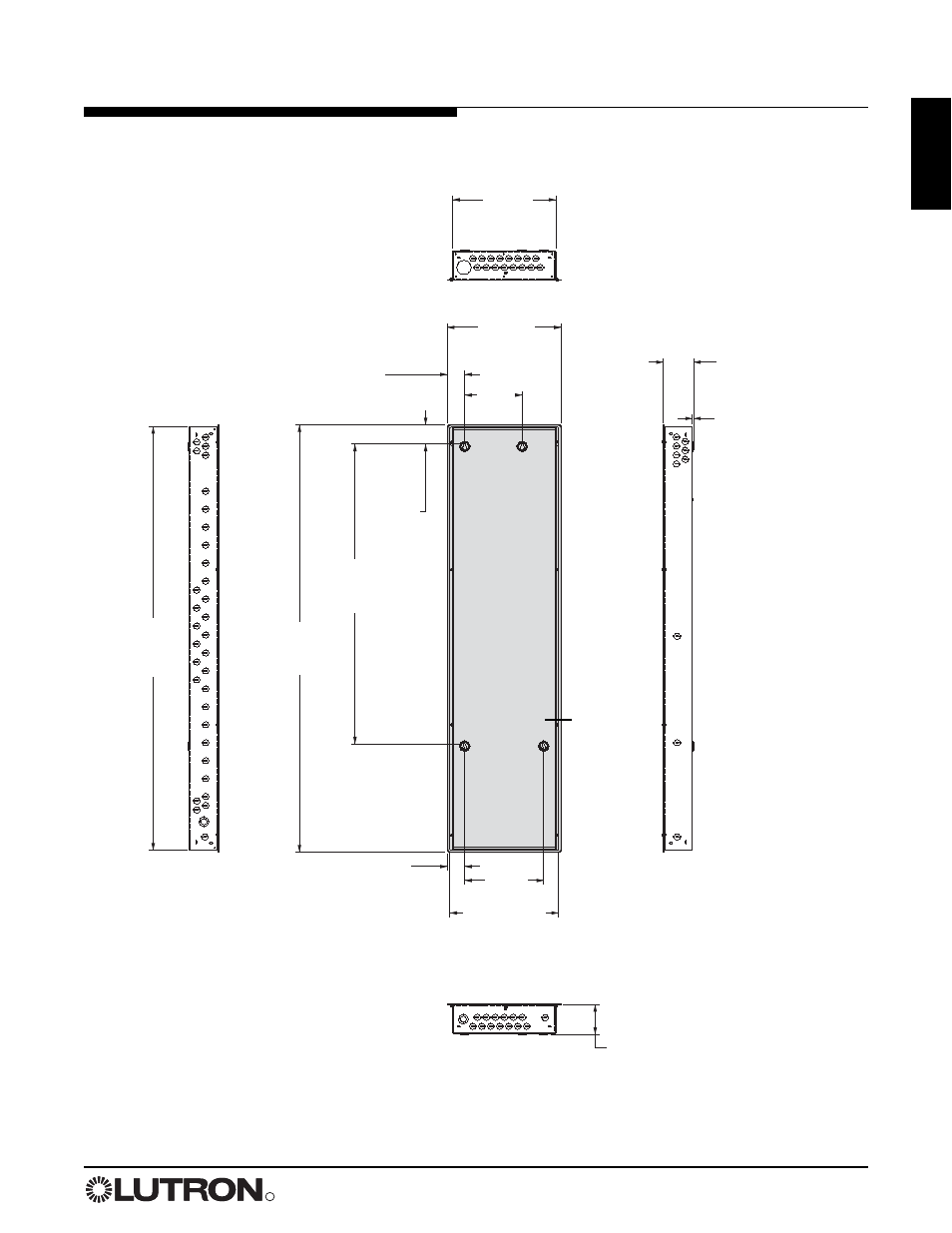

Panel Dimensions
(continued)
Standard Panel
Bottom View
Top View
Right Side
Dimensions are in inches (mm).
Left Side
Front View
14.375
(365)
15.875
(403)
2.43
(62)
8.00
(203)
4.21
(107)
0.15
(4)
2.69
(68)
41.75
(1060)
59.50
(1511)
59.00
(1499)
2.43
(62)
11.00
(279)
15.125
(394)
4.15
(105)
Cover
