Installation Guide for Dimming and Switching Panels

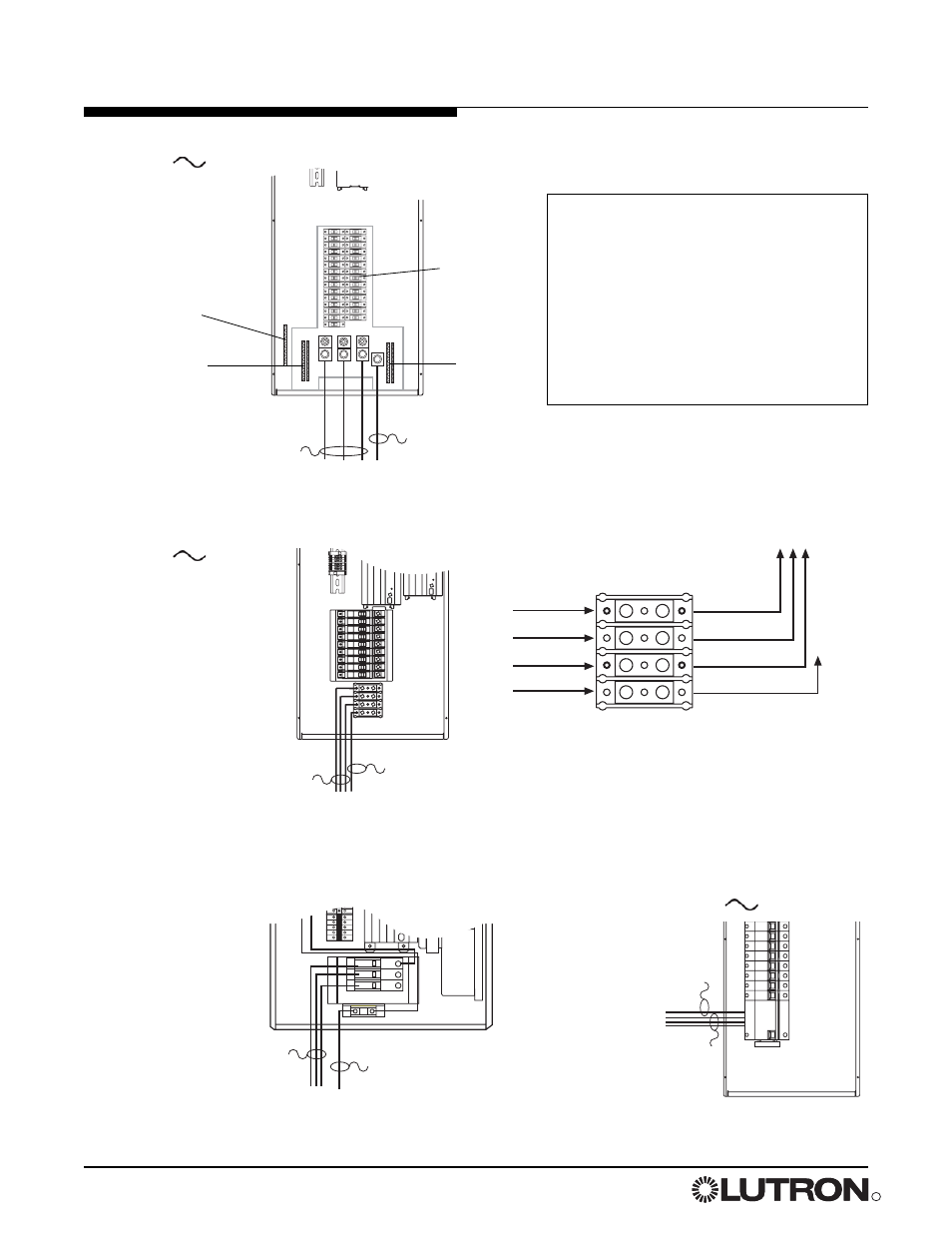

Panel with Main Lugs: Feed Wiring
Neutral
Power (hot/live)
Feed wiring
Prewired to
circuit breakers
Prewired neutral to
dimming modules
Phase A
N
Main lugs in panel
Phase B
Phase C
Phase A
N
Phase B
Phase C
Neutral
Neutral bus
Neutral bus
Power (hot/live)
Feed wiring
Dimming and Switching Panels
(120 V
only)
Dimming Panels
(120 V
only)
Ground bar
Breakers
N
Feed wiring
Notes
• See page 15 for load wiring details.
• On dimming panels only, the input breaker
of Circuit 1 supplies current to Load Circuit 1
and to the Control Wiring (2 A draw max.).
Panels with switching modules have a
dedicated circuit breaker for the control
circuit.
Neutral
Power (hot/live)
Main Lugs feed wiring gauge:
#2/0 AWG (70 mm
2
)
Mini Panel Breaker Wiring
(all voltages)
Feed wiring
Neutral
Power (hot/live)
Dimming Panels
Isolation Switch
(230/220-240 V
)
