7 Chapter 3: Getting to Know the ADSL Gateway
LEDs on Side Panel
ADSL Gateway
LEDs on Side Panel
The Gateway's LEDs, which indicate network activity, are located on the other side panel.
POWER Green. The POWER LED lights up when the Gateway is powered on.
ETHERNET (1-4) Green. The ETHERNET LED serves two purposes. If the LED is continuously lit, the Gateway is
successfully connected to a device through the LAN port. If the LED is flashing, it is an
indication of any network activity.
DSL Green. The DSL LED lights up whenever there is a successful DSL connection. The LED blinks
while the Gateway is establishing the ADSL connection.
INTERNET Green. The INTERNET LED lights up green when an Internet connection to the Internet Service
Provider (ISP) is established. The INTERNET LED lights up red when the connection to the ISP
fails.

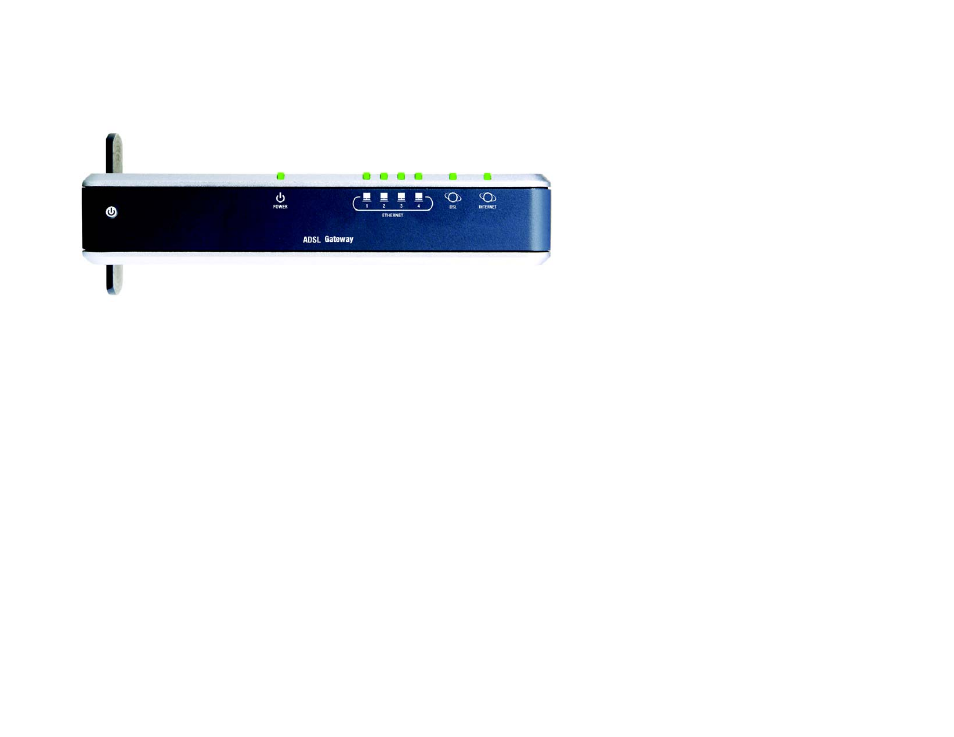

Figure 3-2: LEDs on Side Panel
