8: Setup Mode: Channel Configuration
This chapter explains how to configure a serial port.
Notes:
Current values display in parenthesis.
You must enter some values in hexadecimal notation. (See
Channel 1 (Option 1) and Channel 2 (Option 2)
Note:
Channel 1 and Channel 2 have the same defaults except for the port number
(10001 for Channel 1 and 10002 for Channel 2).
Select Channel 1 (option 1) or Channel 2 (option 2) from the Change Setup menu to
define how the serial port responds to network and serial communications. The following
sections describe the configurable parameters within the Channel configuration menu.

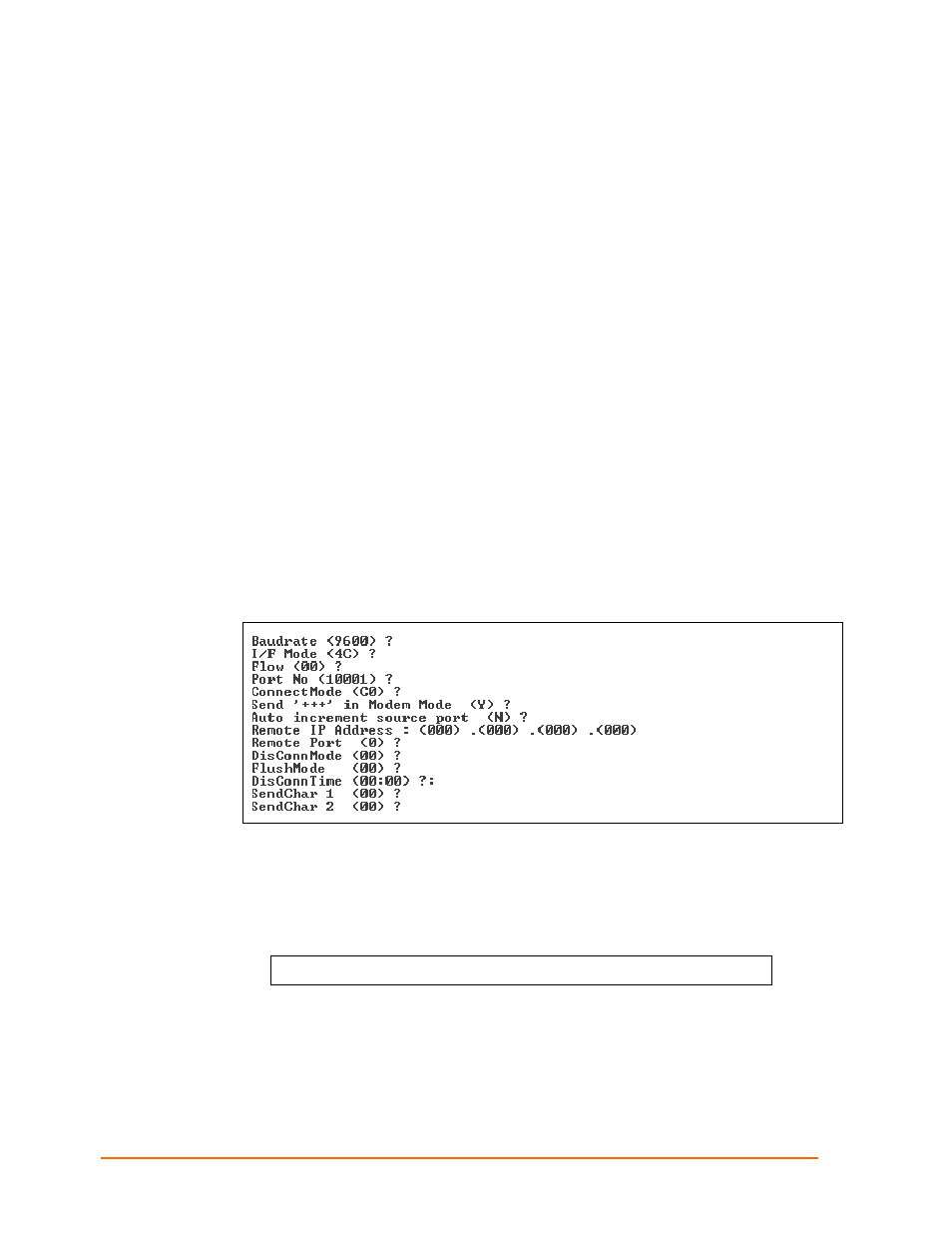

Figure 8-1. Serial Port Parameters
Baudrate
The unit and attached serial device, such as a modem, must agree on a speed or baud
rate to use for the serial connection. Valid baud rates are 300, 600, 1200, 2400, 4800,
9600 (default), 19200, 38400, 57600, 115200, and 230400 baud.
Baudrate (9600) ? _
