3: Installation and Hardware
XPress DR+ User Guide 24
Dimensions

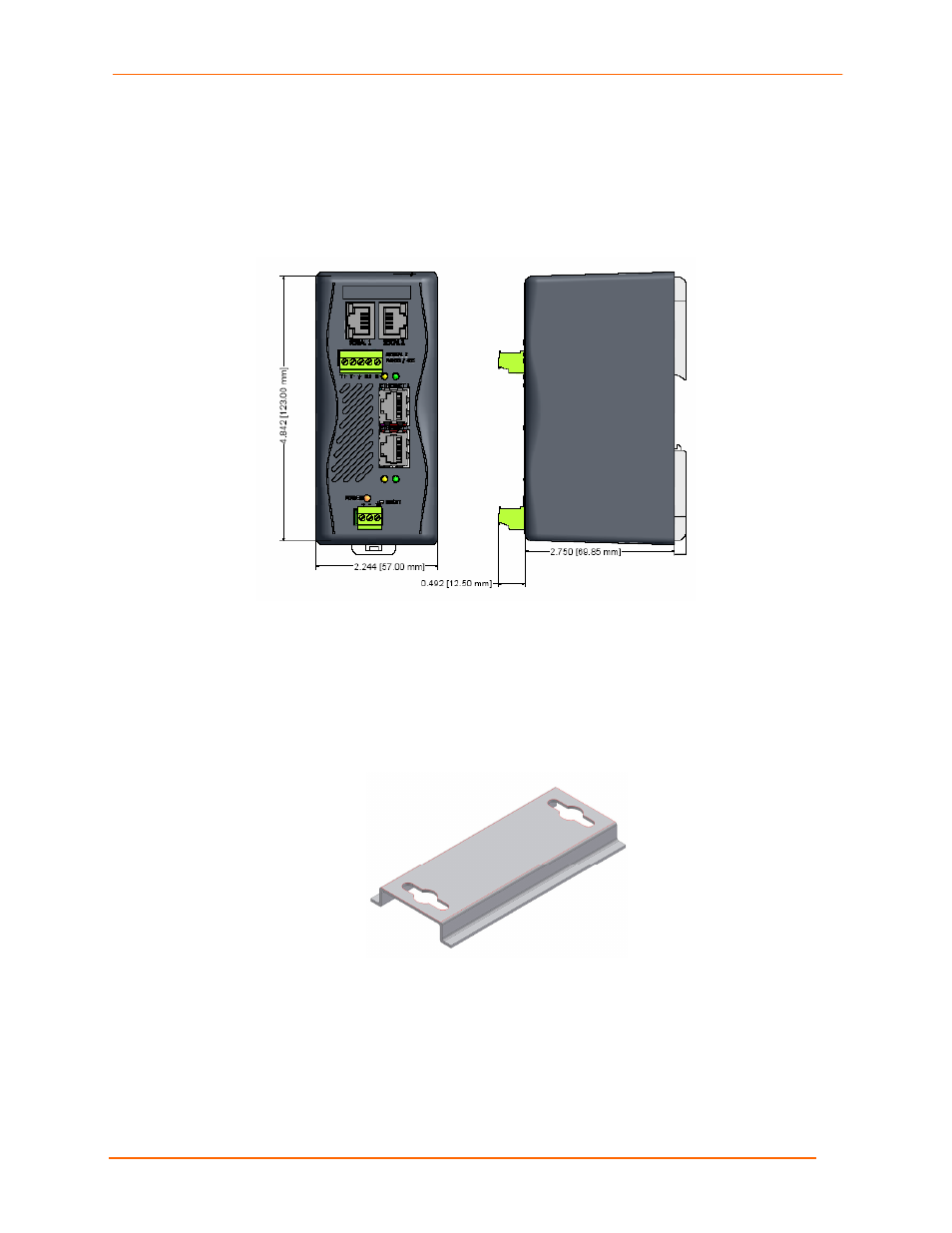

The following drawing shows the dimensions of the XPress DR+
Figure 3-10. Dimensions
Wall Mount Bracket
Included with the XPress DR+ is an accessory DIN-rail wall mount bracket that makes it
very easy to mount the unit in locations where a DIN-rail is not available.
Figure 3-11. Wall Mount Bracket
