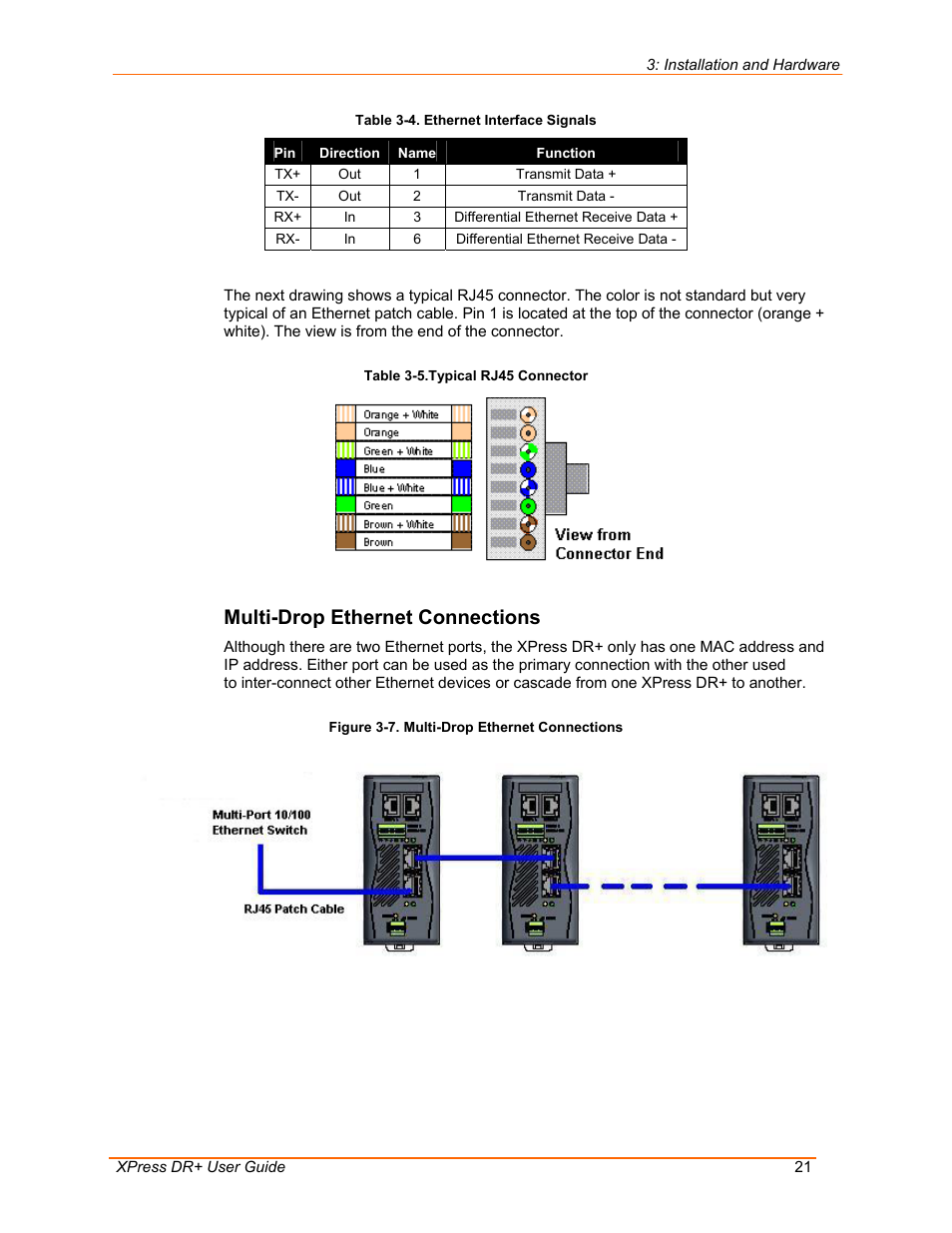

Multi-drop ethernet connections, Figure 3-7. multi-drop ethernet connections, Table 3-4. ethernet interface signals – Lantronix 900-422 User Manual

Page 21: Table 3-5.typical rj45 connector

Text mode
Original mode

Multi-drop ethernet connections, Figure 3-7. multi-drop ethernet connections, Table 3-4. ethernet interface signals | Table 3-5.typical rj45 connector | Lantronix 900-422 User Manual | Page 21 / 87
