Life Fitness x3i User Manual
Page 9
9

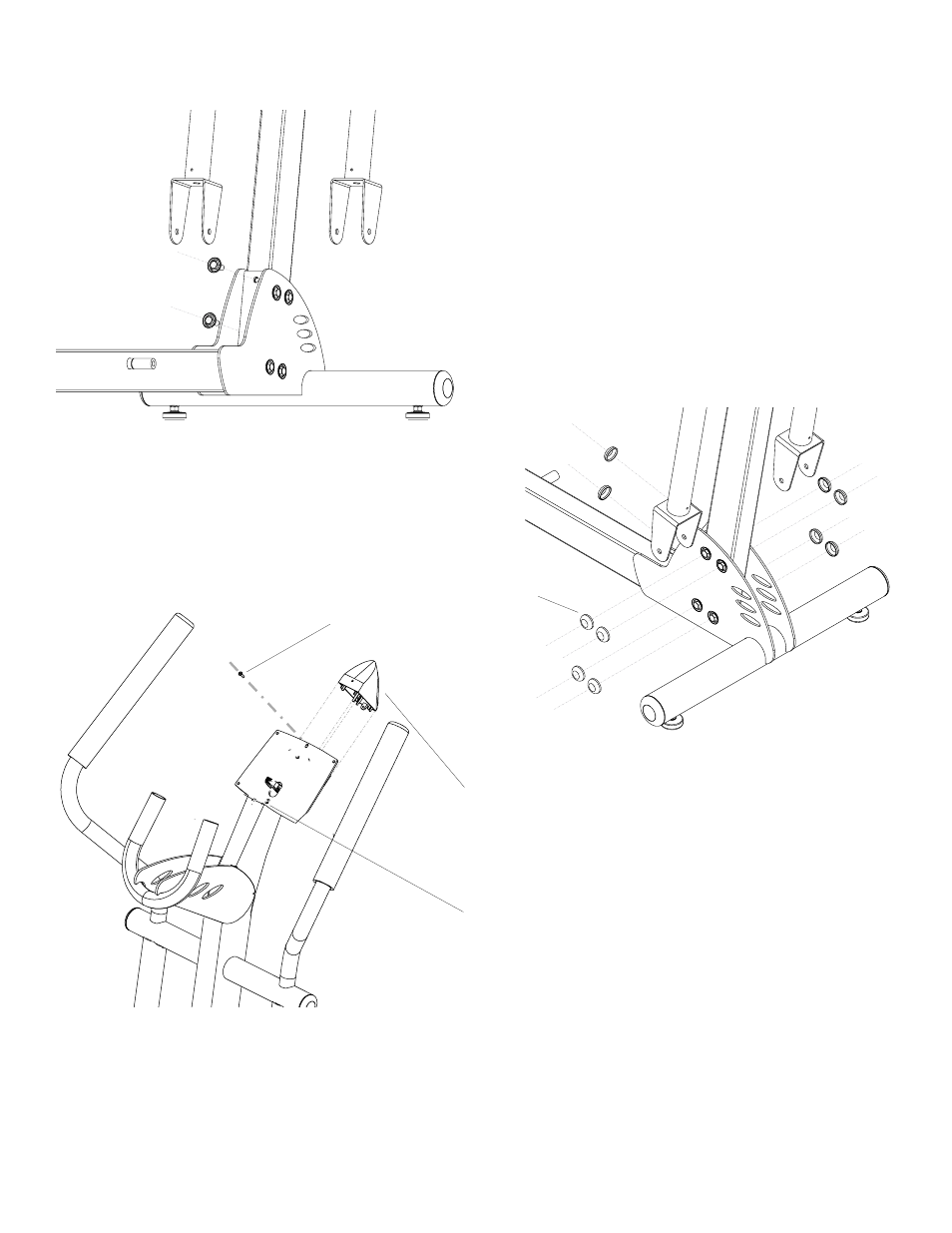

6. Insert two (#4) 1 inch bolts and two (#9) washers into
backside of connector joint on base frame. Start each bolt,
and then tighten with a 9/16 socket wrench.
7. Tighten four (#5) 3-inch bolts with a 9/16” socket wrench.
8. Push the ten (#10) black plastic cover caps
over each bolt head.
S
TEP
3
Attach Plastic Upright Cap to upright assembly:
1. Push the Plastic Upright Cap into open end of tube at the top of the upright assembly.
2. Line up hole in nose cone with hole in upright assembly and fasten with a (#3) screw.
1.4 S
ETUP
CONTINUED
(#3)
(#10)
Plastic
Upright
Cap
Upright
assembly
