Screws (#2)

11

1.4 S

ETUP

CONTINUED

S

TEP

6

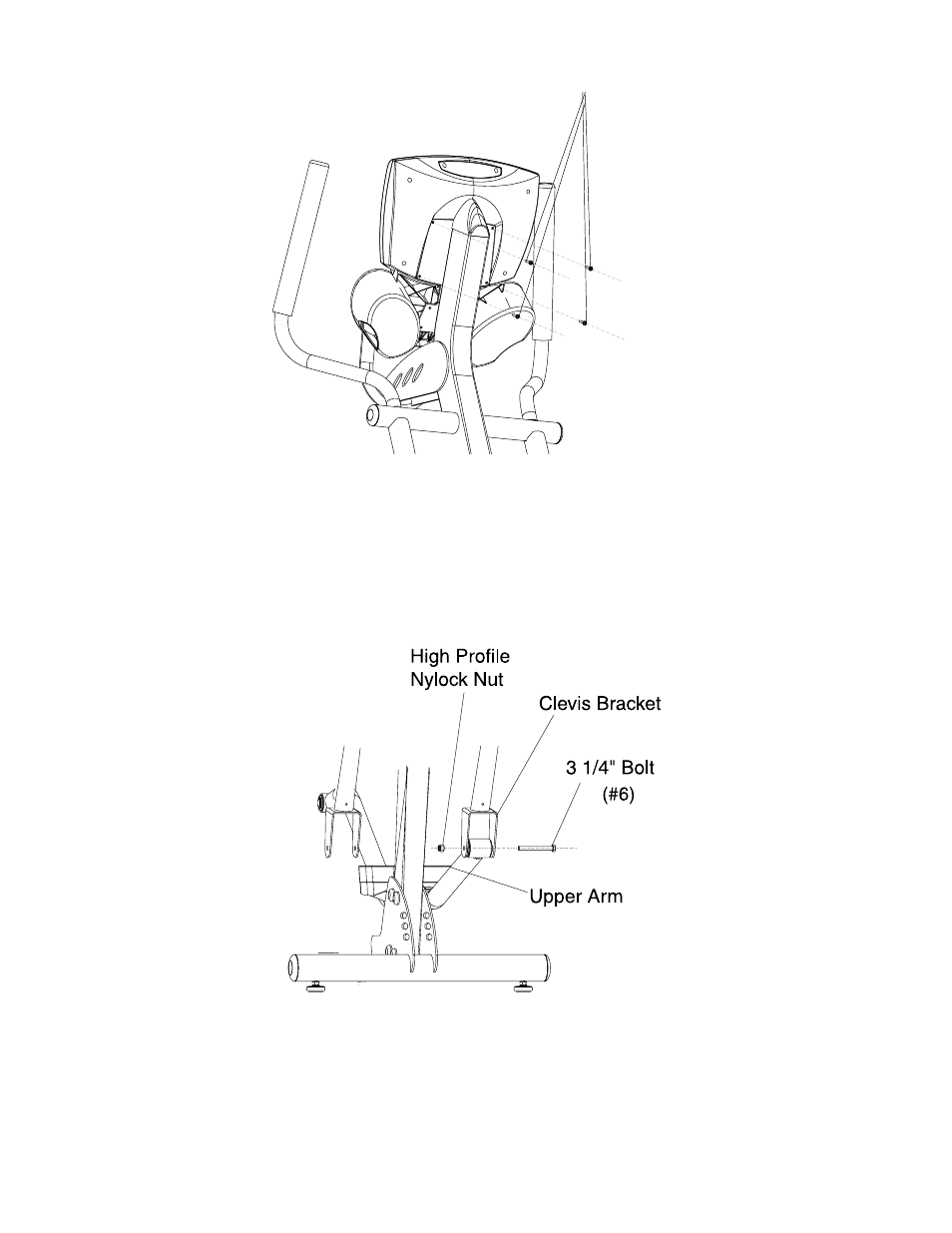

Attach display console to console plate:

1. Line up the four holes in the back of the console plate with the four holes in the back of the display console.
2. Attach the display console using the four (#2) screws. Be careful not to pinch cables between the console and the console

plate. Be sure to get each screw started before fully tightening.

NOTE: To avoid stripping, do not over tighten screws.

S

TEP

7

Connect pedal levers to upper arms:

1. Insert pedal lever into the clevis bracket of the upper arm.
2. Connect pedal lever to upper arm using one (#6) 3 1/4” bolt and one (#8) high profile nylock nut using a 9/16” socket

wrench, and a 9/16" open ended wrench. Tighten securely.

3. Repeat procedure for opposite side.
