PeraTing

inTs

Burn only dry, well-seasoned wood for maxi-

mum heat output. In some states it is illegal to

burn wet wood or anything other than clean,

dry wood products.

Your stove is designed to operate with the door

closed! Operate only with the door shut tightly

at all times except when loading wood.

DO NOT hit or move the baffle brick while load-

ing wood. Occasionally check the baffle. Make

sure the insulating blanket is always flush with

the front of the baffle brick. Loading oversized

logs may dislodge the baffle bricks.

CAUTION: THE DRAFT CONTROL MUST BE

FULLY OPEN BEFORE OPENING THE DOOR

TO AVOID POSSIBLE COMBUSTION FLASH!!

(Ignition of hot volatile gases as the door is

opened).

Feeding excessive amounts of fuel to the stove

should be avoided. It is important to supply

it with sufficient draft and fuel to maintain a

moderately hot fire. If, during overnight burns,

heavy creosote deposits develop inside your

stove and on the door, the draft is set too low

- review your burning habits!

PTional

loWer

nsTallaTion

A blower, part # 71000, can be installed on the stove to

improve hot air distribution throughout the room.

To install the blower:

1. Remove all the contents from the blower box. In-

cluded with the blower should be a blower speed

control.

2. Remove the screw in the round knock-out plate

on the back of the stove. Bend the knock-out plate

back and forth until it can be removed.

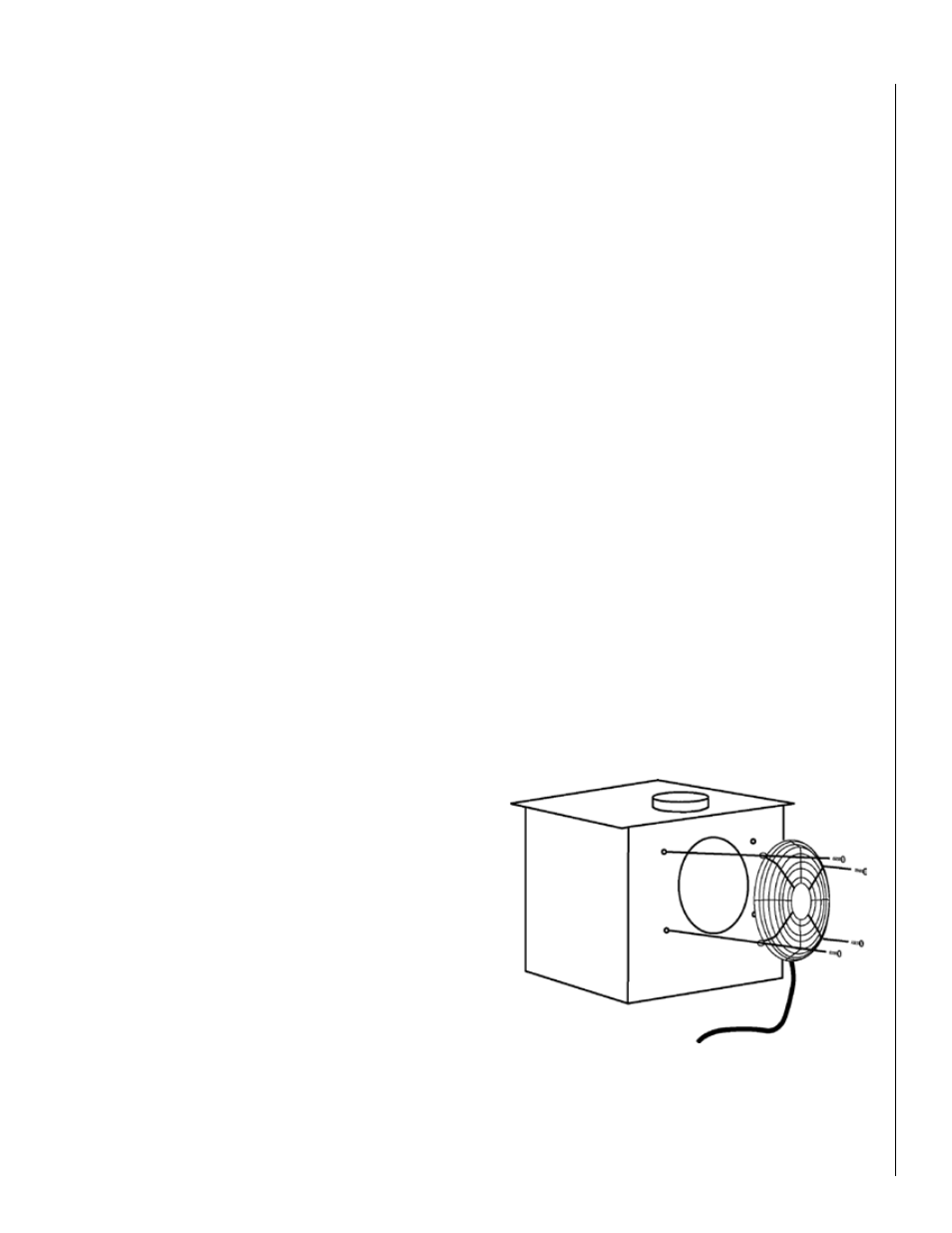

3. Mount the blower as shown below. Make sure the

cord is at the bottom when mounted and that it

does not touch the stove anywhere. Remove the

four screws from the back of the stove. Use one of

the four screws with a washer on it and attach the

blower through one of the four mounting legs on

the blower housing. Check to make sure that the

fan blade does not touch the large hole in the rear

heatshield. (Spin it to check all directions). Finish

attaching the blower with the other three screws.

Tighten the screws moderately tight but do not over

tighten as you may strip the holes out.

4. Plug in the fan speed control into the nearest outlet,

then plug the blower cord into the speed control.

Do not route the fan power cord under the stove or

allow it to come in contact with any surface of the

stove. Read the section Starting and Maintaining a

Fire for proper fan operating instructions on page

15.

WARNING: In the event that you remove the blower for any

reason, make sure a cover plate available from Lennox

Hearth Products is reinstalled before using the heater.

Excessive rear wall temperatures will result if the stove

is burned without the cover plate.
