WOODSTOVE PEDESTAL KITS

INSTALLATION INSTRUCTIONS FOR INSTALLING PEDESTAL KITS FOR
USE WITh COUNTRY COLLECTION™ FREESTANDING WOODSTOVES

P/N 506033-16

Rev. A, 05/2009

HEARTH PRODUCTS

KITS AND ACCESSORIES

KIT CONTENTS

Please ensure that all these parts are included

1 ea. Pedestal Assembly

2 ea. 3/8”-16 x 3/8” Hex Bolts

2 ea. 3/8” Flat Washers

1 ea. Instruction Sheet

Pedestal Kits (all models)

Cat. No.

Model

Where Used

71108

WS-PED

S160, SA160

71113

WL-PED

SS210, ST210, S260, ST310

TOOLS NEEDED

9/16” Open End Wrench or Ratchet with 9/16” Socket

GENERAL INFORMATION

If you encounter any problems, need clarification of these instructions or

are not qualified to properly install this kit, contact you local distributor

or dealer.

Read this instruction sheet in its entirety before beginning the installa-

tion.

ALL WARNINGS, PRECAUTIONS AND INSTRUCTIONS IN ThE INSTAL-

LATION AND OPERATION MANUAL PROVIDED WITh ThE APPLIANCE

APPLY TO ThESE INSTRUCTIONS.

Check the contents of the kits upon receipt and check for any damaged

or missing parts. If there is hidden damage, notify your freight company

or Lennox Hearth Products dealer immediately.

CAUTION: Wear gloves during installation in case of sharp

edges on the stove.

Manufactured (Mobile) homes

In manufactured homes, this appliance must be bolted to the floor and

properly grounded to the chassis. An outside air kit (order Cat. No. 71112)

is also required. See the Installation and Operation Manual for details and

additional requirements for manufactured home installations. Also see

See steps 5, 6 and 7 on Page 2.

INSTALLATION INSTRUCTIONS

Step 1. Remove the stove and pedestal from the cartons, if packaged,

upon receipt and check for any damaged or missing parts.

Step 2. Carefully put the stove on pedestal with the open end of the

pedestal facing the rear (see Figure 1).

DO NOT LEAVE ThE

STOVE UNATTENDED UNTIL IT IS BOLTED SECURELY

TO ThE PEDESTAL. IT COULD FALL CAUSING SERIOUS

INJURY OR DAMAGE.

Step 3. Line up the holes in the brackets on the pedestal with the

threaded holes in the bottom of the stove. Using a 9/16” wrench

or socket, secure the stove to the pedestal with the two 3/8” long

bolts and 3/8” standard washers. Be sure to see that the stove

is mounted squarely on the pedestal before tightening the two

bolts securely.

Step 4. When installing a pedestal on this stove you MUST plug the four

leg mounting bolt holes, located on the bottom of the stove in the

four corners, with the bolts that were used to mount the shipping

legs.

FAILURE TO INSTALL ThESE FOUR BOLTS PROPERLY

WILL RESULT IN REDUCED CONTROL OF ThE STOVE’S

COMBUSTION SYSTEM!

Caution: The two rear bolts should

not be installed more than two full rotations to prevent lifting

the bricks off the bottom of the stove.

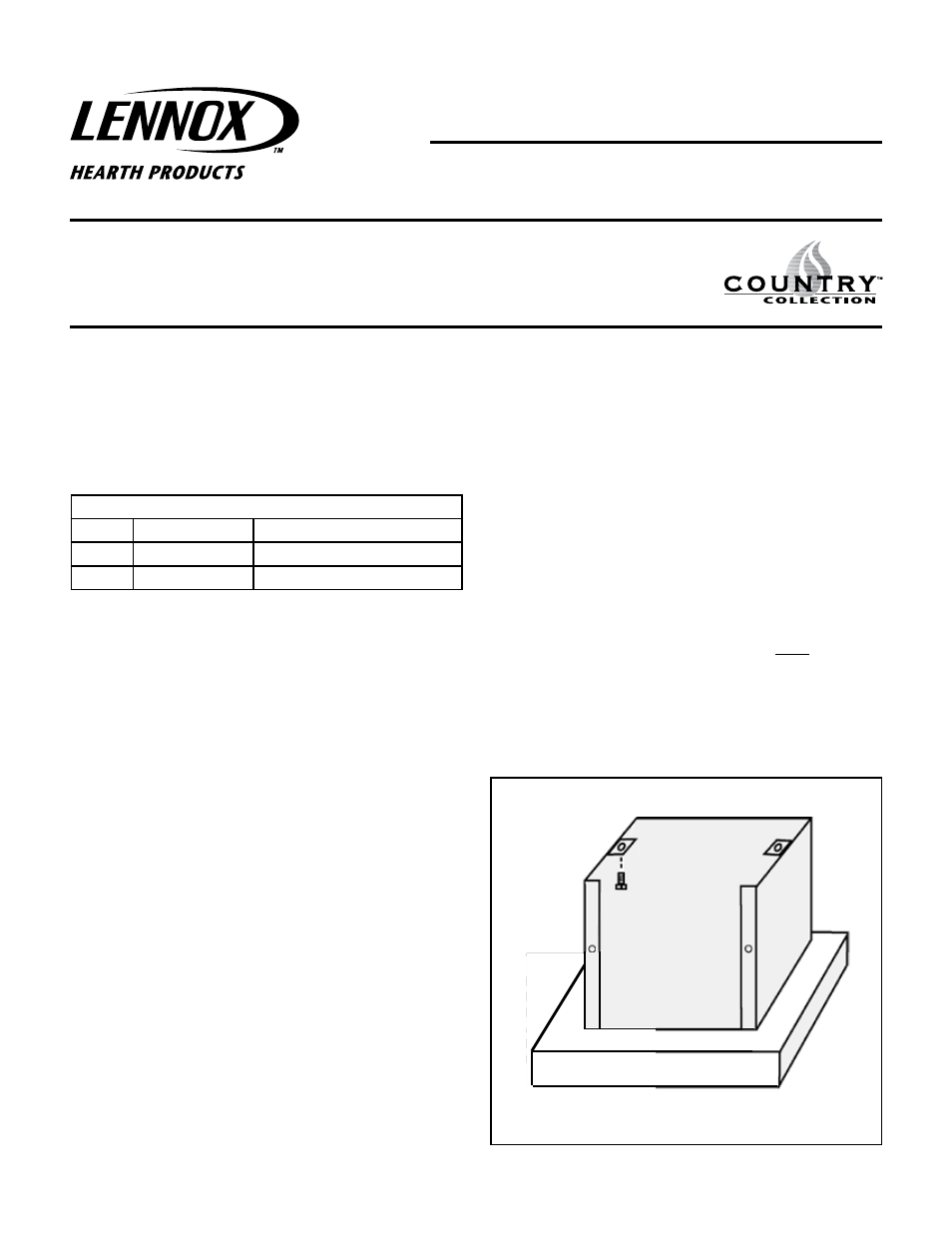

Figure 1

FRONT

REAR

Pedestal

5/0

1/2

NOTE: DIAGRAMS AND ILLUSTRATIONS ARE NOT TO SCALE.
