8
CONTROLS, DISPLAYS AND CONNECTIONS
This section provides a brief description of all the controls, displays and connections.
Front Panel Controls and Displays
1. On/Off switch (with mains disconnect)
2. Channel select buttons - (
▼▲)
3. Display
Rear Panel Controls and Displays
1. LNB loop-through input
2. LNB
input
3. HDMI output
4. Scart socket for VCR/AUX connection
5. Video output (composite colour)
6. Electrical data stream output (SPDIF/Sony
Philips Digital Interface
Format) for Dolby Digital AC 3 audio
7. Audio outputs (L/R) - cinch sockets
8. Scart socket for TV connection
9. RJ 11 data interface / connection
port for an external IR sensor
10. Mains power cable

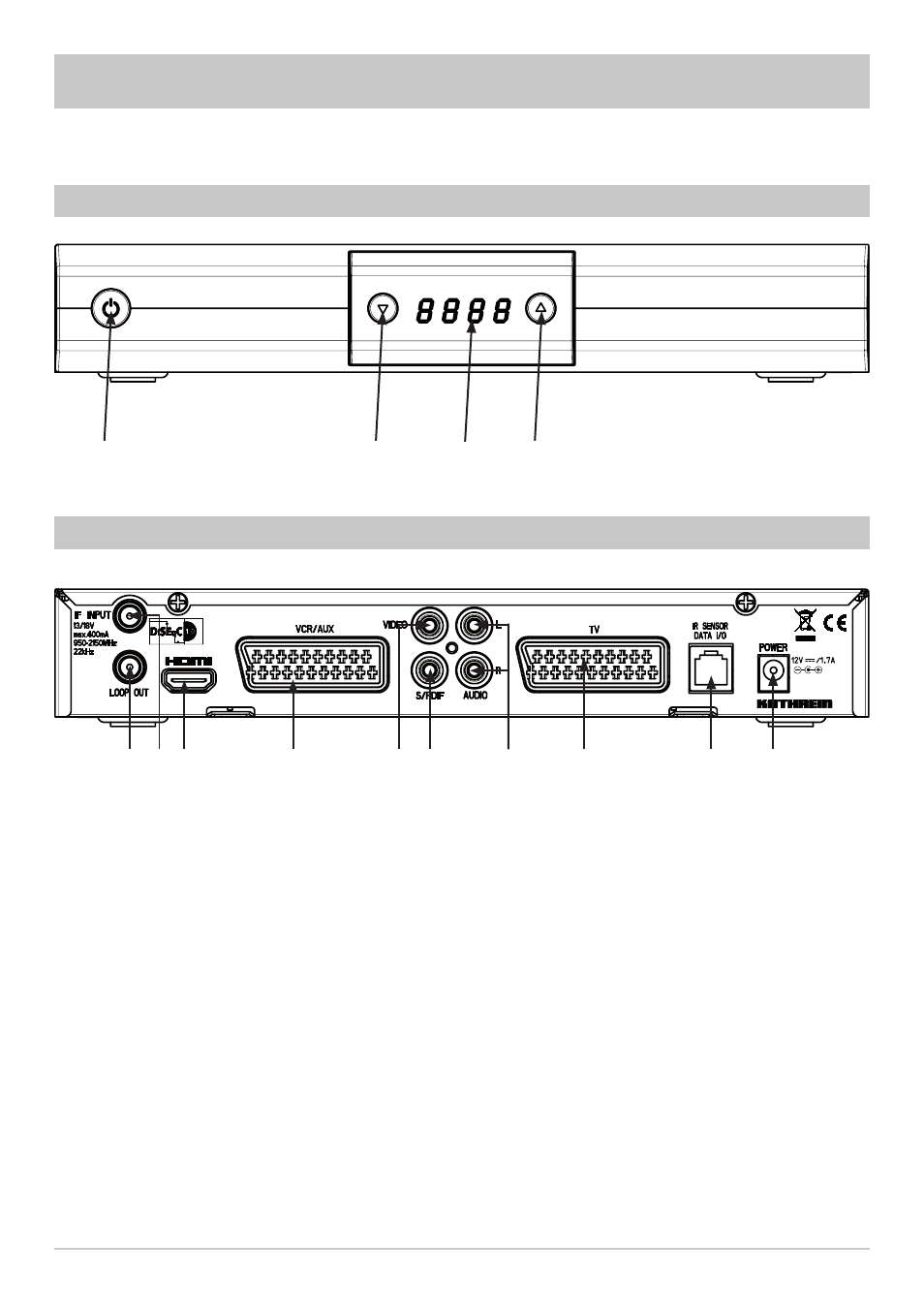

VIEW OF FRONT PANEL (FLAP REMOVED)
VIEW OF REAR PANEL
