Keys Fitness 2 Person Sauna BS-9202 - Manual (Page 9)

3>Install the bench panel by sliding it over the horizontal bench guides on the side panels. Push the bench all
the way in until it can touch the BACK PANEL and is securely in place. Make sure of the bench position so that
the smooth and finished side of the bench are facing up and forward. ( Figure 13)

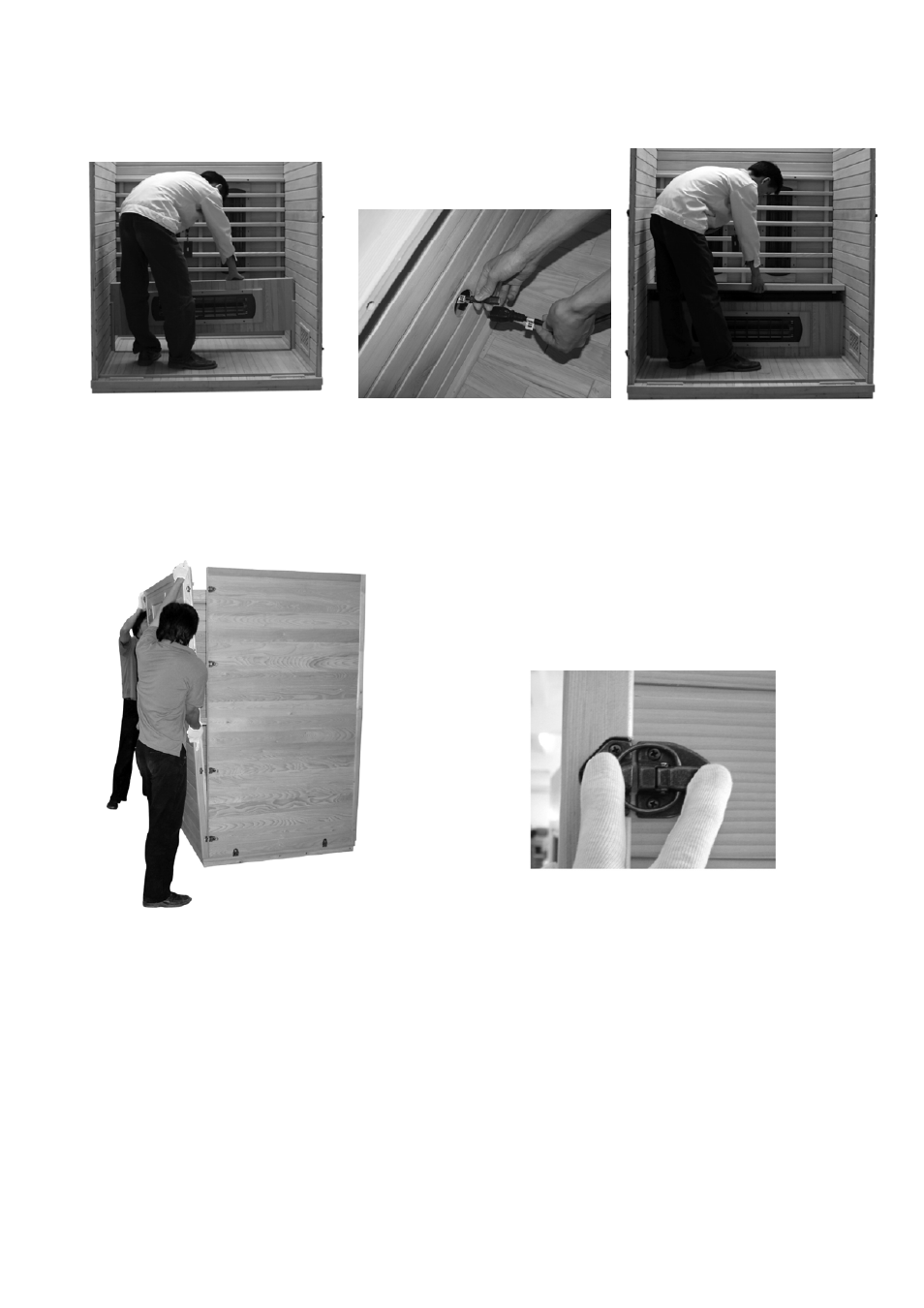

FIGURE 11 FIGURE 12 FIGURE 13
7) Connect the FRONT PANEL
Place the FRONT PANEL onto the recessed area on the BOTTOM PANEL. Align the clips with the
LEFT/RIGHT PANEL and secure in place by fastening them. (Figures 14 & 15)
Figure 14 Figure 15
8) Place the TOP PANEL
1. The side with the CONTROL BOX is the upside.
2. The CONTROL BOX is the closest to the front of the TOP PANEL. (Figure 16)
