Keys Fitness 2 Person Sauna BS-9202 - Manual (Page 8)

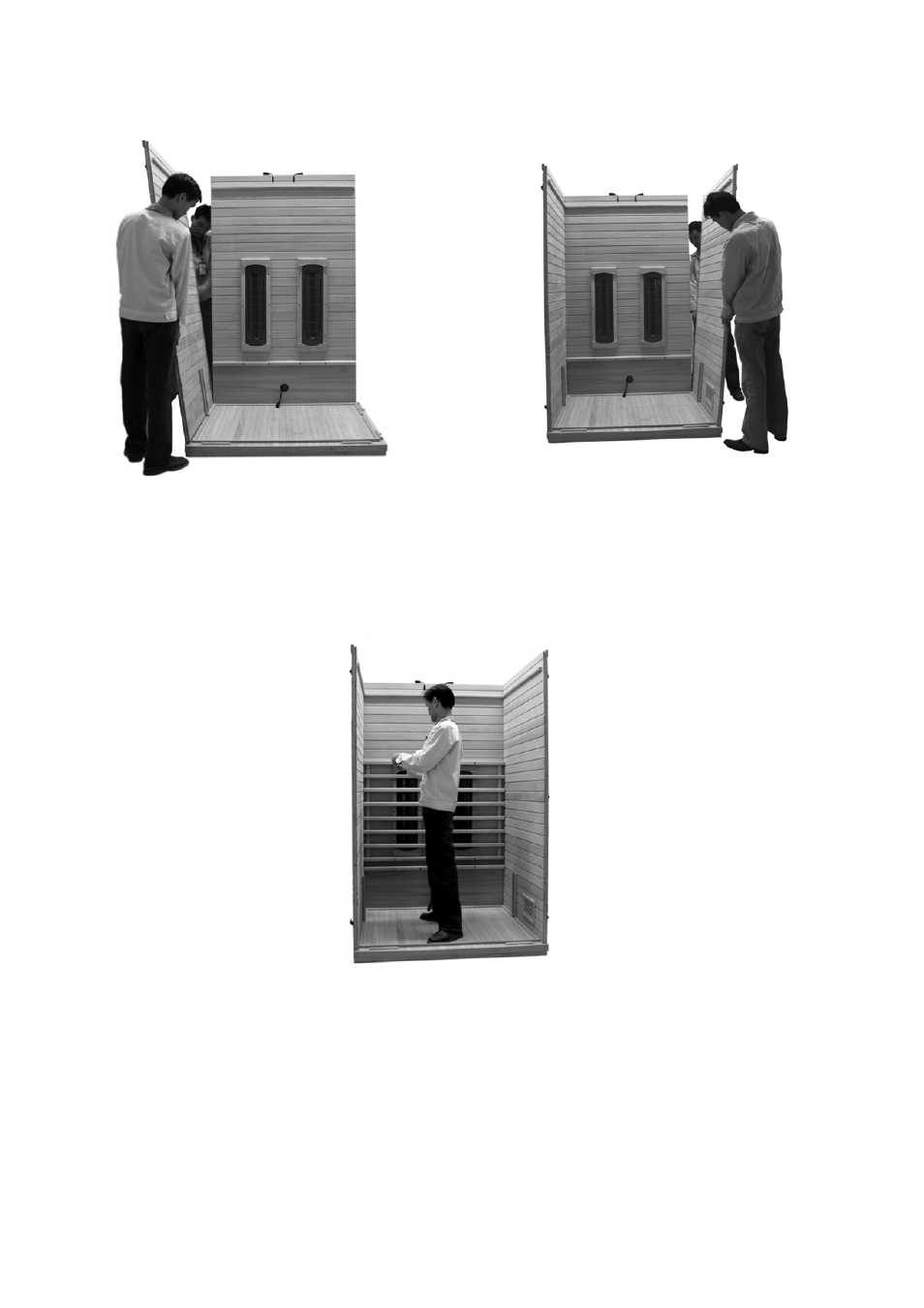

Place the LEFT PANEL on the BOTTOM PANEL in the correct direction and clamp on tightly using the draw
latch. When the LEFT PANEL stands well, install the RIGHT PANEL in the same way. (Figures 8&9 )
Figure 8 Figure 9
5
）Screw on the back protection
For better protection of your back during a sauna session, please screw the back protection rack on the Bo
ACK PANEL.(SEE FIGURE 10)
Figure 10
6) Install the bench panel, bench heater panel and plug bench heater connector under the bench
1> Slide down the bench heater panel by lining up its sides with the vertical guides on each side panel.
The heater grid is facing outward (toward the front of the sauna). Push the bench heater panel all the way
down until it is touching the BOTTOM PANEL and securely in place.( Figure 11)
2>Plug in the bench heater connector to the inlet located on the BACK PANEL. ( Figure 12)
