CTRL control panel connecting
CD/SIG signal cable group
F1, F2, FH1, FH2, FH3, FH4, F/LIGHT seven fuses (details see FORM 1)
FORM 1
Sauna Room Connections Introduction
Marking Component name to connect
POWER power cord
F1, F2 fuse
FH1, FH2, FH3, FH4 Heater fuse
F/LIGHT Reading lamp fuse
F/ROOF LAMP Roof lamp fuse (optional)
HT1, HT2, HT3, HT4 Heater power cord
LIGHT Reading lamp connector
ROOF LAMP Roof lamp connector
COLOR LAMP Color lamp connector( in some models)
CTRL Control panel connection
CD/SIG For CD/temperature sensor/buzzer etc. connection
CD-POWER CD/Radio power connector
FAN-POWER CD/radio fan power plug
ANALOG AUDIO Audio frequency signal plug

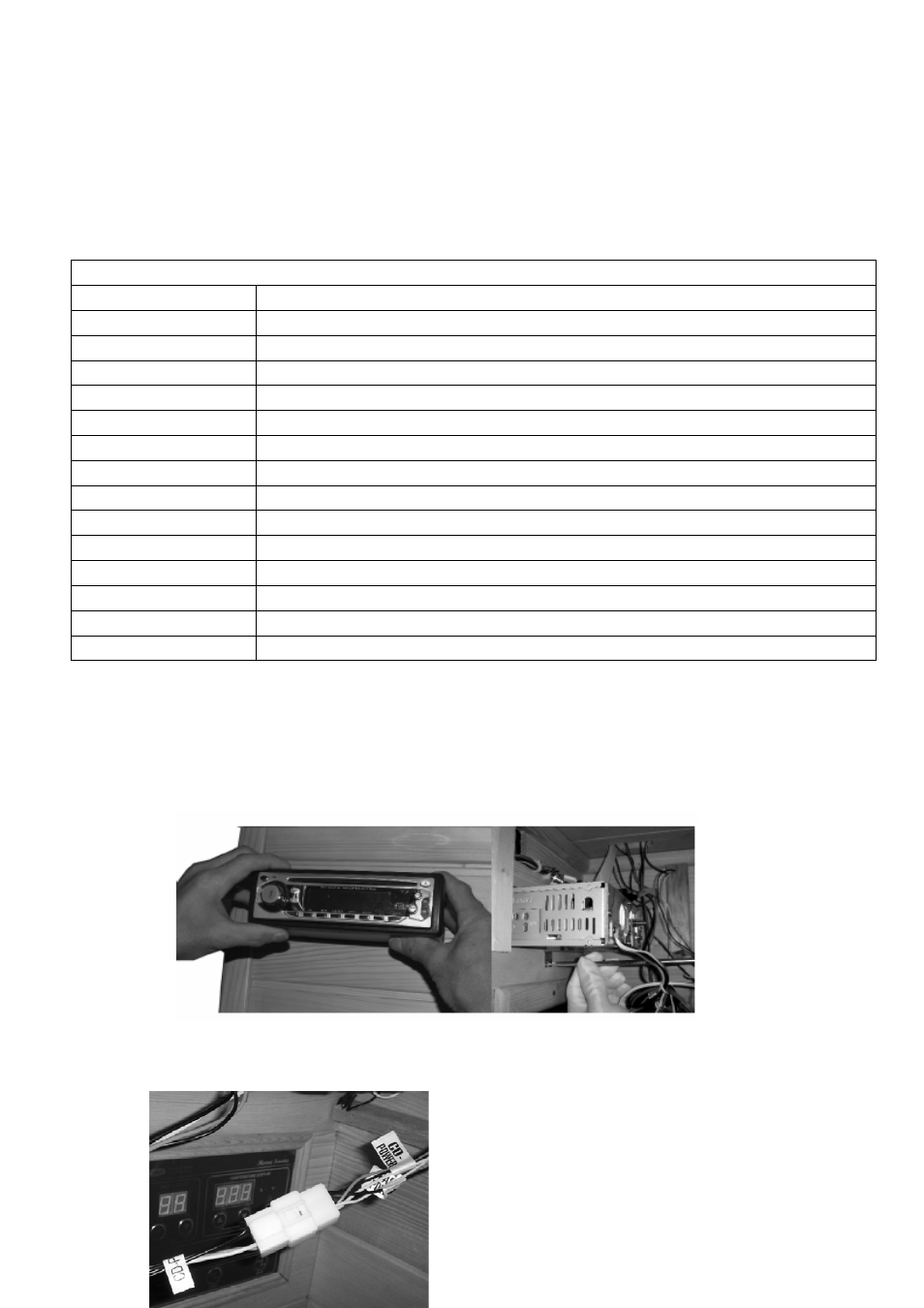

10) Install the CD/Stereo radio
1. Remove the two screws from the top of the CD player and discard. (not necessary for JVC
brand CD/radio stereo), Put in the CD/radio from the outside.
2. Attach the bracket using the screw provided. (Figure 27)
FIGURE 27
3.
Plug in the CD/radio power. (Figure 28)
4. Plug the L/speaker and R/speaker connectors. (Figures 29
& 30)
5.
Plug in the CD/radio antenna faucet. (Figure 31)
