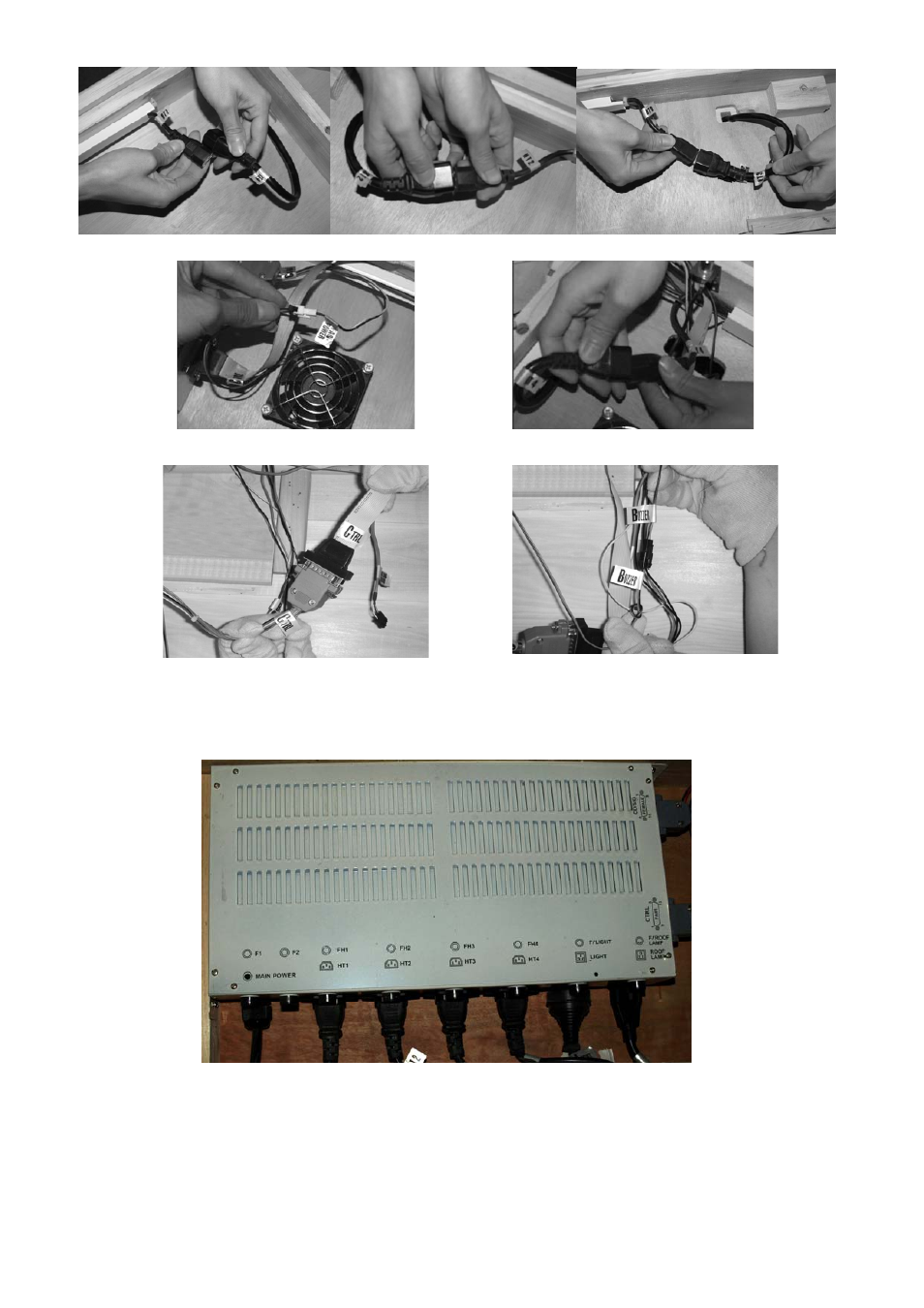

FIGURE 19 FIGURE 20 FIGURE 21
FIGURE 22 FIGURE 23
FIGURE 24 FIGURE 25
The CONTROL BOX is the control centre of the sauna room, it is installed on the TOP PANEL, with the
input/output connections as below. (Figure 26)
FIGURE 26
MAIN POWER main power of the sauna room
HT1, HT2, HT3, HT4 heaters power output cable
LIGHT reading lamp power output cable
ROOF LAMP roof lamp power output cable (in some models)
