4.5 Replacing the Antenna Gyro
Assembly
1. Remove the PCB cover, as explained in “Removing
the PCB Cover” on page 54.
2. Remove the four screws, four washers, and the
counterweight from the end of the antenna gyro
(see Figure 4-6).
3. Using a 3 ⁄
8
" nut driver/socket, remove the four
standoffs securing the antenna gyro to the reflector
bracket (see Figure 4-6). Slide the tie-wrap, which
secures the antenna gyro cable, off the bottom
right standoff.
4. Remove the 3 tie-wraps securing the gyro cable to
the RF cables (see Figure 4-1 on page 53).
5. Disconnect the antenna gyro Molex connector
from the main PCB (see Figure 4-3 on page 55).
Remove the old antenna gyro assembly.
54-0166 58
TracVision 6 Technical Manual

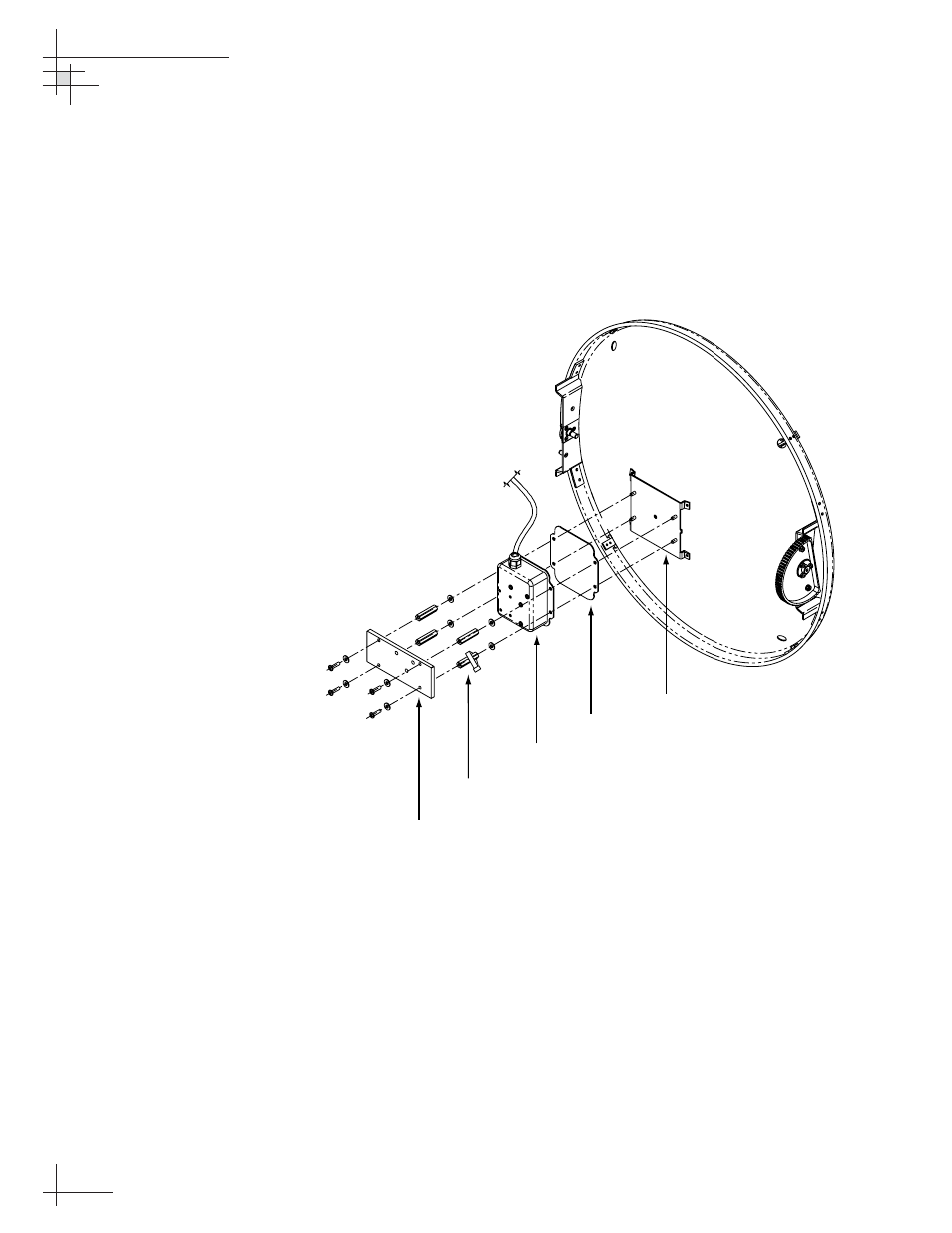

Counterweight
Standoffs
Gyro
Gasket
Bracket
Figure 4-6
Replacing the Antenna Gyro
Assembly
