450 XC ATV 2008

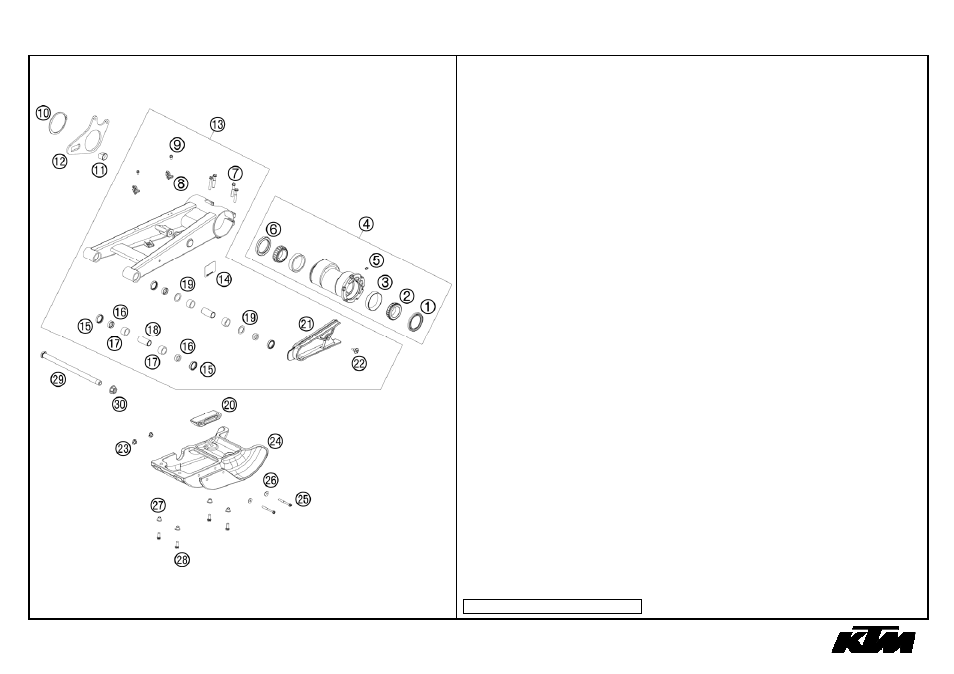

FIG PART NUMBER DESCRIPTION QTY
1 83010040053 SHAFT SEAL RING 2"X2,75"X0,25" 1
2 83010040051 INNER RING 32008 2
3 83010040050 OUTER RING 32008 2
4 83010040033 REAR WHEEL EXCENTRIC CPL. 1
5 72003035000 GREASE FITTING M6 STRAIGHT 1
6 83010040052 SHAFT SEAL RING 2"X2,75"X0,313 1
7 0025080456 HH COLLAR SCREW M8X45 TX40 4
8 5461107610030 RET. CLAMP F. BRAKE HOSE BLACK 2
9 0009050103 SPECIAL SCREW M 5,0X10 2
10 0471780250 CIRCLIP DIN 471 78X2,5 1
11 83013052000 BRAKE THRUST BEARING 1
12 83013046100 BRAKE CALIPER SUPPORT PLATE 1
13 83004030044 SWING ARM CPL. 2008 1
14 83004030090 STICKER FOR CHAIN TENSION 1
15 0760253270 SHAFT SEAL RING 25X32X7 4
16 54804034000 BUCKET F. SHAFT SEAL RING 03 4
17 58033097000 NEEDLE BEARING HK 2216 4
18 54804032000 BUSHING SLEEVE F. SWING ARM 03 2
19 54603036000 STOP DISK 22,2X31,7X1 2
20 83004070000 CHAIN GUIDE 1
21 83004066000 CHAIN SLIDING GUARD 1
22 60035001000 SCREW RADIATOR BRACKET M6 03 1
23 83004046060 DRIVE-IN NUT FOR GUARD 2
24 83004046000 ASM-GUARD 1
25 0025060556 HH COLLAR SCREW M6X55 TX30 2
26 0021060003 WASHER DIN9021-A 6,4 2
27 83004046050 BUSHING F. SWINGPROTECTION 4
28 0025080206 HH COLLAR SCREW M8X20 TX40 4
29 83004037000 SWING ARM BOLT 1
30 54804038000 SELF LOCK.NUT M16X1,5 WS=19 03 1
088300490 / C088300490 * NEW PART X AS REQUIRED
7
SWING ARM
