Tank, Seat, cover – KTM 450 XC ATV 2008 User Manual
Page 12

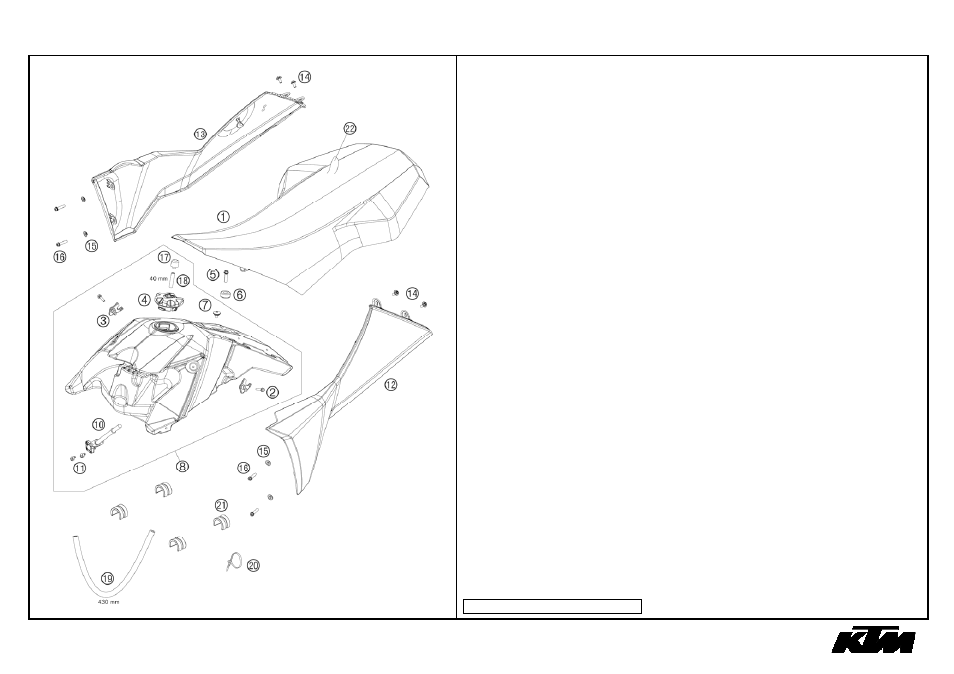

450 XC ATV 2008
FIG PART
NUMBER
DESCRIPTION
QTY
1 83007040000
SEAT ATV
1
2 0014050203
HH COLLAR SCREW M 5X20 WS=6
2
3 83007013050
SPOILER BRACKET
2
4 78007008044
TANK PLUG CPL. EXC 08
1
5 0025060166
HH COLLAR SCREW M6X16 TX30
1
6 50307014000
TANK ROLLER 12X26X12 '98
1
7 58407011100
SCREW FOR SEAT M6X11,5/8
1
8 8300701303330
FUEL TANK CPL.
1
10 58307105200
FUEL COCK CPL. OFF-ON-RES
1
11 0014050123
HH COLLAR SCREW M 5X12 WS=6
2
12 8300805000030
RADIATOR SPOILER L/S BLACK
1
13 8300805100030
RADIATOR SPOILER R/S BLACK
1
14 0024060106
HH COLLAR SCREW M6X10 TX30
4
15 50308053000
BUSH FOR SPOILER 6X11X16X7,5
4
16 0025060206
HH COLLAR SCREW M6X20 TX30
4
17 83007030000
BLEEDING STUBBLE
1
18 58307016001
FUEL HOSE VITON 6X1,5 PER/M
x
19 83007016000
FUEL HOSE
1
20 44011076200
CABLE TIE 200/3,6MM BLACK
x
21 61007014000
SPACER FUEL TANK 05
4
22 83007040050
SEAT COVER
1
088300710 / C088300710
* NEW PART
X AS REQUIRED
10
TANK,
SEAT, COVER
