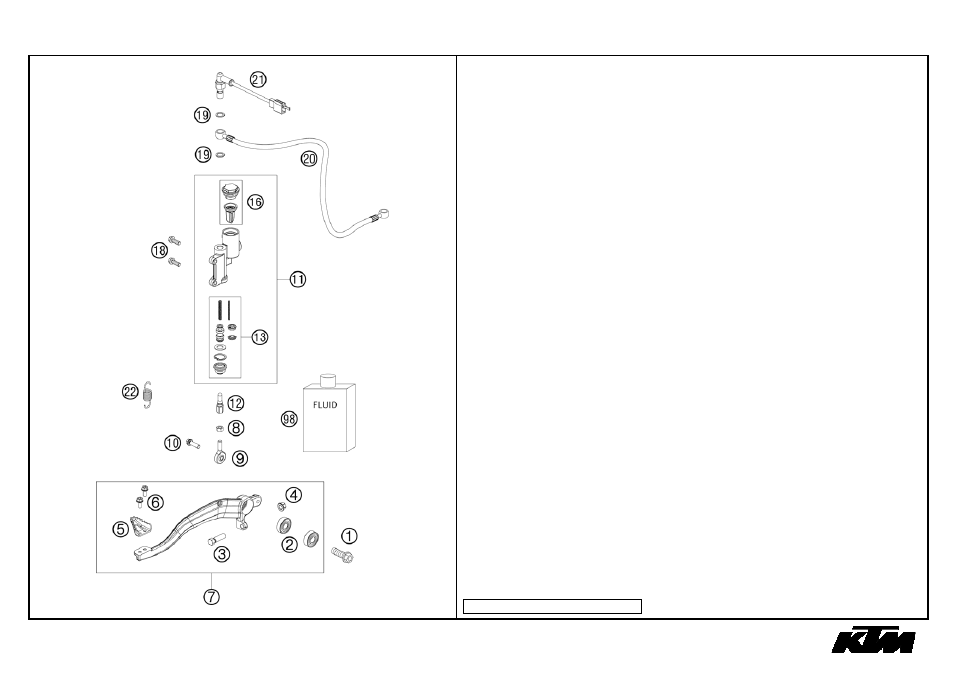

Rear, Brake control – KTM 450 XC ATV 2008 User Manual
Page 19
450 XC ATV 2008
FIG PART
NUMBER
DESCRIPTION
QTY
1 0025100306
COLLAR SCREW M10X30 TX
1
2 0625060002
BALL BEARING SKF 6000-2RS1
2
3 59001037000
SPECIAL SCREW M8X26 WS=10
1
4 46030045000
COLLAR NUT M8 WS=10
1
5 60013051000
STEP PLATE FOOT BRAKE LEVER 03
1
6 0025050126
HH COLLAR SCREW M5x12 TX30
2
7 83013050044
FOOT BRAKE LEVER CPL. ATV
1
8 0985060003
SELF LOCK. NUT DIN0985-M 6
1
9 54813055000
SWIVEL HEAD KA6 03
1
10 0025060206
HH COLLAR SCREW M6X20 TX30
1
11 83013060000
FOOT BRAKE CYL. MAGURA 13MM
1
12 83013056000
PUSH ROD
1
13 83013061000
REPAIR KIT PISTON MAGURA 13 MM
1
16 83013062000
COVER, MEMBRANE MAGURA
1
18 0025060166
HH COLLAR SCREW M6X16 TX30
2
19 59413013050
COPPER GASKET
2
20 83013070000
BRAKE HOSE REAR 630MM
1
21 50311051100
BRAKE LIGHT SWITCH REAR '98
1
22 83003062000
RETURN SPRING F. BRAKE LEVER
1
98 00062030000
BRAKE FLUID DOT5.1 0,25L
1
088301330 / C088301330
* NEW PART
X AS REQUIRED
17
REAR
BRAKE CONTROL
