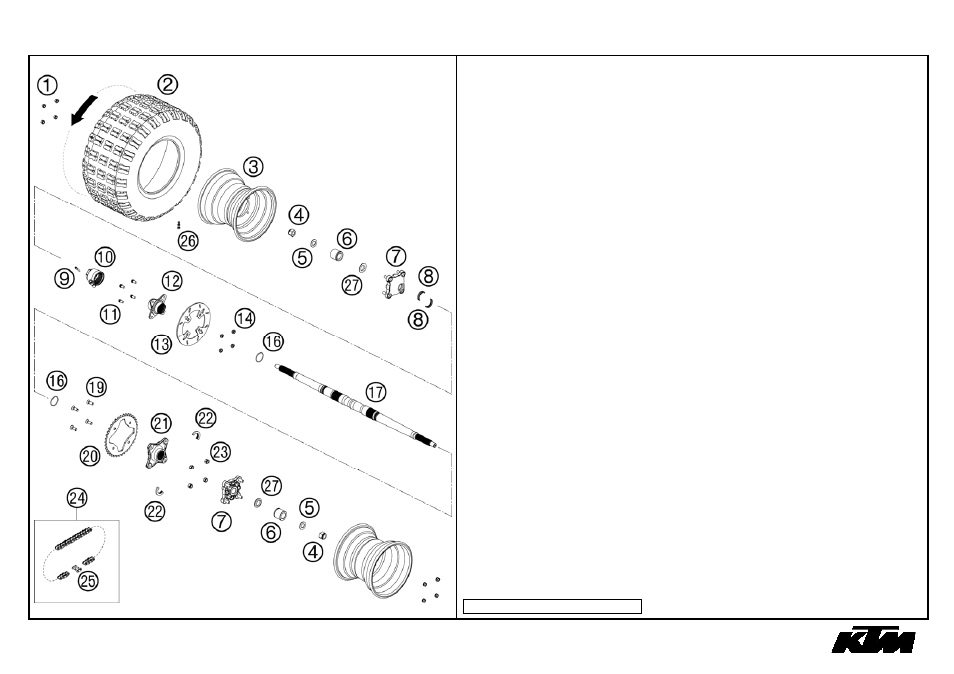

Rear, Wheel – KTM 450 XC ATV 2008 User Manual
Page 16
450 XC ATV 2008
FIG PART
NUMBER
DESCRIPTION
QTY
1 58414030000
HH COLLAR NUT M10X1,25 WS=13
8
2 83010074000
TIRE REAR 20X11-9 4PR
2
3 83010070000
RIM REAR 8X9"
2
4 0985181503
SELF LOCK.NUT DIN0985-M18X1,5
2
5 0125190003
WASHER DIN0125 A 19
2
6 83010013000
SPACER BUSHING
2
7 83010069044
REAR WHEEL HUB CPL.
2
8 83010063000
CIRCLIP REAR AXLE
2
9 0912060303
AH SCREW DIN0912-M 6X30
1
10 83010064000
TENSION NUT
1
11 0025080166
HH COLLAR SCREW M8X16 TX40
4
12 83010062000
BRAKE DISK SUPPORT 08
1
13 83010060000
BRAKE DISK REAR D=200 MM
1
14 83010060050
SPECIAL NUT BRAKE DISK FIXING
4
16 0770039026
O-RING 39,34X2,62 NBR 70 SH
2
17 83010016000
REAR WHEEL AXLE
1
19 60003004027
FL.HEAD SCREW M10X1,25 L=27 03
4
20 83010051038
SPROCKET 38T
x
21 83010050000
SPROCKET SUPPORT 08
1
22 83010063100
CIRCLIP REAR AXLE SPROCKET
2
23 0982101253
SELF LOCK.NUT M10X1,25
4
24 50310800118
CHAIN Z-RING 5/8X1/4"
1
25 50310366000
CONNECTING LINK F. 50310800118
1
25 50310866000
MASTER LINK FOR 50310800118
x
26 83009076000
VALVE
2
27 83010014000
CONUSRING REAR AXLE
2
088301010 / C088301010
* NEW PART
X AS REQUIRED
14
REAR
WHEEL
