KTM 450 XC ATV 2008 - Manual (Page 26)

450 XC ATV 2008
FIG PART NUMBER DESCRIPTION QTY
1 83061006000 WHEEL CARRIER R/S CPL. 1
2 83061005000 WHEEL CARRIER L/S CPL. 1
3 0982101253 SELF LOCK.NUT M10X1,25 6
4 83061005025 SELF LOCK.NUT M12X1,5 2
6 83061010044 TRACK RODS CPL. 2
7 83061001050 BALL HEAD M10X1,25 2
8 83061003044 A-ARM TOP R/S XC CPL. 1
9 83061001044 A-ARM TOP L/S XC CPL. 1
10 0471320150 CIRCLIP DIN0471-32X1,5 2
11 83061001025 SPACER BUSHING F. BALLJOINT 8
12 83061001051 SWIVEL HEAD 4
13 0936120123 HEXAGON NUT DIN 936 M12x1,25 4
14 0023100523 COLLAR SCREW M10X52 TX 4
15 83061004044 A-ARM DOWN R/S XC CPL. 1
16 83061002044 A-ARM DOWN L/S XC CPL. 1
17 0471350150 CIRCLIP DIN0741-35X1,5 2
18 83061002050 BALL HEAD M12X1,5 2
19 83061034000 BUCKET F. SHAFT SEAL RING 8
20 0023100703 COLLAR SCREW M10X70 TX 4
21 0760172660 SHAFT SEAL RING 17X26X6 8
22 83061015000 STOP DISK 15,2X25,7X1 4
23 83061079000 NEEDLE BEARING HMK 1515 8
24 83061032000 BUSHING SLEEVE F. A/ARM 4
088306110 / C088306110 * NEW PART X AS REQUIRED
24

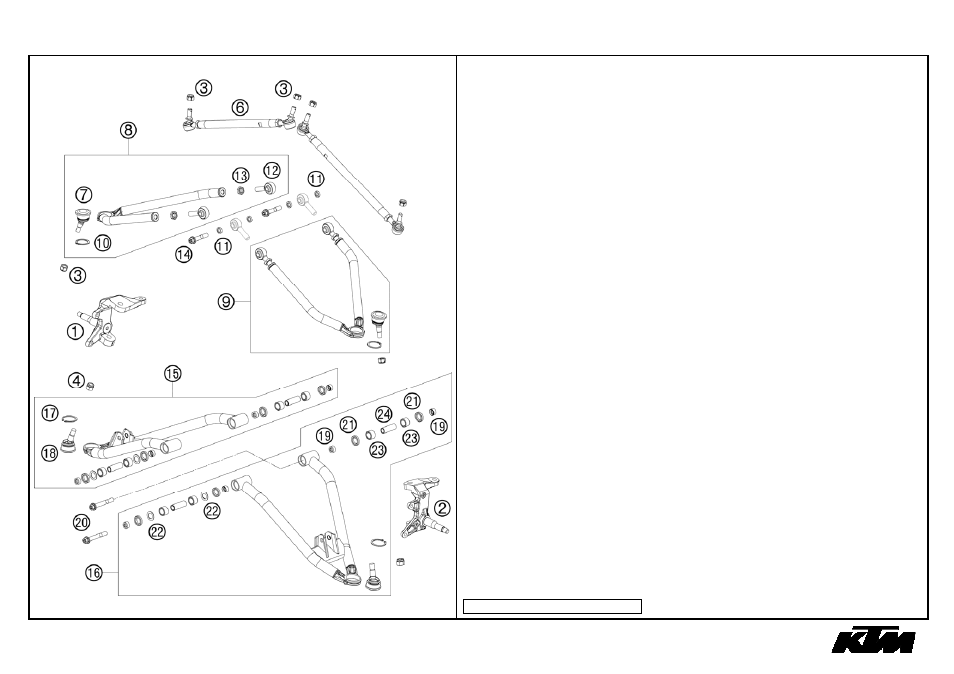

FRONT SECTION
