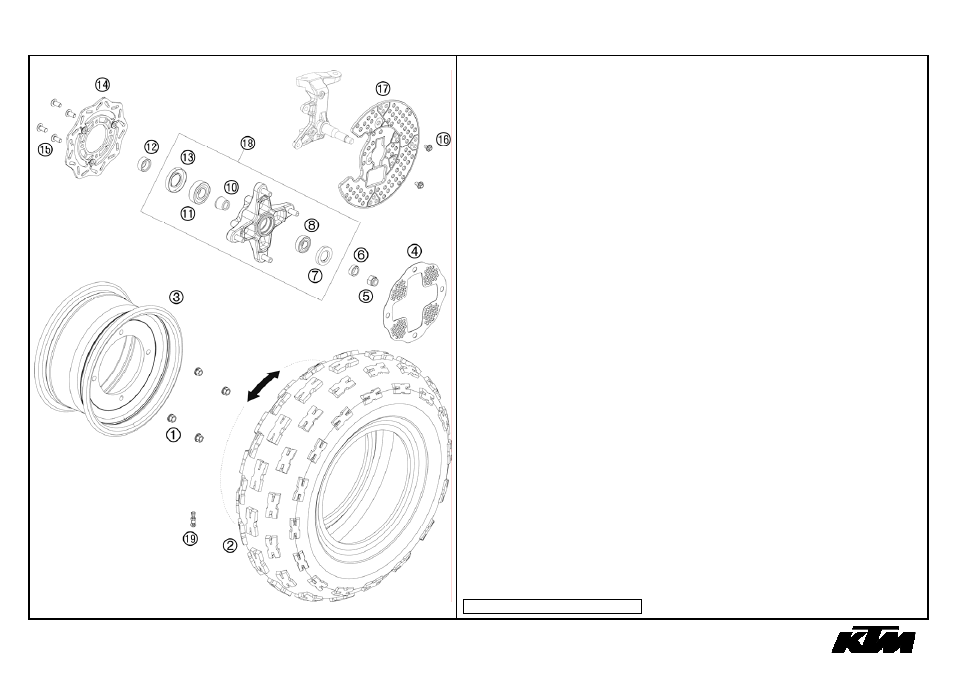

Front, Wheel – KTM 450 XC ATV 2008 User Manual
Page 15
450 XC ATV 2008
FIG PART
NUMBER
DESCRIPTION
QTY
1 58414030000
HH COLLAR NUT M10X1,25 WS=13
8
2 83009074000
TIRE FRONT 21X7X10 4PR
2
3 83009070000
RIM FRONT 10X5-5
2
4 83009066000
OUTER BRAKE DISK PROTECTOR
2
5 0985120003
SELF LOCKING NUT DIN0985-M12
2
6 83009013000
SPACER BUSHING
2
7 0760224070
SHAFT SEAL RING BSL 22X40X7NBR
2
8 0625062028
BALL BEARING 6202-2RSH/C3
2
10 83009014000
BEARING SPACER BUSHING
2
11 0625062047
BALL BEARING 6204-2RSH/C3
2
12 83009015000
SPACER BUSHING
2
13 0760285270
SHAFT SEAL RING BSL 28X52X7NBR
2
14 83009060000
BRAKE DISK
2
15 0738080166S
FLAT HEAD SCREW ISO7380 M8X16
8
16 0025080206
HH COLLAR SCREW M8X20 TX40
4
17 83009065000
BRAKE DISK PROTECTOR
2
18 83009010044
FRONT WHEEL HUB CPL. SP 2008
2
19 83009076000
VALVE
2
088300910 / C088300910
* NEW PART
X AS REQUIRED
13
FRONT
WHEEL
