108
REPLACING THE CLOCK BACKUP BATTERY
The clock in this camera uses a 3V lithium battery (CR2025). If this battery is
exhausted the clock settings in the camera will be lost when the main camera batter-
ies are removed.

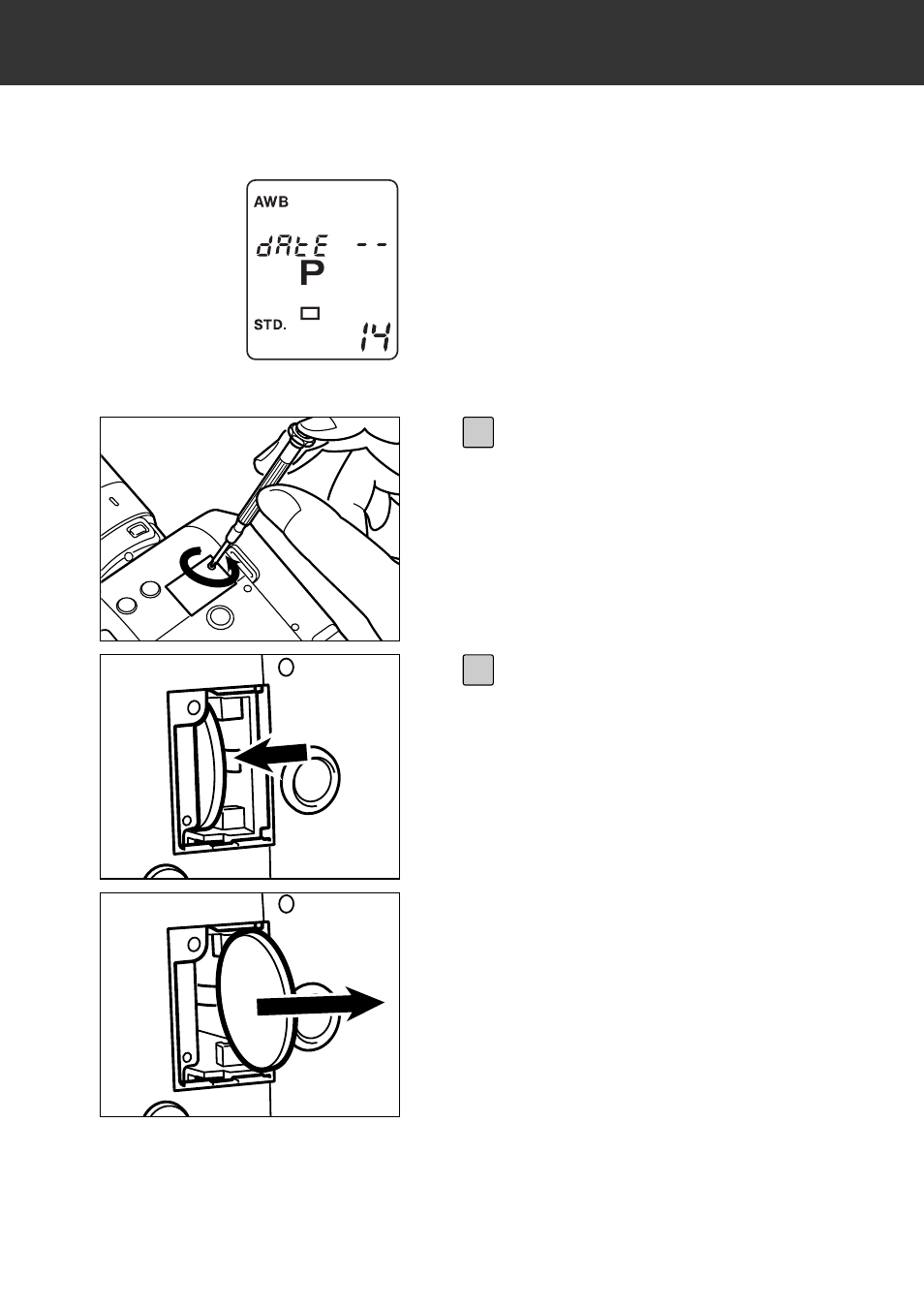

If this battery is exhausted the display at left
appears on the data panel when camera
power is switched on, or when the shutter
button is lightly pressed. In this case,
replace the clock backup battery as
described below.
Remove the screw from the clock
battery cover with a small
Phillips screwdriver, and open it.
1
Remove the old battery.
• Push the battery out of the recess
slightly (diagram at top left) and
remove it (diagram at bottom left).
2
