Model External Fuse Power/Ground Wire KICKER Wiring Kit
ZX350.4 1 x 40 Ampere 8 Gauge PK8, CK8, ZCK8
ZX650.4 1 x 80 Ampere 4 Gauge PK4, CK4, ZCK4
the source unit and connect the wire to the RCA Inputs on the end panel of the amplifi er or simplify the installation
by using a KICKER ZISL as shown below. Keep the audio signal cable away from factory wiring harnesses and
other power wiring. If you need to cross this wiring, cross it at a 90 degree angle.

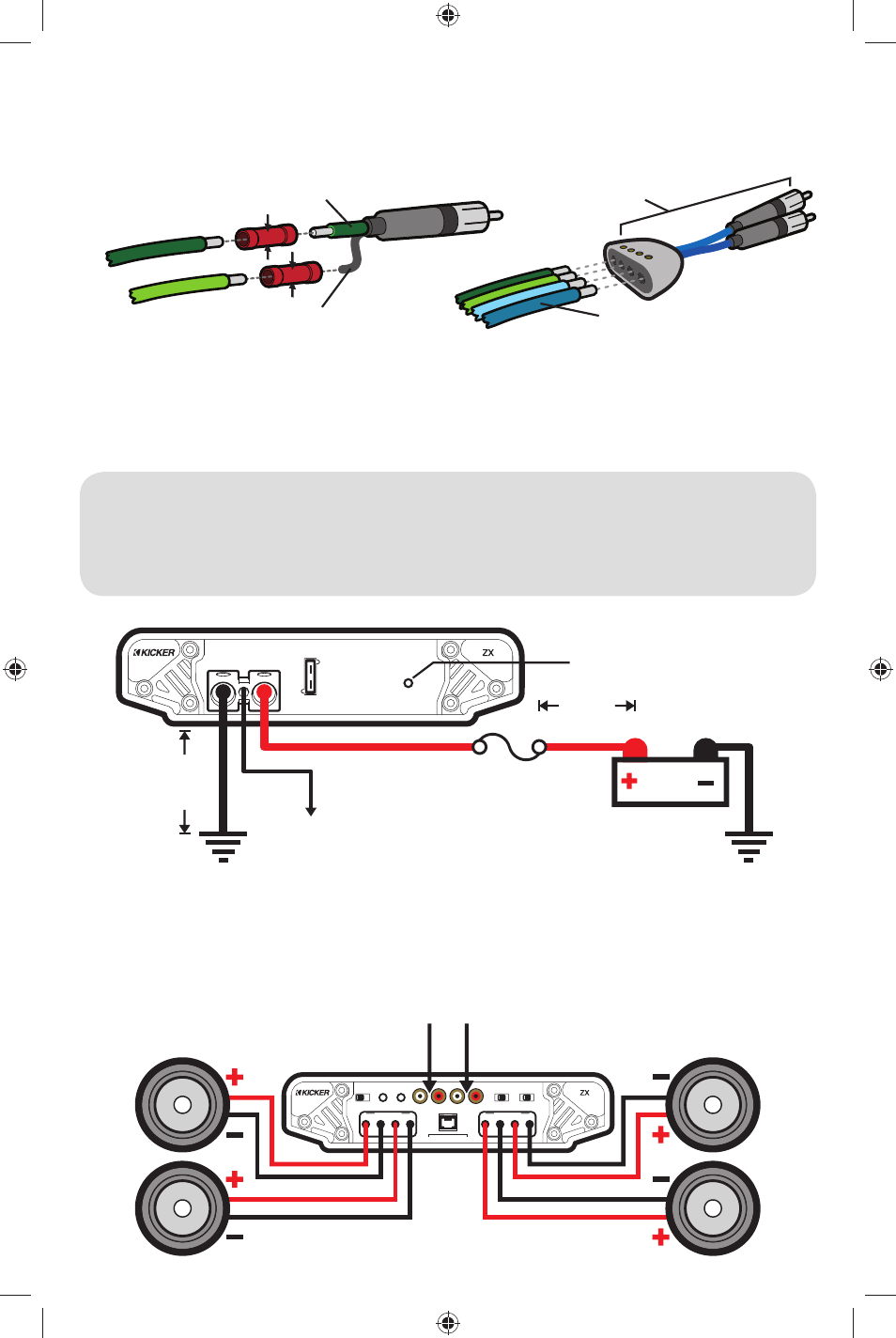

source unit
high-level speaker
outputs
to amplifi er
shield
+
–
core conductor
GND REM +12V
12V
battery
external fuse
protection LED
remote turn-on
(see page 5)
bare-metal
chassis ground
18”
(45cm)
24”
(60cm)
AMP1
AMP1
L+ L- R+ R-
AMP2
L+ L- R+ R- L+ BRIDGE WIRING R-
AMP2
L L R R
L+ L- R+ R- L+ L- R+ R-
signal in
FOUR CHANNEL OPERATION
minimum impedance of 2 ohms per channel
Install a fuse within 18” (45cm) of the battery and in-line with the power cable connected to your amplifi er. If you
ever need to remove the amplifi er from the vehicle after it has been installed, the ground wire should be the last
wire disconnected from the amplifi er--just the opposite as when you installed it.
