Remove the process unit protective cover – Kyocera FS-680 User Manual
Page 32
Chapter 1 Installing the Page Printer
1- 13

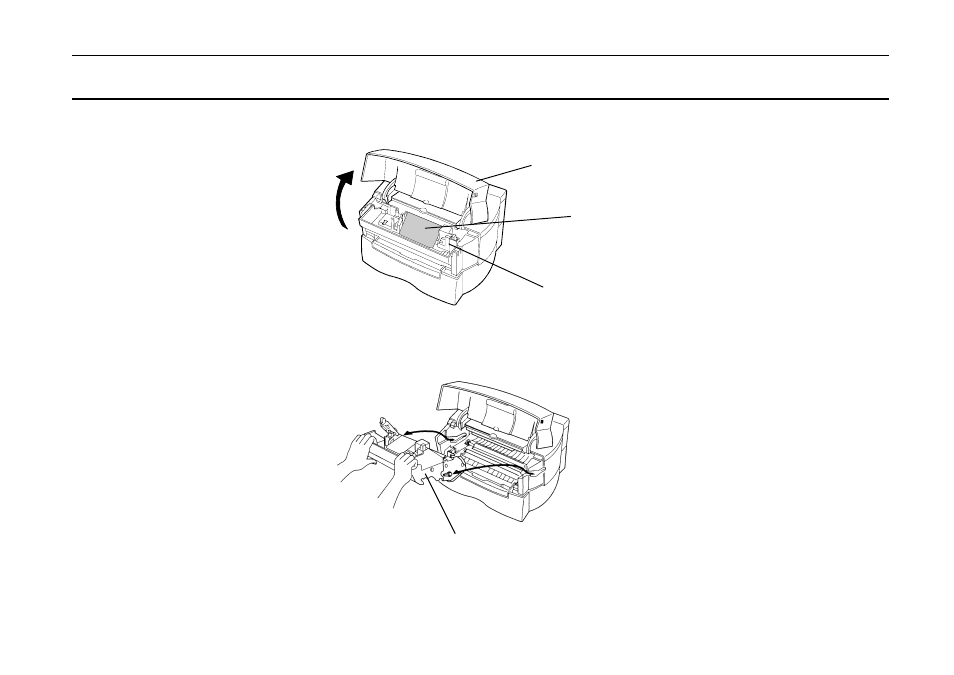

2. Remove the process unit protective cover.
1. Open the printer top cover all the way.
2. Lift the process unit out of the printer. The drum in the process unit is sensitive to light. Do
not expose the drum even to normal office lighting (500lux) for more than five minutes.
Top Cover
Process Unit
Process Unit
Protective Cover
Process Unit
