12 EN

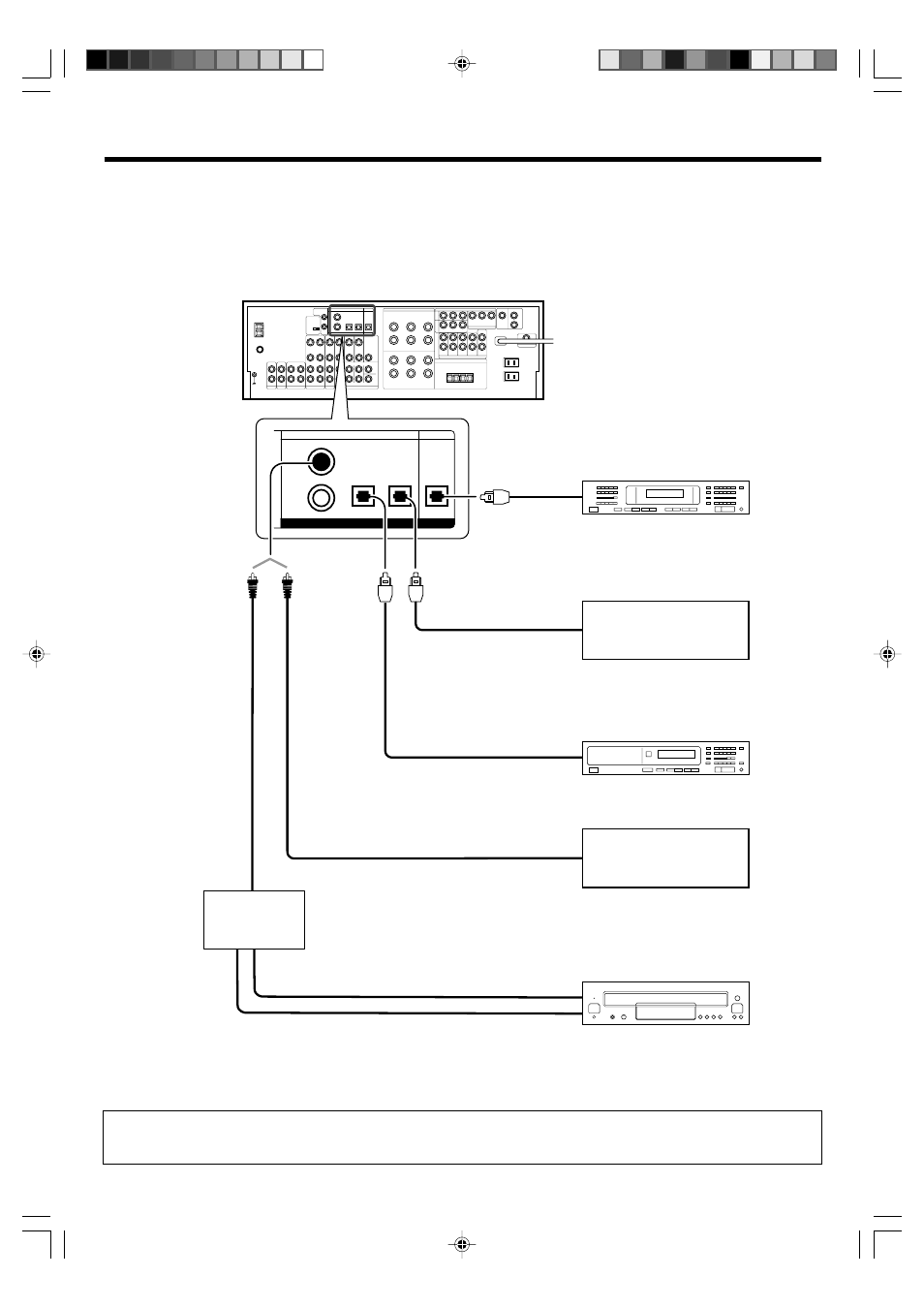

Digital connections
The digital in jacks can accept DTS, Dolby Digital, or PCM signals. Connect components capable of outputting DTS, Dolby Digital, or standard PCM (CD)
format digital signals.
If you have connected any digital components to the receiver, be sure to read the “Input mode settings” section carefully.
9
Setting up the system
To connect an LD player with a DIGITAL RF OUT, connect the LD player to the KENWOOD RF digital demodulator (DEM-9991D).
Next, connect the DIGITAL OUT jacks of the demodulator to the DIGITAL IN jacks of the receiver.
Connect the video signal and analog audio signals to the VIDEO 2 or VIDEO 3 jacks. (See “Connecting video components”.)
COAXIAL OPTICAL OPTICAL
VIDEO 3
OPTICAL
MONITOR CD/DVD
DIGITAL IN DIGITAL OUT
DVD/
6CH
VIDEO
2
COAXIAL
DIGITAL
OUT
(AUDIO)
Connect the video signal and digital
audio signals to the
VIDEO 3 jacks.
(See “Connecting video components”.)
!
DOLBY DIGITAL RF OUT (AUDIO)
OPTICAL DIGITAL OUT (AUDIO)
LD player
PCM OUT
Component with DTS,
Dolby Digital, or PCM
OPTICAL DIGITAL OUT
RF digital
demodulator
(DEM-9991D)
(sold separately)
MD player
OPTICAL DIGITAL IN (AUDIO)
Optical fiber cable
Component with DTS,
Dolby Digital, or PCM
COAXIAL DIGITAL OUT
COAXIAL DIGITAL OUT (AUDIO)
Connect the video signal and analog
audio signals to the
VIDEO 2 jacks.
(See “Connecting video components”.)
!
CD or DVD player
OPTICAL DIGITAL OUT (AUDIO)
Optical fiber cable
Optical
fiber cable
